Mercedes A9452681046 - SCHALTSEGMENT

G 211-16 715.511 GETRIEBETEILE

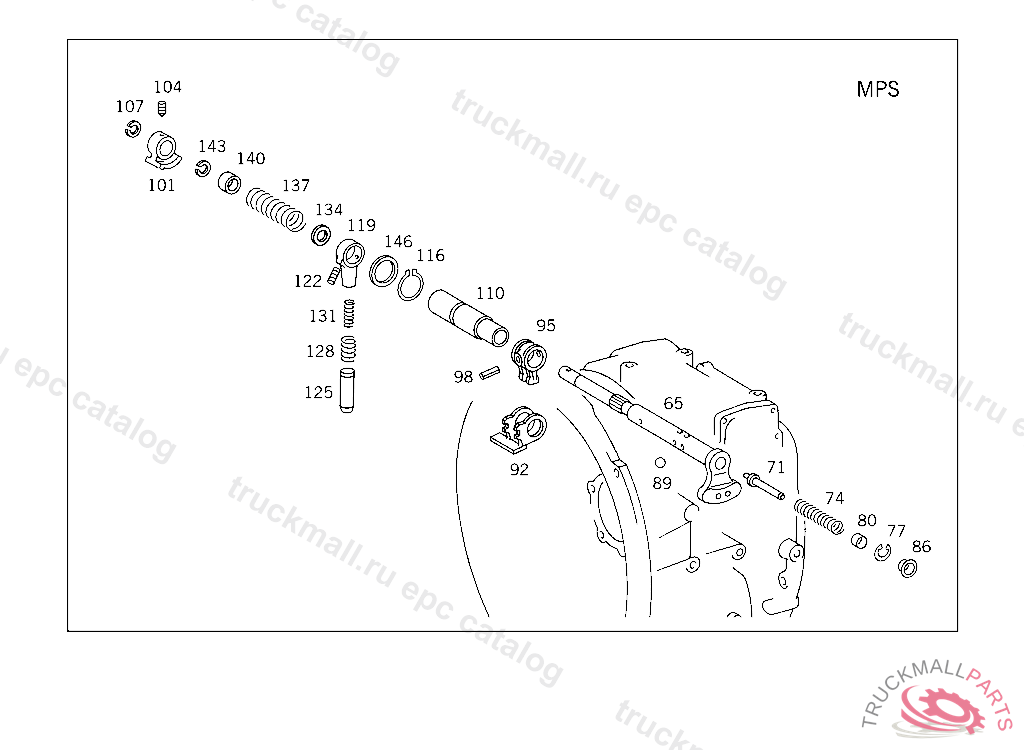

26 TRANSMISSION,16-SPEED - 250 SHIFTING ROD,SHIFTING PARTS IL. 2

Поз.
Артикул
Описание
71
A9452681474
PIN SHIFTING ROD TO HOUSING
74
A9459933901
SPRING SHIFTING ROD TO HOUSING
74
A9459934101
SPRING SHIFTING ROD TO HOUSING
80
A9452682250
BUSHING SHIFTING ROD TO HOUSING
89
N005401312000
BALL SHIFTING ROD
92
A9452680216
PAWL SHIFTING ROD
92
A9452680516
PAWL SHIFTING ROD
95
A9452680233
SHIFTING FINGER SHIFTING ROD
98
N000000000134
ROLL PIN SHIFTING ROD
101
A9452682046
SHIFT SEGMENT
101
A9452681046
SHIFTING SEGMENT 3/2-WAY VALVE CONTROL, Replaced By: A9452682046
104
N308748008000
CLAMPING PIN THRUST PIECE TO SHIFTING ROD
107
N912009018100
SNAP RING
116
N000471038002
LOCK RING PISTON ROD GUIDE
119
A3892680013
LEVER
122
A3899970419
THREADED PIN HOUSING REAR M10X16
125
A3892682374
PIN GEAR INTERLOCK
125
A9452682074
PIN GEAR INTERLOCK
125
A3892682474
PIN GEAR INTERLOCK, Replaced By: A9452682074
125
A3892682974
PIN GEAR INTERLOCK, Replaced By: A9452682074
128
A3899938501
SPRING GEAR INTERLOCK
134
A3872681076
WASHER SHIFTING TUBE
137
A9459930601
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A9769930801
143
N912009028200
SNAP RING
146
A9762680076
WASHER SHIFTING TUBE
