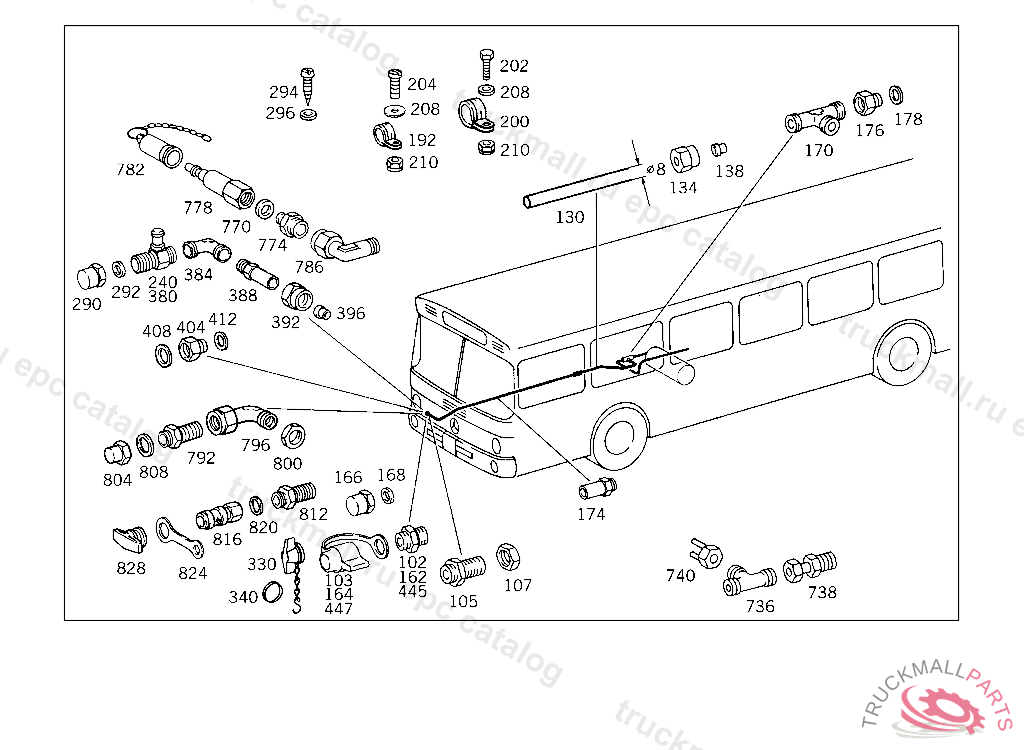

Поз.
Артикул
Описание
102
FITTING DELIVERY LINE TO PUMP
103
PLUG
105
FITTING DELIVERY LINE TO FRAME
105
FITTING DELIVERY LINE TO FRAME
105
FITTING FITTING TO SUBSTRUCTURE
107
NUT BRACKET TO SIDE MEMBER
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
130
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
134
UNION NUT LINE CONNECTION
138
GLAND LINE CONNECTION
162
BULKHEAD FITTING BRAKE LINE COUPLING TO BRACKET
162
FITTING , Replaced By: A0029906071
162
TS DOUBLE FITTING SOLENOID VALVE
164
PLUG
166
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
168
LOCKING CONE BULKHEAD FITTING TO BRACKET, 307.0 FROM IDENT NO. 007938,307.1 FROM IDENT NO. 007977
170
T-FITTING
170
T-FITTING
170
T-FITTING
170
T-FITTING TRAILER CONTROL VALVE,033440
170
T-FITTING
170
T-FITTING
170
T-FITTING BETWEEN THE LINES
170
T-FITTING LUBRICATING LINE TO DISTRIBUTOR
170
T-FITTING BETWEEN THE LINES
174
FITTING RELAY VALVE,CONNECTION: "10",950459
176
FITTING BRAKE LINE COUPLING,CONNECTION: "11,12"
178
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
192
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
192
CLAMP ,K 147121, Replaced By: N000000000319
200
CLAMP FROM FUEL TANK TO FUEL TANK
200
CLAMP DELIVERY AND SUCTION LINES TO FRAME
200
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
202
SCREW LICENSE PLATE TO BRACKET
202
SCREW , Replaced By: N304017006020
202
SCREW CAB FLOOR COVERING M 6X25
202
SCREW CAB FLOOR COVERING M 6X25
202
SCREW CAB FLOOR COVERING M 6X25
204
SCREW PROTECTION PLATE TO BRACKET
208
WASHER COMPRESSED AIR LINE TO BRACKET
208
WASHER COMPRESSED AIR LINE TO BRACKET
208
WASHER , Replaced By: N009021006208
210
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
210
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
210
NUT , Replaced By: N910113006001
240
TEST CONNECTION , Replaced By: A0004310731, +001A0039978472
240
TEST CONNECTION
240
TEST CONNECTION , L/LP 352/358 UP TO CHASSIS 674067
290
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
290
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
292
LOCKING CONE BULKHEAD FITTING TO BRACKET, 307.0 FROM IDENT NO. 007938,307.1 FROM IDENT NO. 007977
292
LOCKING CONE BULKHEAD FITTING TO BRACKET, 307.0 FROM IDENT NO. 007938,307.1 FROM IDENT NO. 007977
294
SHEET METAL SCREW OIL LINE MOUNTING
294
SHEET METAL SCREW , Replaced By: N007981004258
296
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
330
NUT CHECK VALVE
340
RING DRAIN VALVE TO 000 432 08 07, NOT USED
340
RING , Replaced By: A0005830296
380
TEST CONNECTION
384
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
384
ELBOW FITTING
384
ELBOW FITTING
388
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
388
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
392
UNION NUT LINE CONNECTION
392
UNION NUT LINE CONNECTION
392
UNION NUT LINE CONNECTION, Replaced By: N000000006239
396
SEAL CONE LINE CONNECTION
396
SEAL CONE LINE CONNECTION
396
GLAND , Replaced By: A0019901967
404
FITTING BRAKE LINE COUPLING,CONNECTION: "11,12"
408
SEAL RING LINE CONNECTION
412
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
445
FITTING DELIVERY LINE TO PUMP
447
PLUG
736
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
738
FITTING FITTING TO BRACKET
740
SWITCH SUPPLY PRESSURE CONTROL
770
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
774
FITTING
778
CONNECTOR
782
PROTECTIVE CAP
786
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
792
FITTING
792
FITTING DOOR I ENTRANCE
796
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
800
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
804
NUT RETURN
808
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
808
WASHER , Replaced By: N000125015019
812
FITTING QUICK-RELEASE VALVE TO BRACKET
816
CONNECTOR BULKHEAD FITTING
820
SEAL RING
824
CONNECTOR REFILLING CONNECTION
828
PLUG
828
NUT , Replaced By: A0009979486
999
VALVE CONEBOSCH
999
CONNECTOR
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
999
SPRINGTO 000 429 16 30
999
999
CLAMP , Replaced By: N916016008201
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
FITTING SHUTTLE VALVE
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
999
CABLE HARNESS FROM FUSE TO PUSH BUTTON SWITCH
