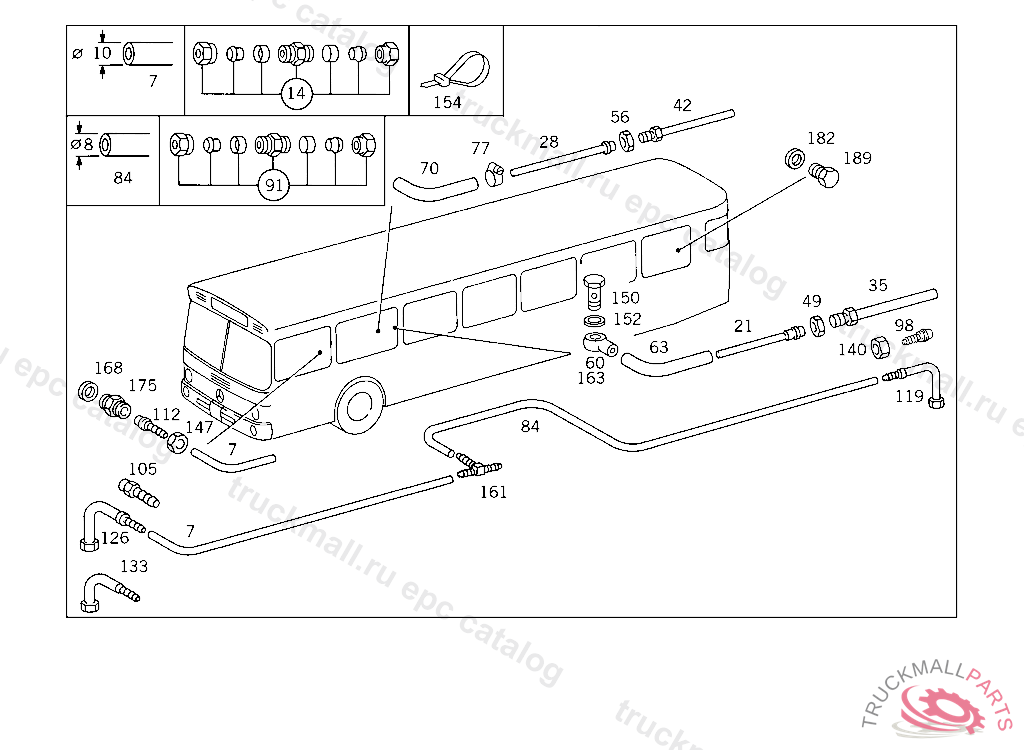

Поз.
Артикул
Описание
7
HOSETO 346 500 60 03, ORDER BY THE METER
14
FITTING (PARTS KIT),LINE RUPTURE
21
LINE FUEL FILTER,063636
28
LINE FROM FUEL-OIL TANK TO FUEL PIPING 8X1, NOT USED
28
LINE FROM FUEL-OIL TANK TO FUEL PIPING 8X1
35
LINE WITH FITTING 1000 MM
42
LINE FROM FUEL-OIL TANK TO FUEL PIPING 8X1
42
LINE FROM FUEL-OIL TANK TO FUEL PIPING 8X1
49
UNION NUT FUEL HOSE
56
UNION NUT
60
BANJO UNION , Replaced By: N000000000363
63
HOSE LEAK LINE
70
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
77
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
77
CLAMP , Replaced By: N000000000665
77
CLAMP , Replaced By: N916017011001
84
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
84
PLASTIC PIPE AERATION, ORDER BY THE METER
84
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
91
FITTING (PARTS KIT),LINE RUPTURE
91
FITTING , Replaced By: A0029905971
98
FITTING RETURN LINE
98
FITTING RETURN LINE
105
FITTING FEED LINE AND RETURN LINE
112
FITTING RETURN
112
FITTING RETURN
112
FITTING RETURN
112
FITTING RETURN
119
CONNECTOR LINE CONNECTION
119
CONNECTOR LINE CONNECTION
119
CONNECTOR LINE CONNECTION
119
CONNECTOR LINE CONNECTION
119
CONNECTOR LINE CONNECTION
126
CONNECTOR FROM FUEL TANK TO CONNECTOR I
126
CONNECTOR FROM FUEL TANK TO CONNECTOR I
126
CONNECTOR , Replaced By: A3574760024
133
ELBOW FITTING RETURN
140
UNION NUT
140
UNION NUT
147
UNION NUT FUEL HOSE
147
UNION NUT FUEL HOSE
147
UNION NUT FUEL HOSE
150
HOLLOW SCREW FUEL LINE TO FEED PUMP
150
HOLLOW SCREW , Replaced By: N915036010108
152
SEAL RINGTO 000 553 03 05,000 553 18 05,
154
LOOM TIE LINE MOUNTING
154
LOOM TIE LINE MOUNTING 280 MM
154
LOOM TIE LINE MOUNTING 280 MM
154
LOOM TIE LINE MOUNTING 280 MM
161
T-FITTING FROM FUEL TANK TO WEBASTO HEATER
163
BANJO UNION , Replaced By: N000000000363
168
SEAL RINGTO 000 553 03 05,000 553 18 05,
175
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
175
SCREW FITTING , Replaced By: A4039971172
175
DOUBLE FITTING
182
SEAL RINGTO 000 553 03 05,000 553 18 05,
189
SCREW PLUG FUEL TANK
189
SCREW PLUG , Replaced By: N007604014110
999
SEAL RING
999
CLAMP CABLE HARNESS MOUNTING
999
SHEET METAL SCREW BRACKET TO CAB,5 906887
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
CLAMP , Replaced By: N916016010211
999
CLAMP , Replaced By: N000000001045
