Поз.
Артикул
Описание

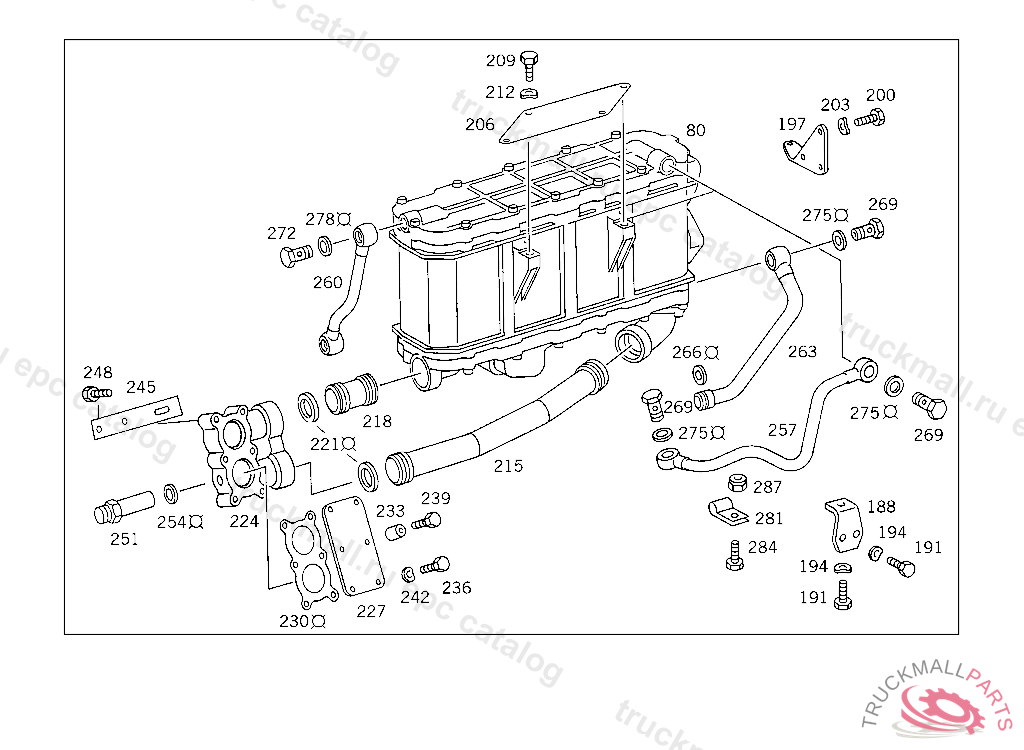

80
OIL COOLER LESS RETARDER
188
BRACKET OIL COOLER TO TRANSMISSION CASE,SIDE
191
SCREW PIPE CLAMP
191
SCREW , Replaced By: N304017008021
194
SPRING WASHER , Replaced By: N000137008212
194
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
197
BRACKET OIL COOLER TO TRANSMISSION CASE
200
SCREW PIPE CLAMP
200
SCREW , Replaced By: N304017008021
203
SPRING WASHER , Replaced By: N000137008212
203
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
206
BRACKET OIL COOLER TO TRANSMISSION CASE,TOP
209
SCREW PIPE CLAMP
209
SCREW , Replaced By: N304017008021
212
SPRING WASHER , Replaced By: N000137008212
212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
227
END COVER LESS RETARDER
230
GASKET CONNECTOR TO CONVERTER/RETARDER HOUSING
233
BUSHING COMPRESSOR TO SUPPORT,5 484924
233
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3572710153
233
SPACER TUBE , Replaced By: A6742410050
236
SCREW , Replaced By: N304017008021
236
SCREW PIPE CLAMP
239
SCREW BRACKET TO CROSS CONNECTION STRUT
239
SCREW , Replaced By: N304017008034
242
SPRING WASHER , Replaced By: N000137008212
242
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
257
LINE FROM OIL COOLER TO RETARDER,LONG
260
LINE FROM OIL COOLER TO RETARDER,SHORT
269
HOLLOW SCREW FUEL LINE TO PREFILTER
275
SEAL RING LINE CONNECTION
281
CLAMP FEED LINE TO THERMOSTAT
284
SCREW PUMP TO BRACKET
284
SCREW , Replaced By: N304017006016
287
NUT , Replaced By: N913012006001
287
NUT , Replaced By: N913019006000
287
NUT CLAMP TO BRACKET
