Главная
›
Mercedes
›
TRANSMISSION
›
ZF 5 HP 502 C
›
721.136
›

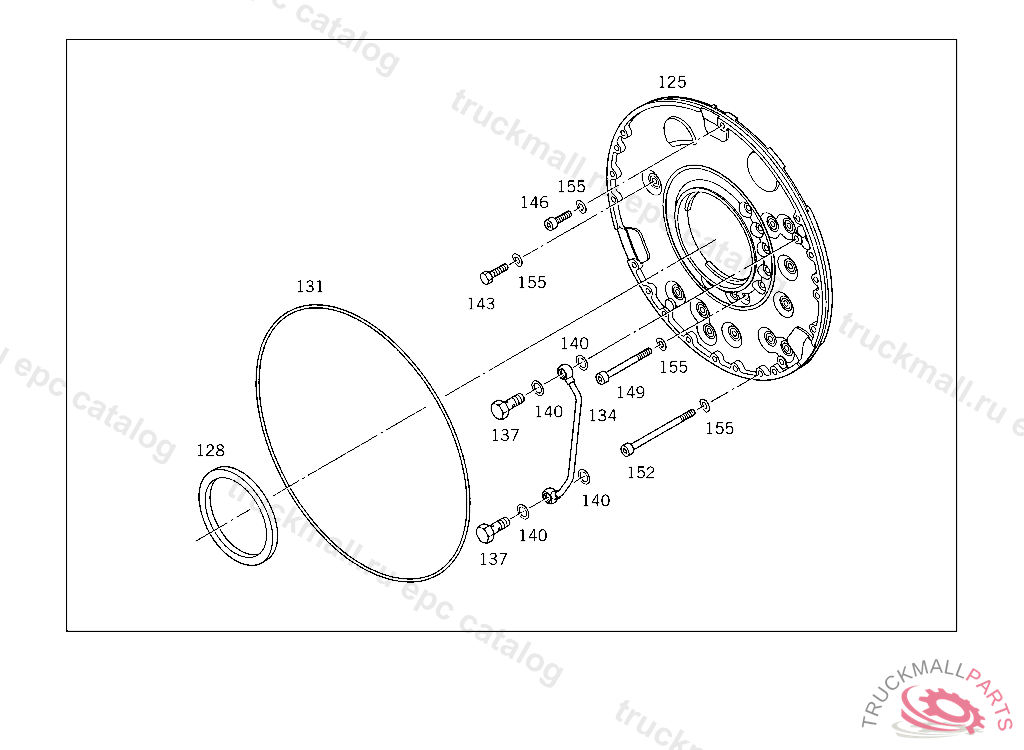

27 ZF-ECOMAT AUTOMATIC TRANSMISSION
›
170 OIL SEPARATOR PLATE IL. 2
Mercedes N304017008021 - АВТОЗАПЧАСТЬ
ZF 5 HP 502 C 721.136
27 ZF-ECOMAT AUTOMATIC TRANSMISSION - 170 OIL SEPARATOR PLATE IL. 2
Поз.
Артикул
Описание
125
A0002773334
PLATE
125
A0002770134
PLATE , Replaced By: A0002773334, +001A0002740485
128
A0189979248
SEAL RING
131
A0189979348
SEAL RING
134
A0002740485
OIL PIPE OIL LINE
137
N915036006202
HOLLOW SCREW LINE CONNECTION
140
N007603010110
SEAL RING PNEUMATIC VALVE
143
N304017008021
SCREW PIPE CLAMP
143
N000933008147
SCREW , Replaced By: N304017008021
146
N000912008098
SCREW , Replaced By: N000912008204
146
N000912008204
SCREW. CAP BOLT SEAT MOUNTING M8X35
149
N000931008189
SCREW VALVE TO CAB M 8X85
152
N000912008193
SCREW PLATE TO TRANSMISSION CASE M 8X130
155
N007603008106
SEAL RING OIL PAN TO TRANSMISSION
