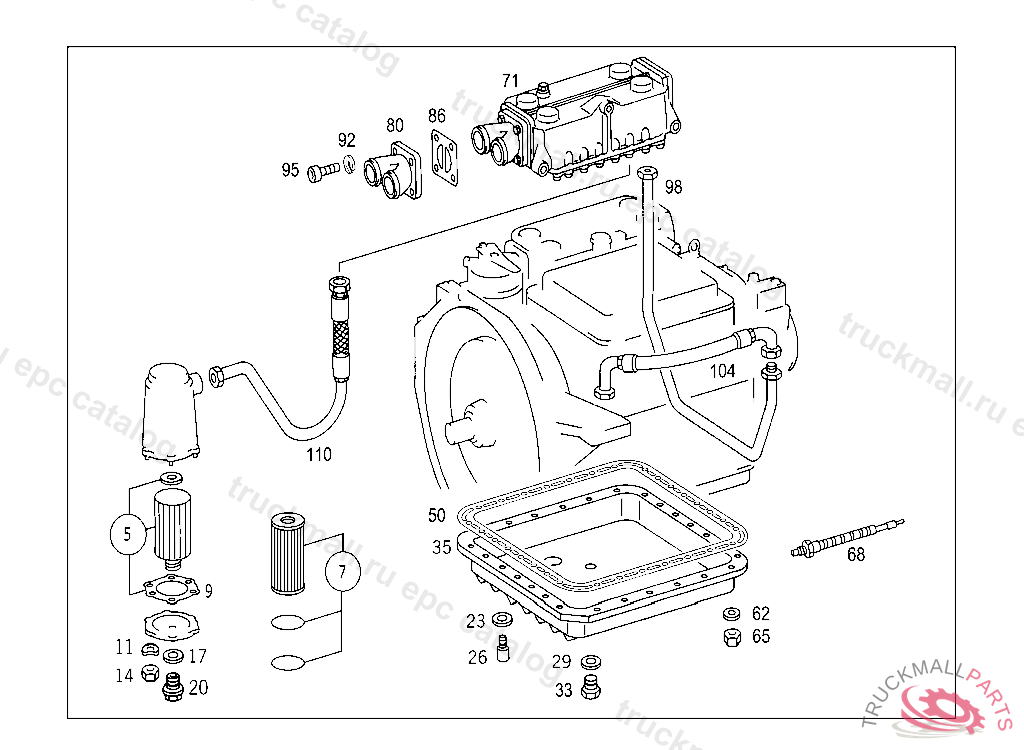

Поз.
Артикул
Описание
5
FILTER PARTS KIT
5
FILTER , Replaced By: A0002701698
9
GASKET COVER TO FILTER HOUSING
11
SPRING WASHER , Replaced By: N000137008212
11
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
14
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
17
SEAL RING PNEUMATIC VALVE
20
SCREW PLUG
23
SEAL RINGTO 000 553 03 05,000 553 18 05,
26
SCREW PLUG OIL DRAIN,CONVERTER
29
SEAL RING OIL DRAIN 26X34 MM
35
OIL PAN
50
GASKET OIL PAN TO TRANSMISSION
62
WASHER EXHAUST MUFFLER TO STRAP
65
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
68
SWITCH,AUTOMATIC (TEMPERATURE SWITCH),D 373744
71
OIL COOLER110 KW
80
PIPE OIL COOLER
86
GASKET PIPE TO OIL COOLER
92
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
95
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
98
PIPE
104
LINE
110
LINE
