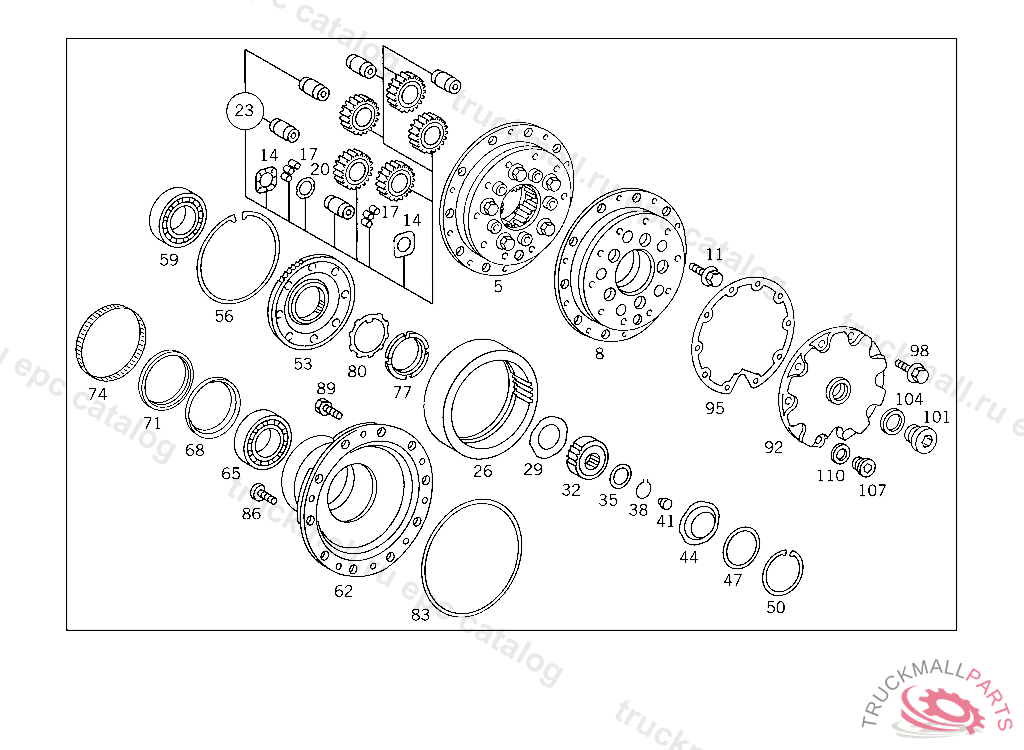

Поз.
Артикул
Описание
5
PLANETARY GEARING FRONT AXLE, FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
PLANETARY GEARING
5
PLANETARY GEARING
5
PLANETARY GEARING
8
DRUM HUB
8
DRUM HUB
8
DRUM HUB
8
DRUM HUB
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
11
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
14
THRUST WASHER PLANET GEAR
17
NEEDLE SET50 PIECES
20
THRUST WASHER PLANET GEAR
23
PLANET GEAR (PARTS KIT),NUMBER OF TEETH: "24"
23
PLANET GEAR PARTS KIT, V 290186
26
OUTSIDE GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 75, V 290186
26
OUTSIDE GEAR NUMBER OF TEETH: 85
26
OUTSIDE GEAR NUMBER OF TEETH: 85
29
GUARD PLATE PLANETARY GEAR TRAIN
32
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 35, V 290186
32
SUN GEAR PLANETARY GEAR TRAIN,NUMBER OF TEETH: 25, V 290186
35
THRUST RING SUN GEAR,OUTSIDE
38
LOCK RING BEARING TO DRIVE SHAFT,183596
41
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
44
THRUST WASHER AXIAL DIFFERENTIAL DRIVE SHAFT
47
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.80 MM
47
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.00 MM
50
LOCK RING THRUST WASHER TO BELL HUB
53
SUPPORT OUTSIDE GEAR
53
SUPPORT OUTSIDE GEAR
56
WIRE RING OUTSIDE GEAR TO SUPPORT
59
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
59
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
59
TAPERED ROLLER BEARING PLANETARY GEAR TRAIN
62
WHEEL HUB , Replaced By: A3463341101
62
WHEEL HUB CASTING
65
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
65
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE
65
TAPERED ROLLER BEARING
68
SEAL RING WHEEL HUB
71
SEAL RING WHEEL HUB
74
SENDER UNIT (MEASURING RING) ANTI-LOCK BRAKING SYSTEM
77
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
77
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
80
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
83
SEAL RING PLANETARY GEAR TRAIN TO WHEEL HUB
86
WHEEL MOUNTING BOLT INTERMEDIATE PIECE TO REAR AXLE
86
WHEEL MOUNTING BOLT , TO REAR AXLES 360 350 88 00, 345 350 48 00,345 350 88 04
89
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
92
HUB CAP BELL HUB
95
GASKET COVER TO HUB
98
SCREW COVER TO BELL HUB
101
SCREW PLUG OIL FILLING
104
SEALING RING OIL FILLING
107
SCREW PLUG OIL DRAIN
110
SEALING RING. SEAL RING OIL DRAIN
