Поз.
Артикул
Описание
5

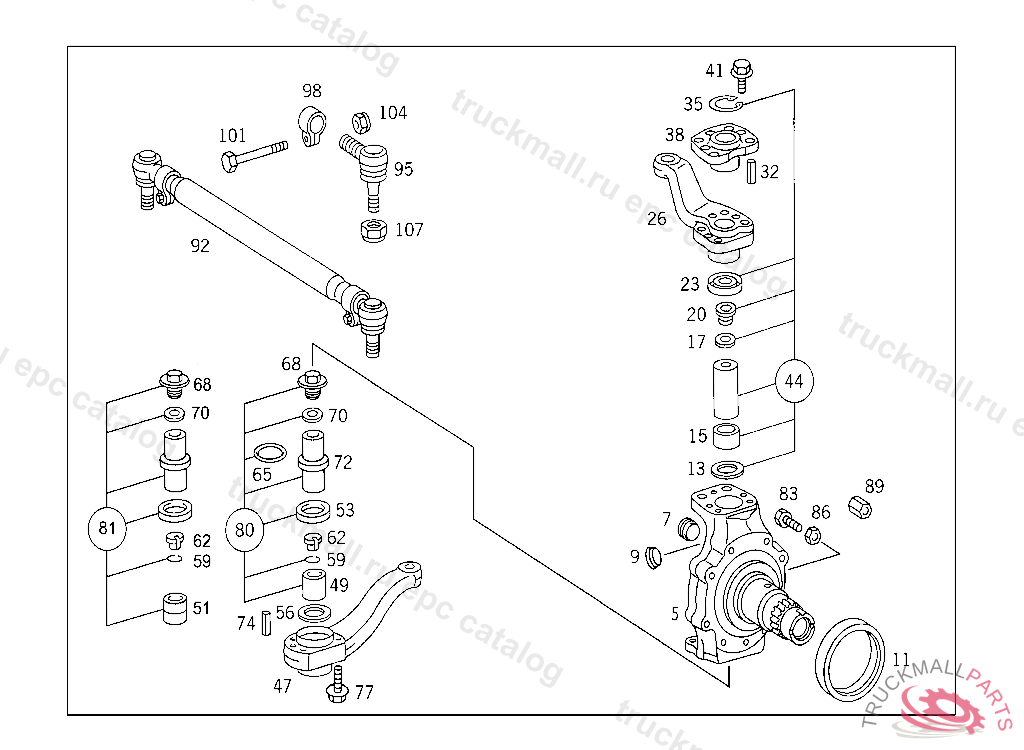

STEERING KNUCKLE LEFT AND RIGHT
5
STEERING KNUCKLE FRONT AXLE
7
PLUG SUPPORTING SLEEVE
9
SCREW PLUG SUPPORTING SLEEVE
11
SPACER RING STEERING KNUCKLE,FRONT
13
THRUST WASHER STEERING ARM TO STEERING KNUCKLE
15
BUSHING STEERING KNUCKLE BEARING,TOP
17
SEAL RING OIL FILLING AND OIL DRAIN
20
SCREW PLUG
20
SCREW PLUG , Replaced By: A2109970132
23
SEAL RING STEERING KNUCKLE BEARING,TOP
26
STEERING ARM STEERING KNUCKLE,LEFT TOP
26
STEERING ARM STEERING KNUCKLE,RIGHT TOP
32
ROLL PIN STEERING ARM TO STEERING KNUCKLE
35
LOCK RING TORSION BAR TO LINK,5 903513
38
EXPANSION PLUG STEERING KNUCKLE,TOP
41
SCREW STEERING ARM TO STEERING KNUCKLE
41
SCREW STEERING ARM TO STEERING KNUCKLE M 16X55
41
SCREW COVER TO STEERING KNUCKLE
44
REPAIR KIT STEERING KNUCKLE BEARING,TOP
47
STEERING ARM RIGHT,V 381380
47
STEERING ARM , Replaced By: A6253380906
47
STEERING ARM , Replaced By: A6253381105
47
STEERING ARM LEFT,V 381380
49
BUSHING STEERING ARM,
53
SEAL RING STEERING ARM,
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.10 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.20 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.40 MM
56
THRUST WASHER AS REQUIRED 9.50 MM, MAN AXLE
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 8.90 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.00 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.70 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.60 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.30 MM
56
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 8.80 MM
59
SNAP RING FRONT AXLE STABILIZER
62
THRUST WASHER STEERING KNUCKLE PIN,IF REQUIRED 9.00 MM
62
THRUST WASHER STEERING KNUCKLE BEARING,BOTTOM 10 MM
65
SEAL RING STEERING KNUCKLE BEARING,BOTTOM
68
SCREW PLUG STEERING KNUCKLE BEARING,BOTTOM
70
SEAL RING OIL FILLING AND OIL DRAIN
74
ROLL PIN STEERING ARM TO STEERING KNUCKLE
77
SCREW STEERING ARM TO STEERING KNUCKLE
77
SCREW COVER TO STEERING KNUCKLE
80
REPAIR KIT (PARTS KIT),STEERING KNUCKLE BEARING, BOTTOM
80
REPAIR KIT , Replaced By: A6253300419
83
SCREW STEERING STOP
86
HEXAGON NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
86
HEXAGON NUT. NUT PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, Replaced By: N000000005461
89
NUT STEERING KNUCKLE STOP
92
TIE ROD
95
DRAG LINK END L.H. THREAD LEMFOERDER
95
DRAG LINK ENDEHRENREICH
95
DRAG LINK END , Replaced By: A0014607648
98
CLAMP58 MM,TO 655 650 03 05
98
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
101
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
101
SCREW STRUT TO FRAME M 12X62
101
SCREW , Replaced By: N308676012018
101
SCREW , Replaced By: N308676012017
101
SCREW , Replaced By: N000961012184
104
NUT SUPPORT TO SIDE MEMBER
107
NUT DRAG LINK TO LEVER
