Mercedes A3163340304 - Ступица барабана

VL 2/6-3,1 730.730

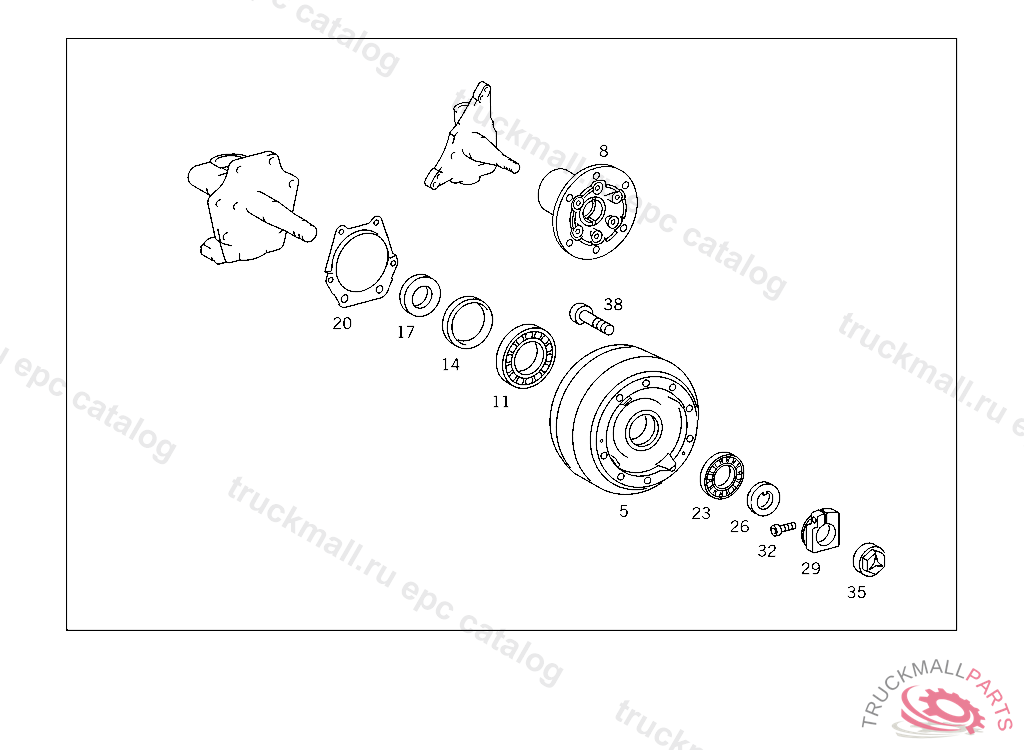

33 FRONT AXLE - 530 WHEEL HUB,WHEEL BEARING

Поз.
Артикул
Описание
5
A3163340304
DRUM HUB
11
A0029818205
TAPERED ROLLER BEARING , FROM CHASSIS 791607-910369 ALSO INSTALLED ON 500000-501455
11
A0009807502
TAPERED ROLLER BEARING , FROM CHASSIS 791607-910369 ALSO INSTALLED ON 500000-501455
11
A0069818205
TAPERED ROLLER BEARING INSIDE KOYO
11
A0089813605
TAPERED ROLLER BEARING OUTSIDE DRUM HUB
14
A0109975747
SEAL RING INSIDE DRUM HUB
14
A0179973047
SEAL RING OUTSIDE
14
A0199974147
SEAL RING FRONT WHEEL HUB,INSIDE
14
A0009976347
SEAL RING
14
A0119972546
SEAL RING
17
A3123341615
RING
17
A3123341315
RING
20
A3163340182
OIL COLLECTOR ,6951998 000001
23
A0019818305
TAPERED ROLLER BEARING
23
A0019818705
TAPERED ROLLER BEARING
23
A0069815905
TAPERED ROLLER BEARING OUTSIDE
23
A0009819505
TAPERED ROLLER BEARING
26
A3123321862
THRUST WASHER
29
A3143340072
NUT , Replaced By: A6753300088
29
A6753300088
NUT
32
N000912008202
SCREW. CAP BOLT COVER TO CASE M8X25
35
A3183340025
HUB CAP
38
A3144020071
WHEEL MOUNTING BOLT
