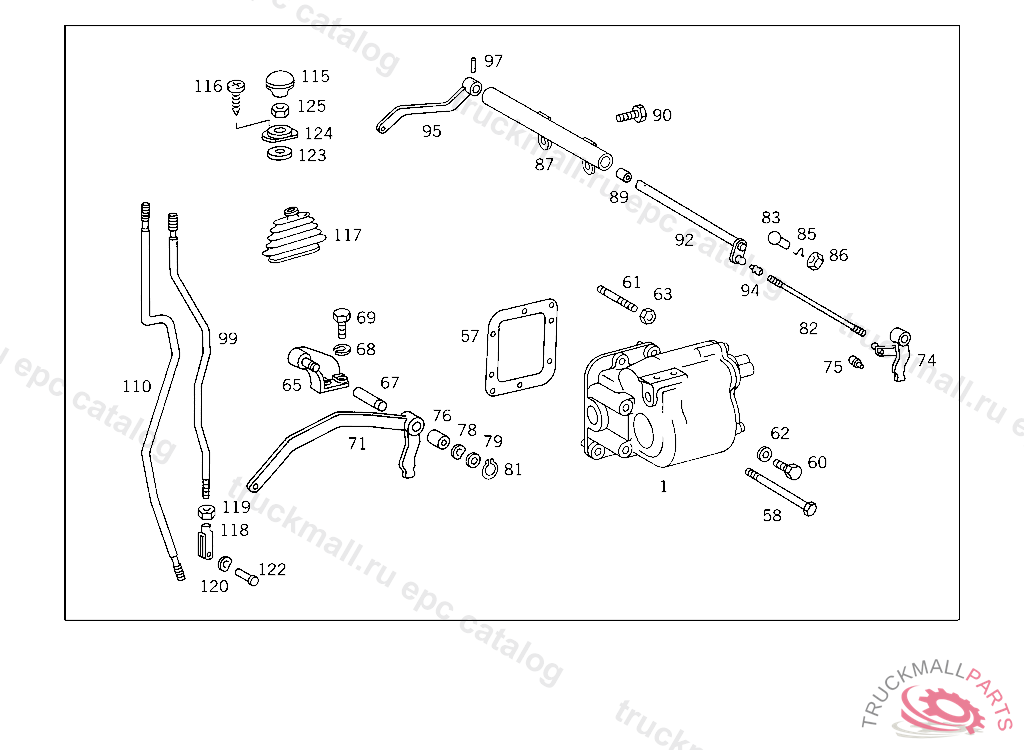

Поз.
Артикул
Описание
1
P.T.O.ZF
1
P.T.O. , Replaced By: A0002600010
57
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3122611080
57
GASKET , Replaced By: A3142640180
57
GASKET
58
SCREW P.T.O. TO TRANSMISSION M10X100
60
SCREW P.T.O. TO TRANSMISSION M 10X30 MM
61
STUD P.T.O. TO TRANSMISSION M10X25
62
SPRING WASHER STEERING COLUMN BRACKET TO CAB
63
NUT BRACKET TO SUPPORT AND TO END PIECE
65
BEARING BRACKET P.T.O. CONTROL
65
BEARING BRACKET P.T.O. CONTROL
67
PIN SHIFT LEVER BEARING
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
69
SCREWM 8X40
71
LEVER P.T.O. CONTROL,823236-4 282707
71
LEVER ,823235, Replaced By: A3142603437, +001A3142602533, +001N071752008000, +001N918001008002
71
LEVER P.T.O. CONTROL,4 282708
74
LEVER P.T.O. CONTROL
74
LEVER P.T.O. CONTROL
75
BALL PIVOT
76
BUSHING
78
WASHER SHIFT LEVER TO PIVOT PIN
79
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
81
LOCK RING SHIFT LEVER TO PIVOT PIN
82
PULL ROD SHIFTING SHAFT TO LEVER,614928
82
PULL ROD OPERATING ROD, TO BE ADAPTED DURING ASSEMBLY
82
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
83
BALL SOCKET ROD TO BALL PIVOT
85
SECURING CLIP. CIRCLIP
86
NUT
87
BEARING (BEARING TUBE)
87
BEARING SHIFTING SHAFT BEARING
87
BEARING (BEARING TUBE), 314 UP TO CHASSIS 614928
89
BUSHING
90
SCREW BEARING TUBE TO TRANSMISSION CASE TOP COVER M12X105,679695
90
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
90
SCREW , Replaced By: N304017008053
90
SCREW BEARING TUBE TO TRANSMISSION CASE TOP COVER M 12X105
92
SHAFT (SHIFTING SHAFT),6149298 000001
92
SHAFT , 314 FROM CHASSIS 614929,316 FROM CHASSIS 000001 AND FROM CHASSIS 8000001 EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 484801, Replaced By: A3142600338
92
SHAFT (SHIFTING SHAFT)
92
SHAFT (SHIFTING SHAFT), 314 UP TO CHASSIS 614928
94
BALL PIVOT
95
LEVER P.T.O. CONTROL,614928
95
LEVER SHIFTING TRANSFER,LEFT
97
GROOVED PIN SHIFTING SHAFT TO LEVER
99
SHIFTING ROD ,823235, Replaced By: A3142602533, +001A3142603437, +001N071752008000, +001N918001008002
99
SHIFTING ROD , 10/20 FROM CHASSIS 879084,50/60 FROM CHASSIS 880343 AND FROM CHASSIS 8000001
99
SHIFTING ROD P.T.O. CONTROL,4 282708
110
SHIFT LEVER P.T.O. CONTROL
110
SHIFTING ROD P.T.O. CONTROL,6149298 000001
110
SHIFT LEVER P.T.O. CONTROL
110
SHIFTING ROD , Replaced By: A3142602433
110
SHIFTING ROD P.T.O. CONTROL,614928
115
HANDLE (GEARSHIFT LEVER KNOB)
115
HANDLE (GEARSHIFT LEVER KNOB)
116
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
117
BOOT , Replaced By: A3222640096
117
BOOT SHIFT LEVER BEARING COVERING
118
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
119
NUT
120
SPRING WASHER SHIFTING CYLINDER TO YOKE
122
PINM 8 X 16
122
PIN SHIFT LEVER TO PIVOT PIN
123
WASHER SHIFT LEVER TO CAB FLOOR
124
LOCKING CAP SHIFT LEVER BEARING COVERING
125
SCREW
125
SHEET METAL SCREW , Replaced By: N000000002062
999
SNAP RING
999
YOKE OPERATING ROD
999
CLAMPING SLEEVE SHIFTING FORK TO SHIFTING SHAFT
999
CLAMPING SLEEVE LATERAL P.T.O
999
COTTER PINROCKINGER TYP 260 G140
999
TRANSMISSION CASE COVER LEFT LATERAL
999
GASKET , Replaced By: A3142640080
999
BUSHING
999
SHAFT
