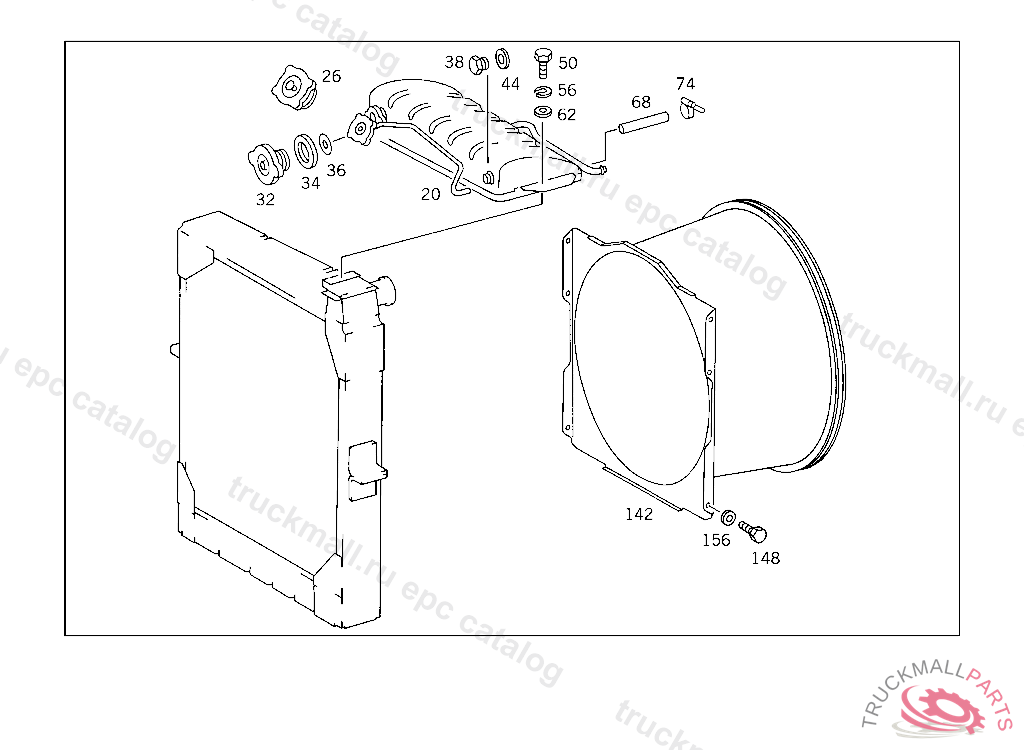

Поз.
Артикул
Описание
20
TANK EXPANSION TANK
20
TANK ON RADIATOR
26
RADIATOR CAP FILLER NECK
26
RADIATOR CAP FILLER NECK
32
RADIATOR CAP CENTRAL
32
RADIATOR CAP CENTRAL
34
GASKET O.D., 52 MM
36
GASKET O.D., 37 MM
38
SCREW PLUG WATER DRAIN
38
SCREW PLUG , Replaced By: N007604014101
44
SEAL RING FUEL LINE TO FEED PUMP
50
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SCREW , Replaced By: N304017008016
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
WASHER EXHAUST MUFFLER TO STRAP
62
WASHER , Replaced By: N000125008443
68
HOSE OVERFLOW, EXPANSION TANK
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
74
CLAMP , Replaced By: N916017011001
74
CLAMP , Replaced By: N916017011000
142
FAN SHROUD RADIATOR
148
SCREW COVER PLATE TO BRACKET
156
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BREATHER PIPE , Replaced By: A6205010725
999
BRACKET FUEL LINE TO BELL HOUSING
999
CUTTING RING. GLAND LINE CONNECTION
