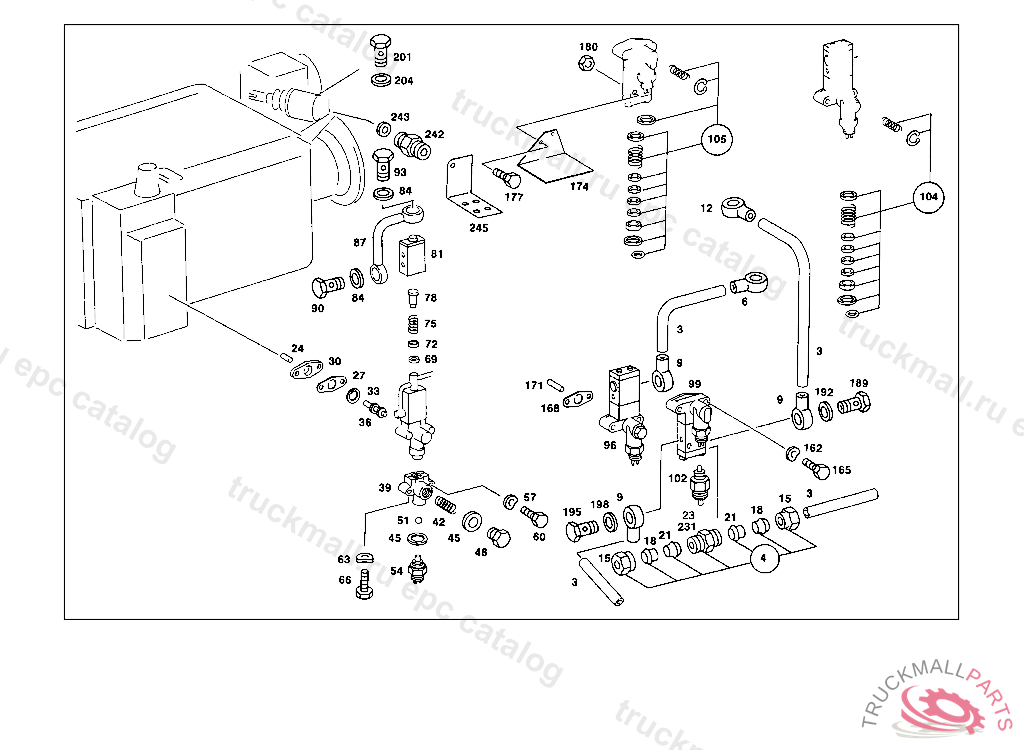

Поз.
Артикул
Описание
3
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
3
PLASTIC PIPE RISING PIPE 4X6 MM
3
PLASTIC PIPE RISING PIPE 4X6 MM
3
PLASTIC PIPE RISING PIPE 4X6 MM
3
PLASTIC PIPE RISING PIPE 4X6 MM
3
PLASTIC PIPE RISING PIPE 4X6 MM
3
PLASTIC PIPE RISING PIPE 4X6 MM
4
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
6
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
9
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
12
BANJO UNION , Replaced By: N000000000364
12
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
15
UNION NUT
18
GLAND , Replaced By: A0019901667
18
SEAL CONE
21
SLEEVE LEAK LINE
23
FITTING LINE CONNECTION TO FIRE WALL,5 726664
24
PIN
27
GASKET , Replaced By: A0002685080
27
GASKET VALVE TO TRANSMISSION
30
SLOTTED GATE
33
LOCK RING
36
PIN
39
HOUSING
42
SPRING
45
SPACER WASHER , Replaced By: A0002771552, +001A0012648652
45
SPACER WASHER AS REQUIRED 0.6 MM
45
SPACER WASHER AS REQUIRED 2.4 MM
45
SPACER WASHER , Replaced By: A0002771552, +002A0002771452
45
SPACER WASHER AS REQUIRED 2.0 MM
45
SPACER WASHER , Replaced By: A0012648652, +001A0002771452
45
SPACER WASHER AS REQUIRED 1.0 MM
45
SPACER WASHER , Replaced By: A0012648652, +001A0002771552
45
SPACER WASHER , Replaced By: A0002771452, +001A0002771552
45
SPACER WASHER AS REQUIRED 0.8 MM
45
SPACER WASHER AS REQUIRED 1.2 MM
48
SCREW PLUG
51
BALL
54
SWITCH , Replaced By: A0015458214
54
SWITCH
54
SWITCH , Replaced By: A0015455709
54
SWITCH
57
SPRING WASHER , Replaced By: N000137008212
57
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
60
SCREW VALVE TO BRACKET
63
SPRING WASHER ALTERNATOR CONNECTION D+
66
SCREW
69
SEAL RING
72
WASHER
75
SPRING
78
PIN
81
VALVE
84
SEAL RING , Replaced By: N007603010110
84
SEAL RING PNEUMATIC VALVE
87
LINE
90
HOLLOW SCREW
93
HOLLOW SCREW
96
VALVE GEAR INTERLOCK
96
VALVE GEAR INTERLOCK WABCO
96
VALVE GEAR INTERLOCK, 10/20 FROM IDENT NO.4 321817-4 411810,50/60 FROM IDENT NO. 4 321817-4 414889
96
VALVE GEAR INTERLOCK, 10/20 FROM IDENT NO.4 321817-4 411810,50/60 FROM IDENT NO. 4 321817-4 414889
99
VALVE , Replaced By: A0002606457
99
VALVE GEAR INTERLOCK
99
VALVE GEAR INTERLOCK
99
VALVE GEAR INTERLOCK
102
SWITCH 3/2-WAY VALVE WABCO
104
REPAIR KIT 3/2-WAY VALVE WABCO
105
REPAIR KIT , Replaced By: A0002601268
105
REPAIR KIT 3/2-WAY VALVE WABCO
162
SPRING WASHER , Replaced By: N000137008212
162
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
162
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
165
SCREW VALVE TO BRACKET
165
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
165
SCREW , Replaced By: N304017008043
165
SCREW VALVE TO BRACKET M 8X55
165
SCREW , Replaced By: N304017008018
165
SCREW SUPPORT TO FENDER
165
SCREW VALVE TO BRACKET
165
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
168
GASKET , Replaced By: A0002672380
168
GASKET VALVE TO TRANSMISSION
168
GASKET , Replaced By: A0002685080
168
GASKET VALVE TO TRANSMISSION
171
DOWEL PIN VALVE TO TRANSMISSION,5 145750
171
DOWEL PIN VALVE TO TRANSMISSION,5 145751
171
DOWEL PIN VALVE TO TRANSMISSION,5 145751
171
DOWEL PIN ,5 145751
171
PIN AS REQUIRED 21.20 MM,4 321817
171
PIN AS REQUIRED 20.90 MM,4 321817
171
PIN AS REQUIRED 20.60 MM,4 321817
171
PIN AS REQUIRED 20.30 MM,4 321817
171
PIN , Replaced By: A0009915660
171
DOWEL PIN VALVE TO TRANSMISSION,5 145751
171
DOWEL PIN ,5 145751
174
COVERING 3/2-WAY VALVE
174
COVER PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 835948, Replaced By: A6202600096
177
SCREW TWO-WAY VALVE TO BRACKET
180
NUT TWO-WAY VALVE TO BRACKET
189
HOLLOW SCREW LINE CONNECTION
192
SEAL RING , Replaced By: N007603010110
192
SEAL RING PNEUMATIC VALVE
195
HOLLOW SCREW LINE CONNECTION
195
HOLLOW SCREW LINE CONNECTION
198
SEAL RING , Replaced By: N007603010110
198
SEAL RING PNEUMATIC VALVE
198
SEAL RING PNEUMATIC VALVE
201
HOLLOW SCREW LINE CONNECTION
201
HOLLOW SCREW LINE CONNECTION
204
SEAL RING , Replaced By: N007603010110
204
SEAL RING PNEUMATIC VALVE
204
SEAL RING PNEUMATIC VALVE
231
SCREW-IN FITTING , Replaced By: A0029978472
231
FITTING 3/2-WAY VALVE,CONNECTION: "30"
242
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
243
SEAL RING LINE CONNECTION
245
BRACKET AT ENGINE,REAR
245
ANGLE LINE MOUNTING
999
HOLLOW SCREW HEATING CONNECTION
999
WASHER 3/2-WAY VALVE TO BRACKET
999
SYMBOL PLATE P.T.O. I
999
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
999
SEAL RING INSIDE WABCO
999
SPRING INSIDE WABCO
999
SEAL RING TOP WABCO
999
GEAR INTERLOCK , IN ADDITION,AS REQUIRED 000 268 20 74,000 268 21 74,000 268 22 74,000 268 23 744 321816, Replaced By: A0002603957, +002N000137008204, +002N000931008047
