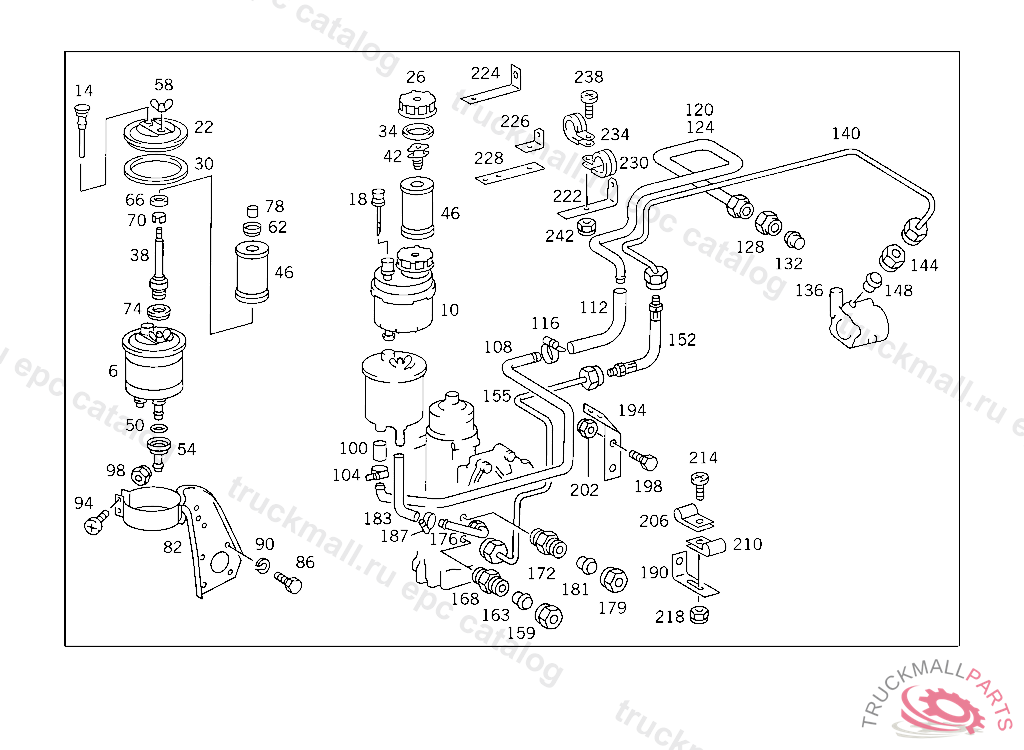

Поз.
Артикул
Описание
6
TANK , Replaced By: A0004664502
10
TANK OIL
14
PIPETO 000 466 38 02
18
OIL DIPSTICK
18
OIL DIPSTICK , Replaced By: A0004660867
22
COVERTO 000 466 38 02
26
FILLER CAP
30
SEAL RINGTO 000 466 38 02
34
SEAL RING
38
FILTER CARRIERTO 000 466 38 02
42
BRACKET
46
FILTER
46
FILTER
50
SEAL RINGTO 000 466 38 02
54
CONNECTORTO 000 466 38 02
58
NUTTO 000 466 38 02
62
CENTERING RINGTO 000 466 38 02
66
SPACER WASHERTO 000 466 38 02
66
WASHER , Replaced By: A9402680552
70
SPACER TUBETO 000 466 38 02
74
COVER PLATETO 000 466 38 02
78
RUBBER SLEEVETO 000 466 38 02
82
BRACKET OIL TANK
82
BRACKET OIL TANK
86
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
86
SCREW , Replaced By: N304017010028
90
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
94
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
94
SCREW , Replaced By: N000000001149
94
SCREW , Replaced By: A0029903712
98
NUT PUMP TO BRACKET
98
NUT , Replaced By: N913004006001
100
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
100
HOSE , Replaced By: A3859971582
104
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
104
CLAMP , Replaced By: N000000000667
108
LINE , NOT USED
108
LINE , NOT USED
112
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
112
HOSE , Replaced By: A3859971582
116
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
116
CLAMP , Replaced By: N000000000667
120
LINE , NOT USED
124
LINE FROM HOSE TO OIL PUMP
128
NUT LINE CONNECTION
128
UNION NUT LINE CONNECTION, Replaced By: N000000006243
132
SEAL CONE LINE CONNECTION
132
GLAND , Replaced By: A0019901267
136
ELBOW FITTING SUCTION LINE TO OIL PUMP
140
LINE FROM POWER STEERING PUMP TO HOSE
140
LINE , NOT USED
144
UNION NUT LINE CONNECTION
144
UNION NUT LINE CONNECTION, Replaced By: N000000006239
148
SEAL CONE LINE CONNECTION
148
GLAND , Replaced By: A0019901967
152
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
152
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
152
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
155
LINE , NOT USED
155
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
159
UNION NUT LINE CONNECTION
159
UNION NUT LINE CONNECTION, Replaced By: N000000006239
163
SEAL CONE LINE CONNECTION
163
GLAND , Replaced By: A0019901967
168
SCREW-IN FITTING DELIVERY LINE TO PUMP
172
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
176
LINE FROM STEERING TO OIL TANK
179
UNION NUT LINE CONNECTION
181
GLAND LINE CONNECTION
183
HOSE , NOT USED
183
HOSE , Replaced By: A3859971682
183
HOSE , Replaced By: A6999974082
187
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
187
CLAMP HOSE TO FITTING AND TO OIL TANK
190
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
194
BRACKET DELIVERY AND SUCTION LINES TO FRAME
194
BRACKET DELIVERY AND SUCTION LINES TO FRAME
194
BRACKET , Replaced By: A6564660040
198
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
202
NUT SUPPORT TO SIDE MEMBER
206
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
206
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
210
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
214
SCREW DELIVERY AND SUCTION LINES TO BRACKET
218
NUT PUMP TO BRACKET
218
NUT , Replaced By: N913004006001
222
BRACKET , NOT USED
224
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
224
BRACKET , Replaced By: A6205244040
224
BRACKET , Replaced By: A3044760335
228
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
228
BRACKET , Replaced By: A3604293140
230
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
234
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
238
SCREW DELIVERY AND SUCTION LINES TO BRACKET
238
SCREW DELIVERY AND SUCTION LINES TO BRACKET
242
NUT PUMP TO BRACKET
242
NUT , Replaced By: N913004006001
999
NUT DRAG LINK END M 24X1.5
999
FITTING DELIVERY LINE TO PUMP
999
PROTECTIVE CAP
999
HOSE , Replaced By: A3859971582
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III III NO.9051II I
999
LINE , Replaced By: A3874602624
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 549076
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220267 NO.8316INO.7C52INO.7B90INO.9051I II I
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
THREADED CONNECTION SUCTION LINE TO OIL PUMP
999
COTTER PIN DRAG LINK TO LEVER
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
999
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
999
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
