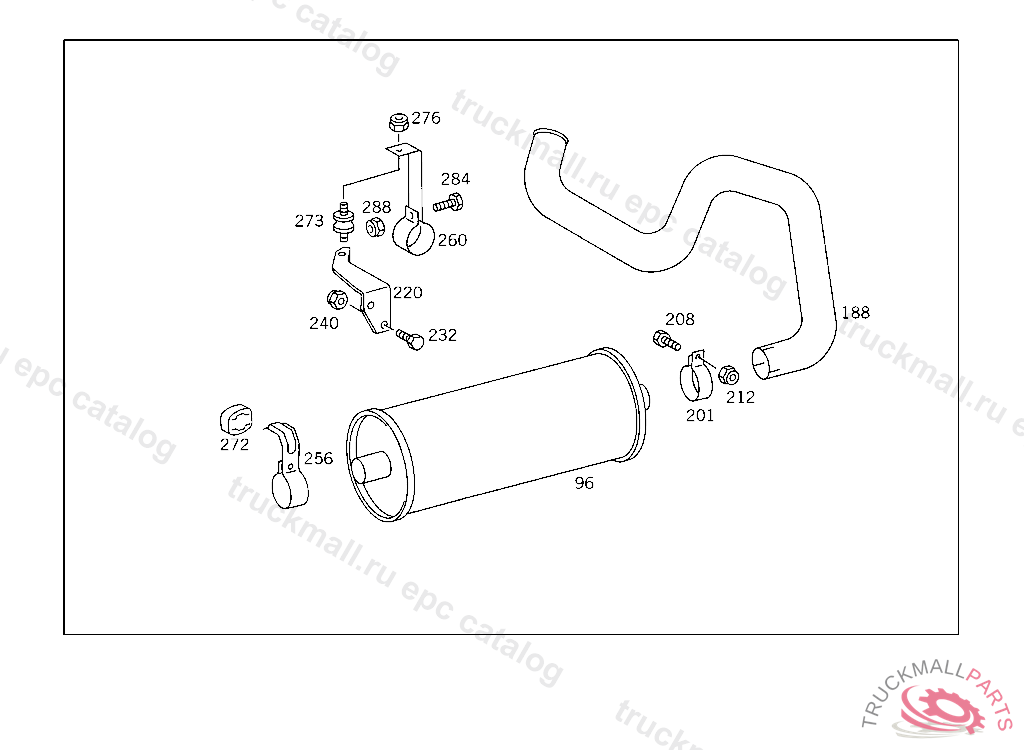

Поз.
Артикул
Описание
96
EXHAUST MUFFLER
188
END PIECE REAR EXHAUST PIPE,5 193594
201
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
208
SCREW BRACKET TO SIDE MEMBER
208
SCREW , Replaced By: N304017010002
212
NUT STRAP TO BRACKET
212
NUT , Replaced By: N910113010000
220
SUPPORT EXHAUST PIPE
232
SCREW BRACKET TO CROSS CONNECTION STRUT
232
SCREW , Replaced By: N304017008034
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT , Replaced By: N913004008001
256
BRACKET RUBBER BUFFER,5 129244
260
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
260
BRACKET , Replaced By: A3834927941
272
DAMPING PAD PARTICLE FILTER
273
RUBBER BUFFER BRACKET TO SUPPORT
273
RUBBER BUFFER BRACKET TO SUPPORT
276
NUT STRAP TO BRACKET
276
NUT , Replaced By: N910113010000
284
SCREW END PIECE TO EXHAUST PIPE M 10X25
288
NUT STRAP TO BRACKET
288
NUT , Replaced By: N910113010000
999
CYLINDER
999
CYLINDER , Replaced By: A0004304926
999
CYLINDER , Replaced By: A0004303026
999
BUSHING , Replaced By: A0004340850
999
LEVER , Replaced By: A3661400232, +001N913017006000, +001N914126006025
999
SCREW , Replaced By: N308676012012
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
