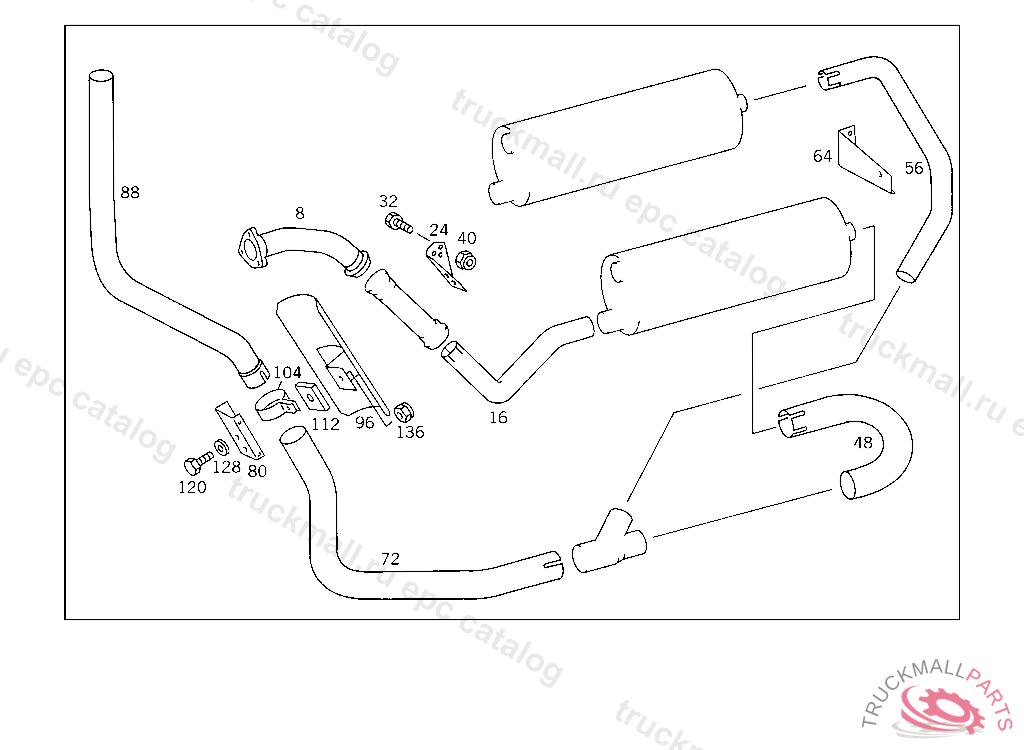

Поз.
Артикул
Описание
8
CONNECTOR FRONT EXHAUST PIPE,LEFT
16
EXHAUST PIPE FRONT,REAR LEFT PART
24
BRACKET FRONT EXHAUST PIPE,LEFT
32
SCREW EXHAUST PIPE TO BRACKET
40
NUT , Replaced By: N910113010000
40
NUT STRAP TO BRACKET
40
NUT STRAP TO BRACKET
48
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
56
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
64
BRACKET REAR EXHAUST PIPE TO FRAME
72
REAR EXHAUST PIPE BOTTOM LATERAL
80
BRACKET UPPER AND LOWER EXHAUST PIPES TO SUPPORT OR TO BRACKET,RESP.
88
EXHAUST PIPE BEHIND CAB,UPWARD
96
PROTECTIVE PLATE FUEL TANK
104
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
112
INSULATING WASHER. INSULATION , Replaced By: A3094900037
112
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
120
SCREW , Replaced By: N304017008040
120
SCREW BRACKET TO SIDE MEMBER
128
WASHER , Replaced By: N000125008443
128
WASHER EXHAUST MUFFLER TO STRAP
136
NUT , Replaced By: N913004008001
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: N071555100501
999
BRACKET , Replaced By: A3434290940
999
BRACKET TAIL PIPE
999
END PIECE TAIL PIPE ON THE RIGHT
999
END PIECE TAIL PIPE ON THE LEFT
999
BRACKET EXHAUST MUFFLER TO FRAME
999
EXHAUST PIPE RIGHT
999
BRACKET FRONT EXHAUST PIPE,RIGHT
999
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,RIGHT
999
BRACKET HEATING PIPE
999
BRACKET CABLE TO TRANSMISSION
999
INSULATING HOSE BATTERY CABLE
999
INSULATING HOSE , Replaced By: A0015462630
