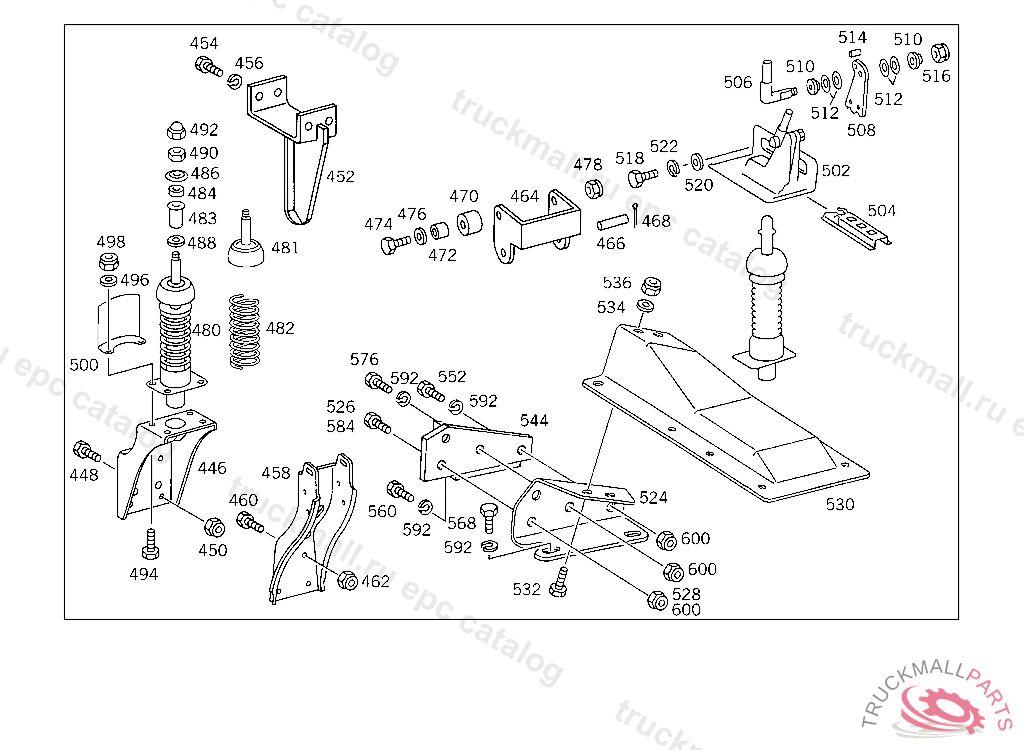

Поз.
Артикул
Описание
446
CONSOLE CAB SUSPENSION
446
CONSOLE , Replaced By: A3873170001
448
SCREW , Replaced By: N308676012026
448
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
450
NUT SUPPORT TO SIDE MEMBER
452
GUIDE LATERAL GUIDE OF CAB
454
SCREW , Replaced By: N308676012012
454
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
456
LOCK WASHER FITTING TO BRACKET
458
CONSOLE CAB
460
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
462
NUT BRACKET TO SIDE MEMBER
462
NUT , Replaced By: N910113014001
464
BRACKET CONSOLE
466
PIN BRACKET TO CONSOLE
468
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
470
STOP LATERAL GUIDE OF CAB
472
SPACER TUBE STOP, TO BE ADAPTED DURING ASSEMBLY
472
SPACER TUBE SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
472
SPACER TUBE , Replaced By: A3878911953
474
SCREW PLATFORM MOUNTING
476
WASHER , Replaced By: N007349013005
476
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
478
NUT SUPPORT TO SIDE MEMBER
480
SHOCK ABSORBER CAB SUSPENSION
480
SHOCK ABSORBER , Replaced By: A3878903619
481
RUBBER MOUNTINGTO 387 890 36 19
482
SPRINGTO 387 890 36 19
483
SPACER TUBE SHOCK ABSORBER MOUNTING
484
RUBBER RING SHOCK ABSORBER MOUNTING
486
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
486
WASHER , Replaced By: N000433015005
488
WASHER SHOCK ABSORBER MOUNTING
490
NUT STRAP TO SUPPORT
492
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
494
SCREW BRACKET TO CROSS CONNECTION STRUT
494
SCREW , Replaced By: N304017008034
496
WASHER , Replaced By: N009021008213
496
WASHER BRACKET TO LEFT SIDE MEMBER
498
NUT , Replaced By: N913004008001
498
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
500
COVER PLATE SHOCK ABSORBER
502
LOCKING MECHANISM CAB,REAR LEFT AND RIGHT
502
LOCKING MECHANISM CAB,LEFT
502
LOCKING MECHANISM CAB, RIGHT
504
LATCH CAB LOCKING MECHANISM
506
PIN
508
LEVER
510
WASHER
512
DISC SPRING CAB LOCKING MECHANISM
514
CLAMPING SLEEVE CAB LOCKING MECHANISM
516
NUT SUPPORT TO SIDE MEMBER
518
SCREW END PIECE TO EXHAUST PIPE M 10X25
520
WASHER , Replaced By: N000125010532
520
WASHER RADIATOR TO RUBBER MOUNTING
522
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
524
BRACKET LEFT
524
BRACKET RIGHT
526
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
528
NUT BRACKET TO SIDE MEMBER
528
NUT , Replaced By: N910113014001
530
BRACKET LEFT FENDER
530
BRACKET RIGHT FENDER
532
SCREW , Replaced By: N308676012012
532
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
534
WASHER
536
NUT SUPPORT TO SIDE MEMBER
544
PLATE RIGHT
552
SCREW STABILIZER TO BEARING
560
SCREW BRACKET TO CAB CONSOLE,K 035197
568
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
576
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
584
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
592
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
600
NUT , Replaced By: N910113014001
600
NUT BRACKET TO SIDE MEMBER
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
SPRING WASHER LEVER MOUNTING
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW , Replaced By: N308676014020
999
COTTER PIN LEVER TO ROD
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
999
WASHER , Replaced By: A6558910210
999
SHIM SHOCK ABSORBER
999
BRACKET RIGHT SHOCK ABSORBER
999
PIN , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
MOUNTING SPRING AND STABILIZER,LEFT
999
STABILIZER , Replaced By: A6528900104
999
MOUNTING ,5 178428, Replaced By: A6218900503, +001A6203100177
999
MOUNTING ,5 178428, Replaced By: A6218900403, +001A6203100177
999
CONSOLE CAB SUSPENSION,FRONT RIGHT
999
CONSOLE CAB SUSPENSION,FRONT LEFT
999
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
999
BEARING BRACKET , Replaced By: A6205531638
999
BEARING BRACKET , Replaced By: A6205531738
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
999
STRUT BUMPER,RIGHT
999
STRUT BUMPER,LEFT
999
REPAIR KIT CAB FRONT SUSPENSION STABILIZER
999
REPAIR KIT CAB FRONT SUSPENSION STABILIZER,5 178428
999
MOUNTING SHOCK ABSORBER, NOT USED
999
CONSOLE CAB SUSPENSION, NOT USED
999
MOUNTING CAB, RIGHT
999
MOUNTING CAB,LEFT
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT SIDE MEMBER
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
WASHER STABILIZER TO BEARING
999
SPRING (LEAF SPRING),CAB SUSPENSION
999
BRACKET BUFFER
999
SPRING CAB SUSPENSION,FRONT
999
SHIM MOUNTING TO CONSOLE
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
SPACER TUBE MOUNTING TO CONSOLE
999
SHACKLE
999
SHACKLE
999
LEVER
999
LEVER , NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
LEVER , NO LONGER AVAILABLE,ORDER INDIVIDUAL PARTS
999
LEVER CAB SUSPENSION
999
RAIL , Replaced By: A6558900122
999
RAIL , Replaced By: A3878901222
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
GUIDE SIGN DANGER AREA IN FRONT OF TILTED CAB
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
WASHER BEARING BRACKET
999
REPAIR KIT CAB SUSPENSION,FRONT
999
GUMMED LABEL CAB LOCKING MECHANISM
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
BUSHING SPRING
999
BUFFER (HOLLOW RUBBER SPRING),CAB
999
FLANGE HOLLOW RUBBER SPRING
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
MOUNTING (RUBBER BUFFER)
999
WASHER BRACKET TO SIDE MEMBER,5 703114
999
PIN PULL TO FASTENER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
PUMP , Replaced By: A0005536501
