Поз.
Артикул
Описание

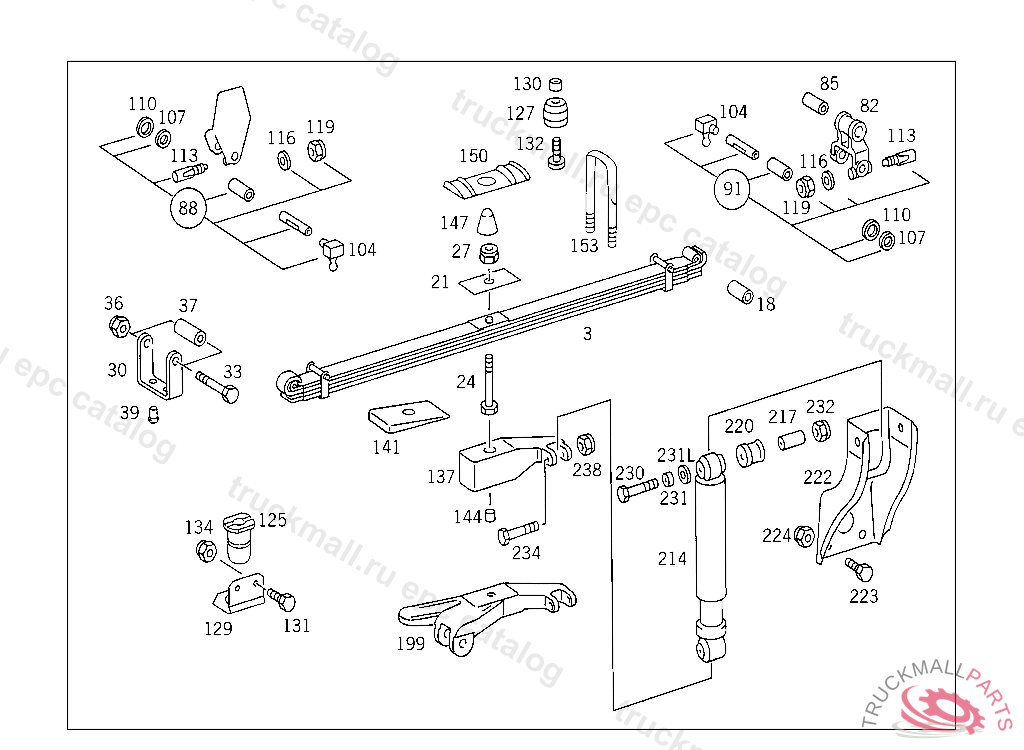

3
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 3,4 7434944 877629
18
BUSHING FRONT
18
BUSHING FRONT
21
SHIM SPRING LEAF
21
SHIM SPRING LEAF
24
SCREW (SPRING BOLT)
24
SCREW (SPRING BOLT)
27
NUT , Replaced By: N910113014000
27
NUT STEERING SUPPORT TO FRAME
30
SPRING CLAMP ,4 7434945 193394, Replaced By: A6203240433, +001N000963012011
30
SPRING CLAMP FRONT SPRING,5 193395
33
SCREW PLATFORM MOUNTING
33
SCREW FOR SPRING CLAMPS
36
NUT SUPPORT TO SIDE MEMBER
37
SPACER TUBE , Replaced By: A0003212753
37
SPACER TUBE SPRING CLAMP
39
RIVET SPRING CLAMP TO SPRING LEAF
82
SHACKLE FRONT SPRING
85
BUSHING FRONT
85
BUSHING FRONT
88
REPAIR KIT , Replaced By: A3953200165
88
SHACKLE PIN PARTS KIT
91
REPAIR KIT , Replaced By: A3953200265
91
SHACKLE PIN PARTS KIT
104
GREASE NIPPLE
107
WASHER AS REQUIRED 4.30 MM
107
WASHER AS REQUIRED 4.20 MM
107
WASHER AS REQUIRED 4.00 MM
110
SEAL RING SPRING SUSPENSION
113
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
116
WASHER RADIATOR TO RUBBER MOUNTING
116
WASHER , Replaced By: N000125010532
119
NUT STRAP TO BRACKET
119
NUT , Replaced By: N910113010000
125
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
129
BRACKET HELPER SPRING
131
SCREW REAR EXHAUST PIPE TO MUFFLER
134
NUT , Replaced By: N910113010000
134
NUT STRAP TO BRACKET
137
SHIM LEFT SHOCK ABSORBER,5 025188
137
SHIM FRONT SPRINGS TO FRONT AXLE
137
SHIM LEFT SHOCK ABSORBER,5 063601
137
SHIM RIGHT SHOCK ABSORBER,5 025188
137
SHIM FRONT SPRINGS TO FRONT AXLE,5 593332
137
SHIM RIGHT SHOCK ABSORBER,5 063601
141
SHIM BETWEEN SPRING AND SHIM,RIGHT, NOT APPLICABLE TO 620.086,096,466, 621.086,096,097,466, 623.068,073,473
144
PIN , Replaced By: A6573310074
144
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
144
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
147
RUBBER BUFFER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6553310044
147
RUBBER BUFFER SPRING STOP
150
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
150
PLATE FRONT SPRINGS TO FRONT AXLE
150
PLATE , Replaced By: A6483310026
150
PLATE FRONT SPRINGS TO FRONT AXLE
153
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
153
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
199
BEARING TORSION BAR,SHOCK ABSORBER,LEFT,5 0251895 184731
199
BEARING TORSION BAR,SHOCK ABSORBER,RIGHT,5 0251895 184731
214
SHOCK ABSORBER , Replaced By: A0063230900
214
SHOCK ABSORBER FRONT AXLE
214
SHOCK ABSORBER , Replaced By: A0043234600
214
SHOCK ABSORBER , Replaced By: A0063230800
214
SHOCK ABSORBER , Replaced By: A0043230100
214
SHOCK ABSORBER , Replaced By: A0063230800
214
SHOCK ABSORBER FRONT AXLE
217
BUSHING , Replaced By: A0003233150
217
SPACER RINGTO 002 323 86 00,003 323 03 00,
217
BUSHINGTO 004 323 52 00
220
RUBBER BUFFER , Replaced By: A0003232885
220
RUBBER BUFFER , Replaced By: A0003232885
220
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
220
RUBBER BUFFER , Replaced By: A0003233144
220
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
230
SCREW , Replaced By: N000960016250
230
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
234
SCREW SHOCK ABSORBER TO TOP BRACKET
238
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
238
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
SCREW BRACKET TO TRANSMISSION
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW SHACKLE TO CONSOLE
999
SCREW , Replaced By: N308676012038
999
SCREW , Replaced By: N308676012012
999
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 4
999
PIN TORSION BAR TO BEARING BRACKET
