Поз.
Артикул
Описание

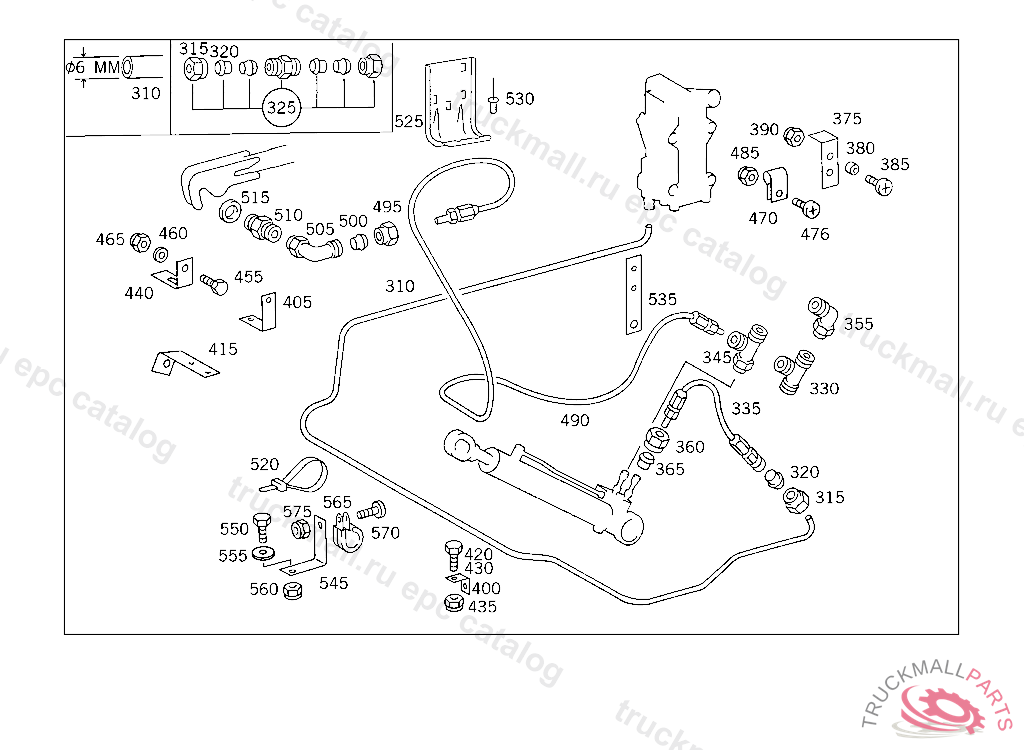

310
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
315
UNION NUT
320
GLAND , Replaced By: A0019901667
320
SEAL CONE
325
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
330
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
330
FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227
335
HOSE FROM HYDRAULIC LINE TO CYLINDER
335
HOSE FROM HYDRAULIC LINE TO CYLINDER
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
360
UNION NUT
365
GLAND , Replaced By: A0019901667
365
SEAL CONE
375
BRACKET OIL LINE MOUNTING,5 129244
380
SPACER TUBE
385
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
385
SCREW CLAMP TO BRACKET
385
SCREW OIL TANK TO BRACKET
390
NUT , Replaced By: N913004006001
390
NUT PUMP TO BRACKET
400
ANGLE LINE MOUNTING
400
ANGLE LINE MOUNTING
415
BRACKET AT CAB SIDE MEMBER
420
SCREW , Replaced By: N304017008021
420
SCREW PIPE CLAMP
430
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
430
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
435
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
435
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
440
BRACKET , Replaced By: A3464296040
440
BRACKET OIL LINE MOUNTING
455
SCREW , Replaced By: N308676012012
455
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
460
WASHER
465
NUT SUPPORT TO SIDE MEMBER
470
CLAMP LINE MOUNTING
470
CLAMP LINE MOUNTING
476
SCREW CLAMP TO BRACKET
476
SCREW CLAMP TO BRACKET
485
NUT PUMP TO BRACKET
485
NUT PUMP TO BRACKET
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
495
UNION NUT
500
GLAND , Replaced By: A0019901667
500
SEAL CONE
505
FITTING , Replaced By: A0019909871
505
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
510
FITTING 3/2-WAY VALVE,CONNECTION: "30"
515
SEAL RING , Replaced By: N007603010110
515
SEAL RING PNEUMATIC VALVE
520
LOOM TIE LINE MOUNTING 280 MM
520
LOOM TIE LINE MOUNTING
525
BRACKET HIGH PRESSURE HOSE TO CAB
530
RIVET , NOT USED
999
GROMMET LINE THRU FRAME
999
FITTINGWEBER,TO 001 553 35 05
