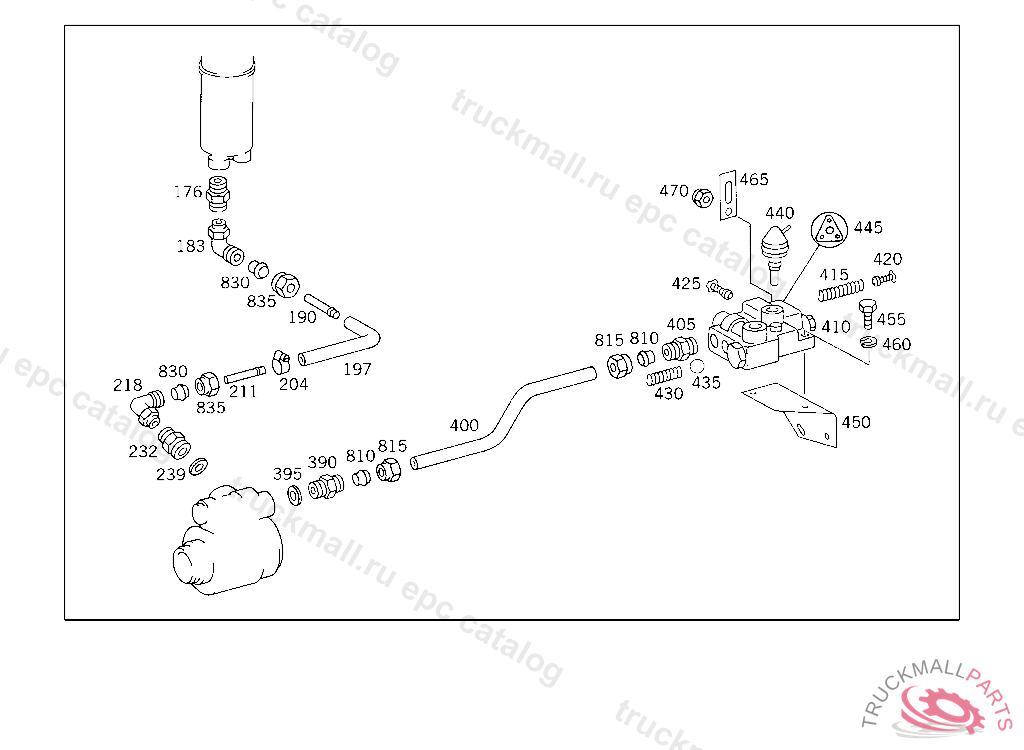

Поз.
Артикул
Описание
176
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
183
FITTING SUCTION LINE TO OIL PUMP
190
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
190
LINE , Replaced By: A3952571466
197
HOSE FROM OIL TANK TO POWER STEERING PUMP AT ENGINE 22.2X31.3 MM, ORDER BY THE METER
204
CLAMP25-40X13 MM
204
LOOM TIE , Replaced By: N000000000668
204
CLAMP , Replaced By: A0069970490
211
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
211
LINE , Replaced By: A3952571466
218
FITTING SUCTION LINE TO OIL PUMP
232
FITTING SUCTION LINE TO OIL PUMP
232
FITTING , Replaced By: A0039971372
239
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
390
FITTING DELIVERY LINE TO OIL PUMP,CIRCUITS I & II
390
FITTING FROM POWER STEERING PUMP TO CUT-IN VALVE
395
SEAL RING LINE CONNECTION
400
LINE FROM POWER STEERING PUMP TO CUT-IN VALVE
400
LINE FROM POWER STEERING PUMP TO CUT-IN VALVE
405
FITTING DELIVERY LINE TO OIL PUMP,CIRCUITS I & II
405
FITTING FROM POWER STEERING PUMP TO CUT-IN VALVE
405
SCREW CONNECTION , Replaced By: A6999970072, +001N003861015004, +001N915017015100
410
VALVE (CUT-IN VALVE),AT FRAME SIDE MEMBER IN FRONT OF STEERING BOX, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
415
SPRING
420
VALVE
425
VALVE
430
SPRING
435
BALL
440
SENDER UNIT STEERING FAILURE
440
INDICATOR , Replaced By: A0105429317
445
GASKET KIT VALVE
450
BRACKET (CUT-IN VALVE),AT TRANSMISSION
455
SCREW BRACKET TO SUPPORT
455
SCREW EXHAUST PIPE TO BRACKET
460
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
465
BRACKET OIL LINES
470
NUT STRAP TO BRACKET
470
NUT , Replaced By: N910113010000
810
GLAND LINE CONNECTION
815
UNION NUT LINE CONNECTION
830
SEAL CONE LINE CONNECTION
830
GLAND , Replaced By: A0019901267
835
NUT LINE CONNECTION
835
UNION NUT LINE CONNECTION, Replaced By: N000000006243
