Mercedes A0025450628 - КЛЕММА

2028 A/6X6 KAT 'A' 2036 A/6X6 KAT 'A' 624.304

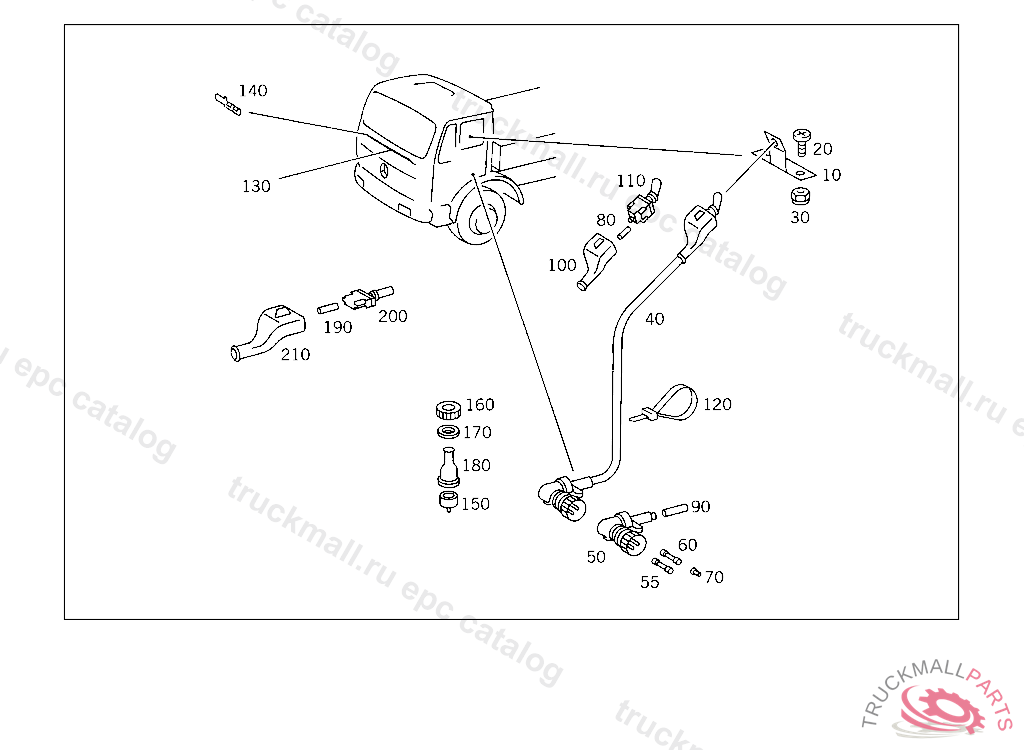

30 CONTROL - 001 KICK-DOWN OPERATING MECHANISM

Поз.
Артикул
Описание
10
A6245460143
BRACKET ELECTRIC CABLE
20
N000000001146
SCREW CLAMP MOUNTING M 6X16
20
N007985006193
SCREW , Replaced By: N000000001146
30
N913004006001
NUT PUMP TO BRACKET
30
N913004006002
NUT , Replaced By: N913004006001
40
A6245400127
ELECTRIC CABLE FROM BUZZER SIGNAL SYSTEM PLUG SOCKET TO BUZZER SIGNAL SYSTEM SWITCH
50
N999854020501
PLUG
55
A0005450683
CONTACT PIN
60
A0005450383
CONTACT PIN TO PLUG THE BORES
70
A0001592238
CABLE SLEEVE
80
A3809970082
HOSE
90
A0009970581
GROMMET5.0 MM
100
A3805460835
BOOT
110
A0015455207
SWITCH
120
A0019978490
LOOM TIE LINE MOUNTING
130
A6245407636
ELECTRIC CABLE FROM SWITCH TO PLUG SOCKET
140
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
150
A0055454528
PIN BUSHING HOUSING 4-POLE
160
A0009904954
NUT
170
A0019906440
WASHER
180
A0029970781
GROMMET
190
A0009970581
GROMMET5.0 MM
200
A0015455207
SWITCH
210
A3805460835
BOOT
