Поз.
Артикул
Описание

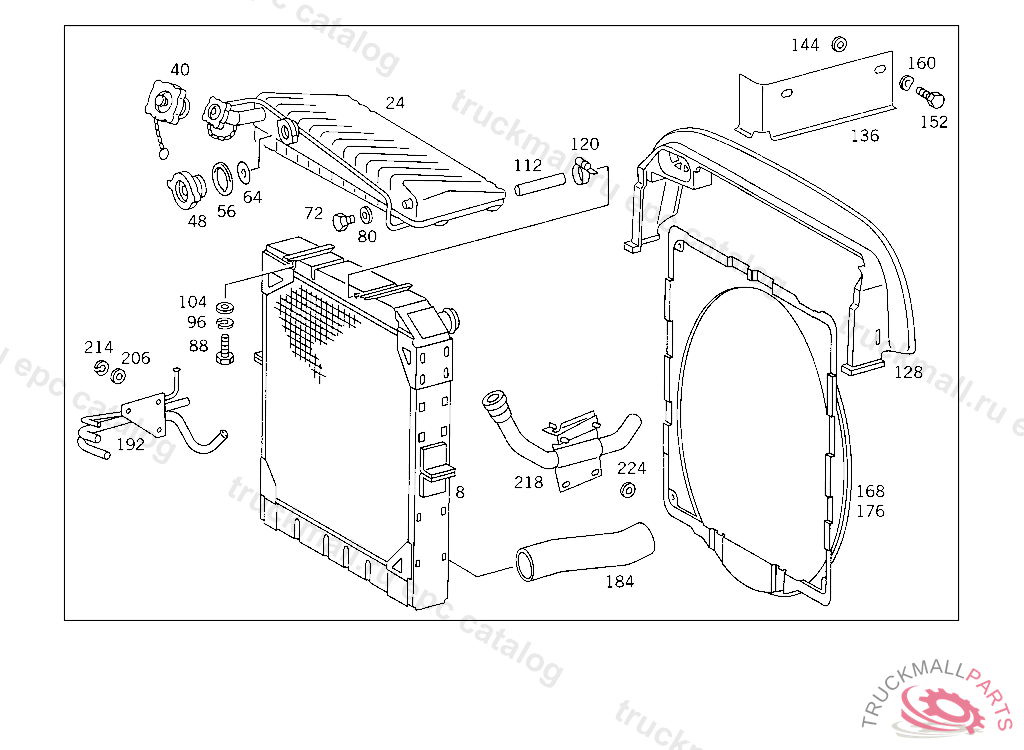

8
RADIATOR
8
RADIATOR WATER
8
RADIATOR"BEHR"
8
RADIATOR WATER
8
RADIATOR , Replaced By: A0005001103
8
RADIATOR WATER,5 337827
8
RADIATOR WATER
24
TANK EXPANSION TANK
24
TANK EXPANSION TANK
24
TANK EXPANSION TANK
24
TANK ON RADIATOR
40
RADIATOR CAP FILLER NECK
40
RADIATOR CAP FILLER NECK
48
RADIATOR CAP CENTRAL
48
RADIATOR CAP CENTRAL
56
GASKET O.D., 52 MM
64
GASKET O.D., 37 MM
72
SCREW PLUG WATER DRAIN
72
SCREW PLUG , Replaced By: N007604014101
80
SEAL RING FUEL LINE TO FEED PUMP
88
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
88
SCREW , Replaced By: N304017008016
96
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
104
WASHER , Replaced By: N000125008443
104
WASHER EXHAUST MUFFLER TO STRAP
112
HOSE OVERFLOW, EXPANSION TANK
120
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
120
CLAMP , Replaced By: N916017011001
128
BOOT , Replaced By: A6205050286
128
BOOT RADIATOR
128
BOOT RADIATOR
136
BRACKET BOOT
144
WASHER , Replaced By: N000125006421
144
SPACER RING , Replaced By: A3059900740
144
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
144
WASHER COMPRESSED AIR LINE TO BRACKET
152
SCREW LICENSE PLATE TO BRACKET
152
SCREW , Replaced By: N304017006020
160
WASHER , Replaced By: N009021006208
160
WASHER COMPRESSED AIR LINE TO BRACKET
168
BRACKET OIL DIPSTICK TO RADIATOR
176
FAN SHROUD RADIATOR
176
FAN SHROUD RADIATOR
184
HOSE FROM RADIATOR TO WATER PUMP,5 193595
184
HOSE FROM RADIATOR TO WATER PUMP,5 193594
184
HOSE FROM RADIATOR OUTLET TO WATER PUMP
184
HOSE , Replaced By: A6555011282
184
HOSE FROM RADIATOR TO WATER PUMP
192
LINE (HEATING PIPE)
192
LINE HEATING AND BREATHING
192
LINE (HEATING PIPE)
206
WASHER COMPRESSED AIR LINE TO BRACKET
206
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
214
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
218
PIPE ELBOW
224
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
224
WASHER COMPRESSED AIR LINE TO BRACKET
999
CLAMP , Replaced By: N916017011000
999
PIPE ELBOW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 424343, Replaced By: A6555200406
