Поз.
Артикул
Описание

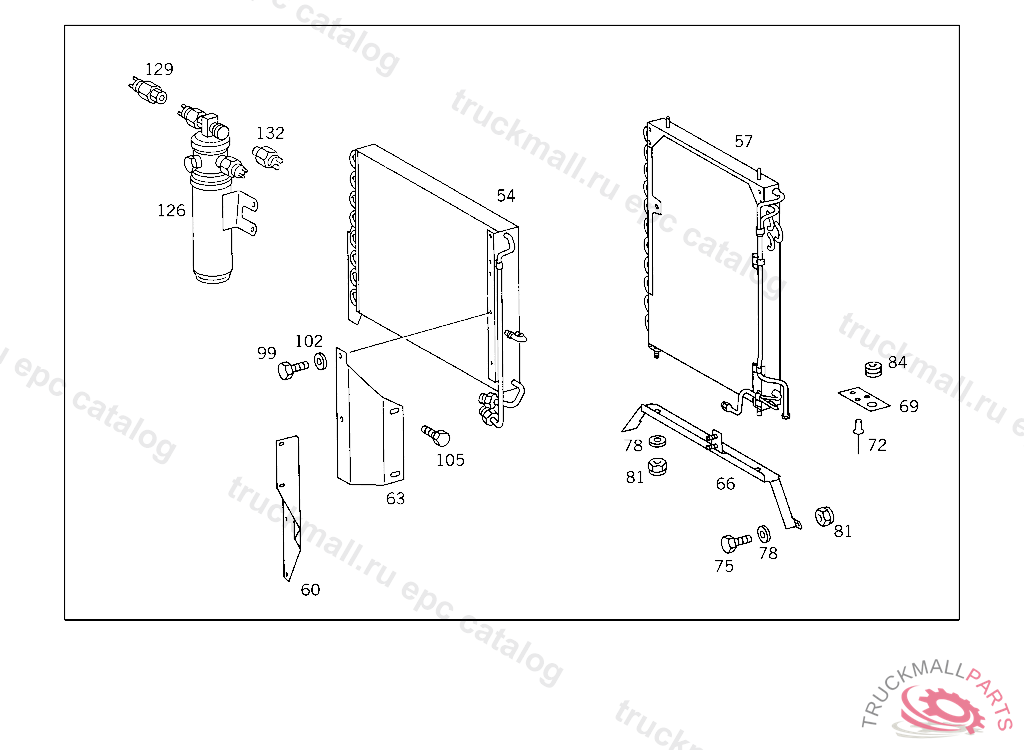

54
CONDENSER AIR CONDITIONER
57
CONDENSER AIR CONDITIONER
57
CONDENSER , Replaced By: A0005001254
60
ANGLE CONDENSER TO RADIATOR
63
ANGLE CONDENSER TO RADIATOR
66
BRACKET CONDENSER TO CHARGE AIR INTERCOOLER
69
BRACKET FROM COMPRESSOR TO CONDENSER
72
RIVET BRACKET TO CHARGING AIR INTERCOOLER
75
SCREW COVER PLATE TO BRACKET
78
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
78
WASHER COMPRESSED AIR LINE TO BRACKET
78
WASHER COMPRESSED AIR LINE TO BRACKET
81
NUT , Replaced By: N913004006001
81
NUT PUMP TO BRACKET
81
NUT PUMP TO BRACKET
84
GROMMET CONDENSER TO BRACKET
99
SCREW , Replaced By: N304017006018
99
SCREW COVER PLATE TO COVER PLATE M 6 X 12
99
SCREW COVER PLATE TO COVER PLATE M 6 X 12
102
WASHER COMPRESSED AIR LINE TO BRACKET
102
WASHER COMPRESSED AIR LINE TO BRACKET
102
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
105
SCREW , Replaced By: A6739900032
105
SCREW DE-AERATION LINE TO RADIATOR
105
SCREW DE-AERATION LINE TO RADIATOR
126
TANK REFRIGERANT
129
SWITCH HIGH PRESSURE
132
SWITCH LOW PRESSURE
999
NUT BRACKET TO PIN
999
SEAL RING
999
SEAL RING , Replaced By: A1409970945
999
HOSE FROM LIQUID TANK TO EXPANSION VALVE
