Mercedes A6289700074 - ZB AUFNAHME (L

O 530 NUE3 EURO 3 628.048

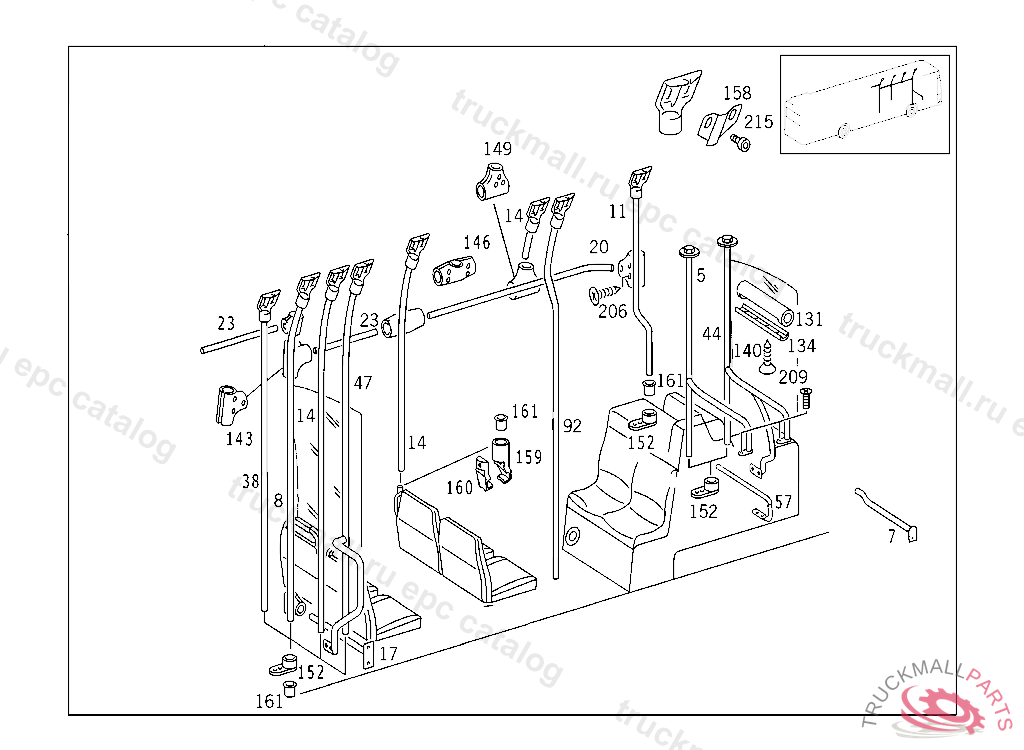

81 APPOINTMENTS - 425 GRIP RAILS,COMMUNICATOR SYSTEM BUTTON, FRONT LEFT IL. 1

Поз.
Артикул
Описание
131
A6288151365
PAD
134
A3058140235
LEDGE
140
N914127004202
SHEET METAL SCREW BRACKET TO FIRE WALL
140
N007983003281
SHEET METAL SCREW ENTRANCE PARTITION PANEL
143
A6288150214
BRACKET
146
A6288150314
BRACKET GRIP RAIL MOUNTING, STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
152
A6288150514
BRACKET AT VERTICAL GRIP RAIL,BOTTOM, NO.7365I.......I.......I.......I.......I....... I TO BE ADAPTED DURING ASSEMBLY
158
A6288150714
BRACKET
159
A6289700074
REST LEFT
160
A6289730048
CLIP LEFT
206
N007983003288
SHEET METAL SCREW3,9X19 MM
209
N007991008009
SCREW COVER TO OIL PAN M8X20
215
N914112008033
SCREW PROTECTION PLATE TO BRACKET
215
A6288150074
SCREW AT GRIP RAIL
215
N304017008007
SCREWM 8X20
999
A6289870143
RUBBER SLEEVE
