Поз.
Артикул
Описание
8

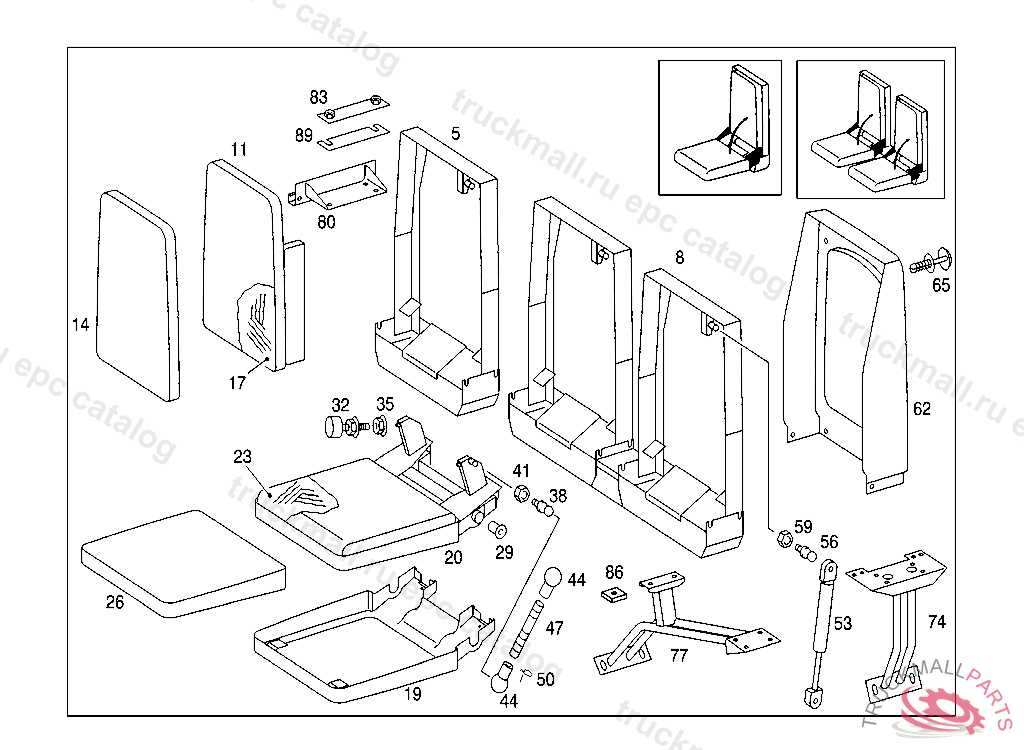

SEAT FRAMEWORKTO A6289300005 / A6289300105, .......I.......INO.7E87I.......I II
11
BACKRESTTO A6289300005 / A6289300105
11
BACKREST INDIVIDUAL FOLDING SEAT
14
PAD
17
COVER , STATE COLOR WHEN ORDERING
20
SEAT CUSHION INDIVIDUAL FOLDING SEAT
20
SEAT CUSHIONTO A6289300005 / A6289300105
23
COVER , STATE COLOR WHEN ORDERING
26
PAD
32
BUFFER LEFT, FROM CHASSIS: 010 077937
35
NUT SPRING-LOADED PUSH ROD
38
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
38
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
41
NUT BRACKET TO FIRE WALL
41
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
44
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
47
STUD BOLT. STUD
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
GAS PRESSURE SPRING BACKREST
56
BALL PIVOT ACCELERATOR PEDAL,4 859026
59
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
62
PANELLING BACKREST
65
RIVET COVERING TO BODY
77
SEAT BASE SEAT FRAME, DUAL SEAT
80
SUPPORT
86
PLATE
89
PLATE TOLERANCE COMPENSATION
999
ROD
999
SUPPORT SEAT FRAMEWORK
