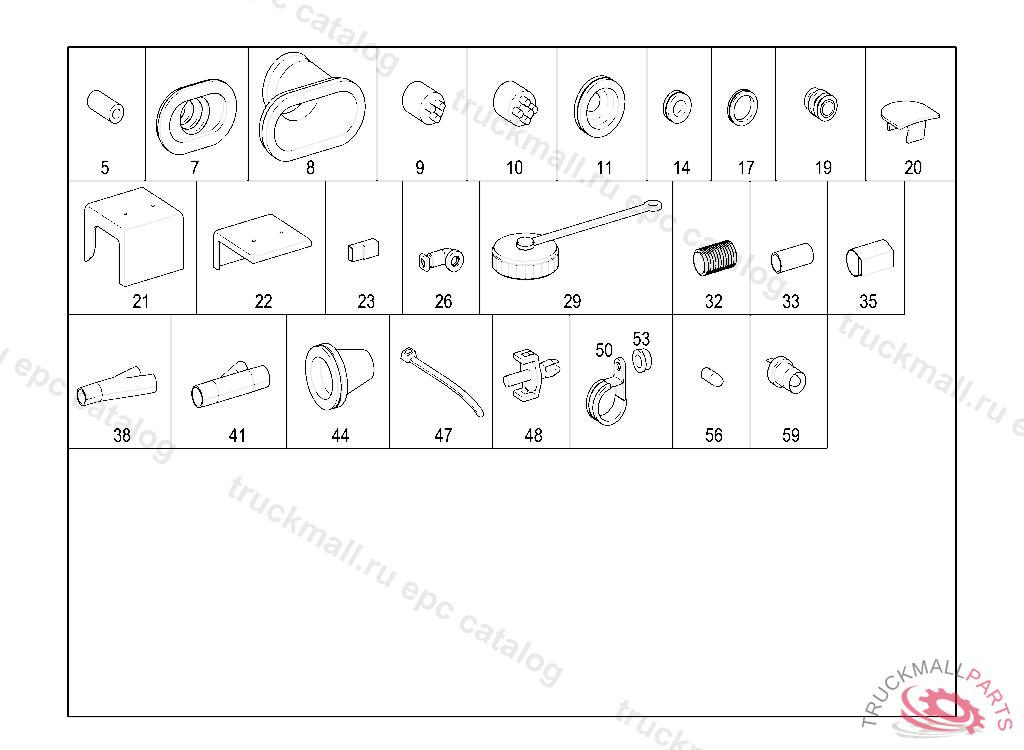

Поз.
Артикул
Описание
5
GROMMET3.0 MM
5
GROMMET5.0 MM
5
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
5
GROMMET LINE MOUNTING 10.0 MM
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
5
GROMMET1.75 MM
7
CABLE PASSAGE FOR CABLE HARNESS DIA.: 18MM (100X75MM)
8
GROMMET
9
GROMMET ELECTRIC CABLE
10
GROMMET 4-POLE
11
GROMMET
11
GROMMET
11
GROMMET TEMPERATURE GAUGE SENDER UNIT
11
GROMMET BREATHER LINE
14
GROMMET FOR PASSAGE OF LINE
17
GROMMET 34 MM
17
GROMMET REGULATOR FEED CABLE TO VENTILATION DUCT, 017121521009
19
GASKET. BLIND PLUG
20
BOOT POS. POLE
21
COVERING POS. POLE
21
COVERING POS. POLE
22
COVERING POS. POLE
22
BOOT POS. POLE
23
BOOT PIN BUSHING
26
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
29
CAP DIAGNOSIS PLUG SOCKET
32
INSULATING HOSE SOFT PVC WITHOUT FABRIC 7 X 0.7MM, ORDER BY THE METER
32
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
32
INSULATING HOSE ELECTRONICS AT SUPPORT, ORDER BY THE METER
32
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
32
INSULATING HOSE6X0.5 MM, ORDER BY THE METER
32
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
32
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 26 MM
32
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
32
ACCORDION TUBE SLIT 23X28MM, ORDER BY THE METER
32
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
32
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
32
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
32
ACCORDION TUBE SLIT 17X21MM, ORDER BY THE METER
33
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
33
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
33
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
33
INSULATING HOSE6X0.5 MM, ORDER BY THE METER
33
INSULATING HOSE ELECTRONICS AT SUPPORT, ORDER BY THE METER
33
INSULATING HOSE SOFT PVC WITHOUT FABRIC 7 X 0.7MM, ORDER BY THE METER
35
HOSE
35
HOSE I.D., 30MM, ORDER BY THE METER
35
HOSE WITH ADHESIVE FASTENER, WIDTH, 170 MM, ORDER BY THE METER
35
HOSE (PROTECTIVE HOSE), TO BE ORDERED ONLY FROM MESSRS FA.ZIPPERTECHNIK GMBH NEU-ISENBURG ORDER BY THE METER
38
MOLDED PIECE17-13-10
38
MOLDED PIECE8.5-8.5-8.5
38
MOLDED PIECE22-22-8.5
38
MOLDED PIECE17-10-10
38
MOLDED PIECE22-22-10
38
MOLDED PIECE17-13-13
38
MOLDED PIECE22-22-13
38
MOLDED PIECE13-10-10
38
MOLDED PIECE17-17-10
38
MOLDED PIECE10-8.5-8.5
38
MOLDED PIECE
41
MOLDED PIECE26-26-17
41
MOLDED PIECE26.0-22.0-17.0
41
MOLDED PIECE10-10-10
41
MOLDED PIECE26.0-26.0-10.0
41
MOLDED PIECE13-10-8.5
41
MOLDED PIECE17-17-8.5
41
MOLDED PIECE13-13-8.5
41
MOLDED PIECE17-10-8.5
41
MOLDED PIECE22-17-13
41
MOLDED PIECE22-17-17
44
GROMMET FOR BORE 60MM
44
GROMMET FOR CABLE HARNESS DIA.: 10-14MM
44
GROMMET FOR CABLE HARNESS DIA.: 7-10MM
44
GROMMET FOR CABLE HARNESS DIA.: 14-20MM
47
LOOM TIE
47
LOOM TIE LINE MOUNTING
47
CABLE TIE IONIC EXCHANGER 380X7.8MM
47
LOOM TIE LINE MOUNTING 280 MM
48
BRACKET
50
CLAMP OIL LINE TO BRACKET
50
CLAMP CLAMP TO CROSS MEMBER 42/20
50
CLAMP COOLING WATER HOSES
50
CLAMP BRAKE HOSE BRACKET
50
CLAMP FRONT END MAIN CABLE HARNESS TO WINDOW SILL
50
CLAMP
50
CLAMP HOSE TO FLANGE AND TO VALVE
53
NUT BALL PIVOT TO LEVER
56
BULB TAIL LAMP 21 W
56
BULB , Replaced By: N072601024704
59
BULB TELL-TALE LAMP 24 V/1,2 W
