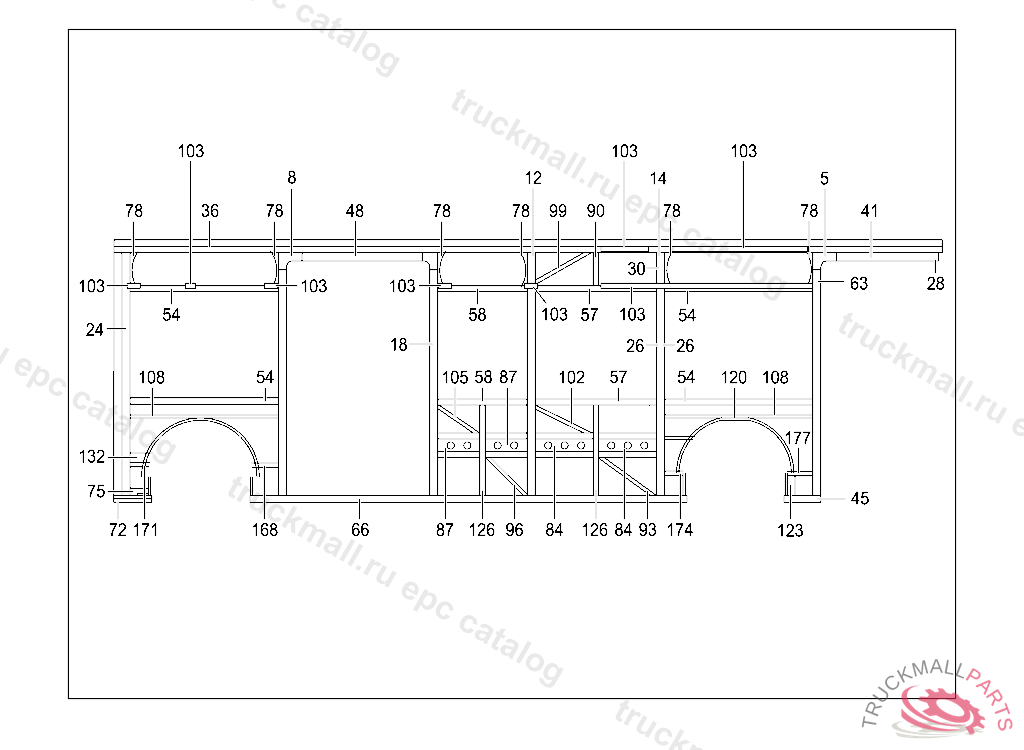

Поз.
Артикул
Описание
5
PILLARNO. 1 + 5
5
PILLAR
8
PILLAR
12
PILLAR PART
12
PILLAR PART
14
PILLARNO. 2
14
PILLAR
14
PILLARNO. 2
18
PILLARNO. 2 + 3
24
PILLARNO. 6
26
SPRING
28
REINFORCEMENT
30
REINFORCEMENT
36
SUPPORT TOP
41
FRAME FRONT DOOR
45
48
FRAME DOOR,TOP
54
SUPPORT
54
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
57
SUPPORT
58
SUPPORT
63
STRUT
66
SUPPORT
66
SUPPORT BOTTOM
72
SUPPORT BOTTOM
72
75
SUPPORT
78
REINFORCEMENT TOP
84
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
84
SUPPORT
87
SUPPORT
90
STRUT
90
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
93
STRUT
96
STRUT
99
STRUT
102
STRUT
103
RAIL LENGTH AVAILABLE: 2460 MM, TO BE ADAPTED DURING ASSEMBLY
105
STRUT
108
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
120
WHEEL BOW
120
WHEEL BOW FRONT WHEEL BOW
123
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
123
126
PILLAR PART
132
REINFORCEMENT
132
REINFORCEMENT
168
171
174
177
SUPPORT
