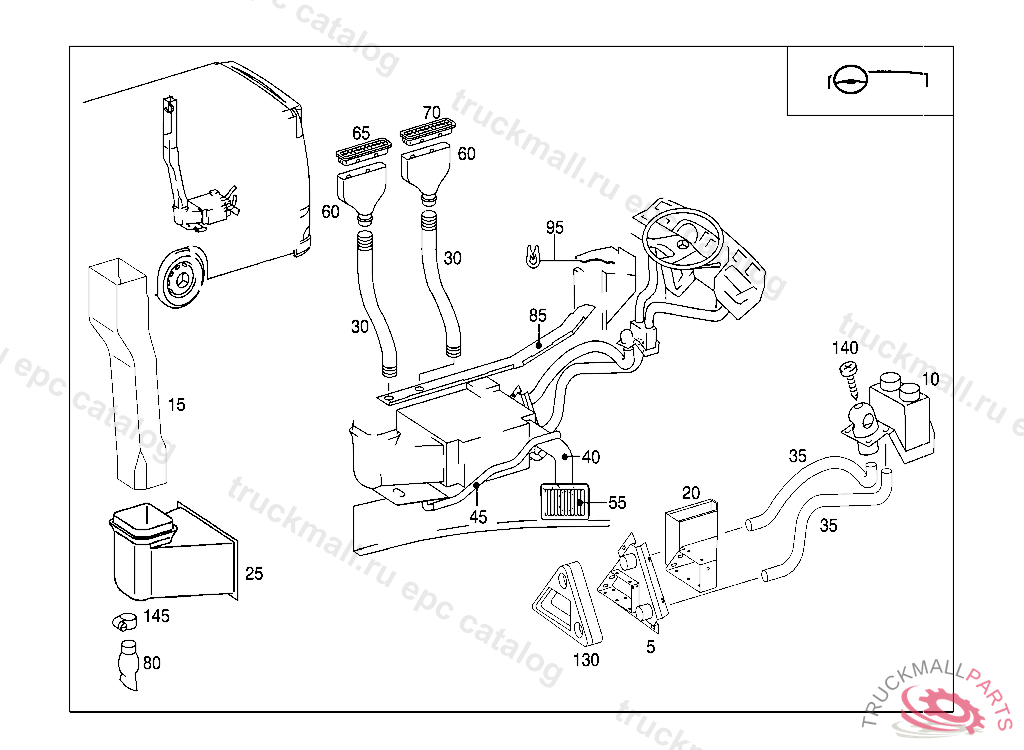

Поз.
Артикул
Описание
5
DISTRIBUTOR
10
AIR DISTRIBUTOR INSIDE,BELOW INSTRUMENT PANEL
10
AIR DISTRIBUTOR INSIDE,BELOW INSTRUMENT PANEL
15
DUCT
20
DUCT
25
AIR DUCT COOLING AIR INTAKE
30
AIR TUBE DRIVER'S WINDOW D29MM
35
AIR TUBE BETWEEN HEATER AND AIR DISTRIBUTOR TO BRACKET D48MM
40
AIR TUBE BETWEEN HEATER AND DRIVER'S SEAT PEDESTAL D90MM
45
AIR TUBE DRIVER VENTILATION FROM REAR D29MM
55
AIR BAFFLE DRIVER'S PEDESTAL
60
CONNECTOR VENTILATION DRIVER'S WINDOW
65
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
70
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
80
VALVE , 000,001,004,010 FROM CHASSIS 152806,002,003,005,011 FROM CHASSIS 012120,100,101,104,110 FROM CHASSIS 267733
85
COVER , UP TO IDENT NO. 102843
85
FLAP , FROM IDENT NO. 102844
95
EDGE GUARD SECTION , ORDER BY THE METER
130
SEAL
140
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
145
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
145
CLAMP , Replaced By: N916026020001
