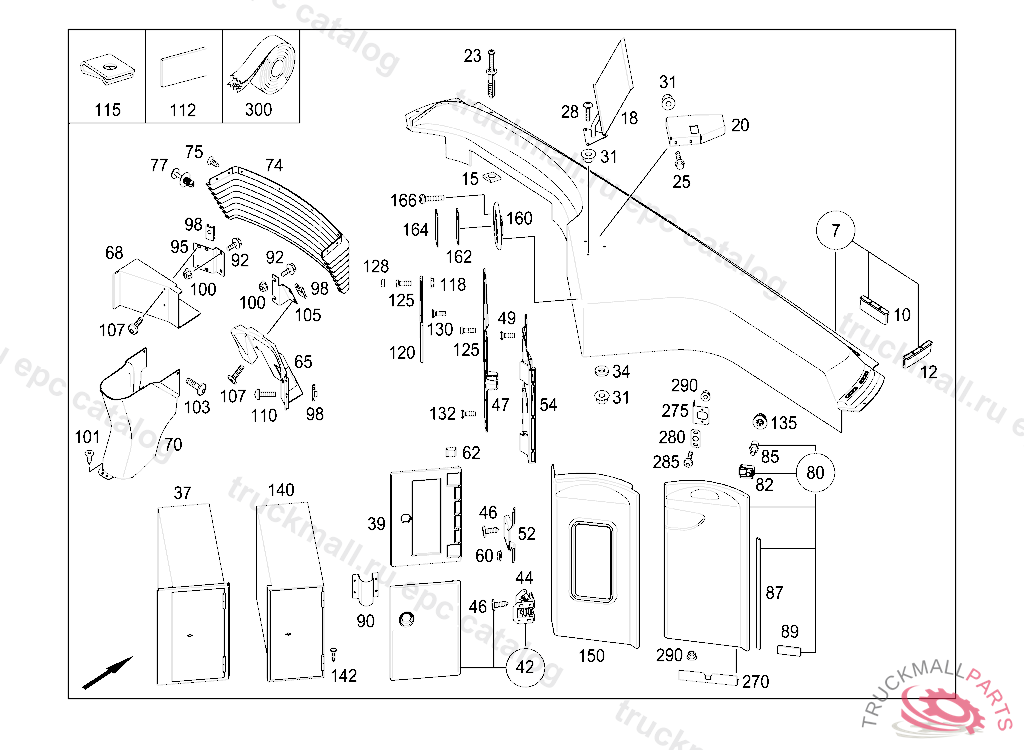

Поз.
Артикул
Описание
7
PANELLING WINDOW SILL 2550 MM, NO.7C52INO.8316 I I II I
10
AIR DUCT WITH STRAIGHT DISKS
12
DEFROSTER NOZZLE WITH SLANTING DISKS
15
COWLING COCKPIT AREA
18
BRACKET SCHEDULE BOARD, NO.7327I....... I I II I .......INO.8425 I I II I
20
BRACKET
23
RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
25
SCREW , Replaced By: N914146006102
28
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
31
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
34
WASHER , Replaced By: A6739901140
37
PIGEONHOLE STRONG-BOX, NO.7331I....... I I II I
39
PANELLING PIGEONHOLE, NO.7C52I....... I I II I
42
STORAGE SPACE LOST PROPERTY COMPARTMENT,....... I NR.7E86 I ....... I ....... I ....... II
44
HINGE
46
TAPPING SCREW MOUNTING PLATE 3.5X9.5
47
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
49
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
52
CONSOLE
54
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
60
NUT-AND-WASHER ASSEMBLY. NUTM4
60
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
62
RUBBER BUFFER TO GLASS PANE,BOTTOM
65
COVERING LEGROOM,RIGHT, NO.7C01I....... I I II I
65
COVERING LEGROOM,RIGHT
68
COVERING LEGROOM,LEFT, NO.7C01I....... I I II I
70
COVERING
74
PANELLING BELLOWS
75
SHEET METAL SCREW ,F 122555
77
RIVET RESERVOIR TO FIRE WALL
80
STORAGE SPACE FIRE EXTINGUISHER, NO.7327I.......I I I II
80
STORAGE SPACE FIRE EXTINGUISHER,....... I NR.7E86 I ....... I ....... I ....... II
82
LOCK NUT. SPRING NUT STEP TO ENTRANCE
85
CLEVIS PIN W HEAD
87
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 6X15MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
89
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 3X10MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
90
BRACKET
92
SCREW , Replaced By: N910143008002
95
BRACKET
98
SOCKET NUT
100
NUT HORN TO BRACKET M8
101
TAPPING SCREW3.5X19
103
SCREW BRACKET TO COVERING
105
BRACKET LEGROOM,RIGHT
107
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
110
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
112
TOTAL FOAMED MATERIAL USE10X0,8MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
115
SPRING-THREAD NUT PROTECTIVE PLATE
118
NUT RELAY TO BRACKET M5
120
LUGGAGE NET
125
HEX. SKT. CAP BOLTM5X16MM
128
CAP
130
SCREW W HEXAGON SOCKETM5X16MM T25
132
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
135
PLUG CONNECTION
140
STRONGBOX
142
SHEET METAL SCREW BRACKET TO FIRE WALL
150
COVERING FIRE EXTINGUISHER ACCOMMODATION
160
COVERING ,....... I ....... I NR.7E87 I ....... I ....... II
162
PLATE
164
ADHESIVE TAPE
166
TAPPING SCREW3,5X13
270
BRACKET FIRE EXTINGUISHER
275
BRACKET FIRE EXTINGUISHER
280
CONNECTING SHEET
285
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
290
NUT-AND-WASHER ASSEMBLY. NUTM4
300
ADHESIVE FASTENER SECONDARY SWITCHBOARD
