Mercedes N304032012001 - Гайка / mutter

O 530 LOW ENTRY 12M, 2-TUERER 628.583

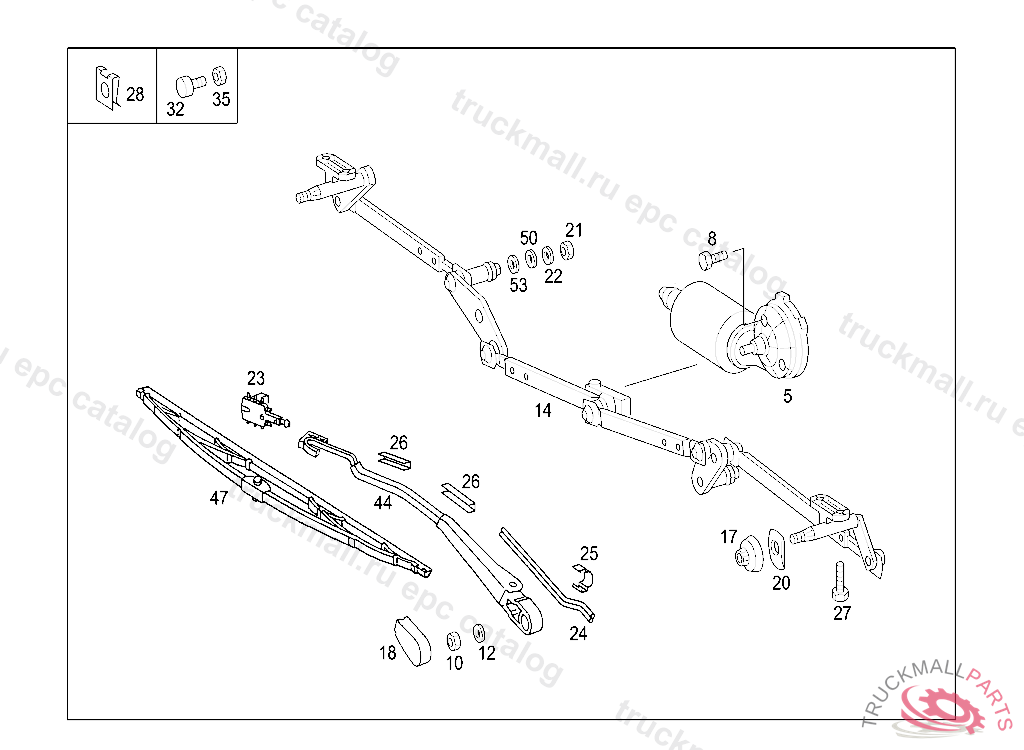

82 ELECTRICAL SYSTEM - 630 WINDSHIELD WIPER SYSTEM IL. 1

Поз.
Артикул
Описание
5
A0058208342
ELECTRIC MOTOR
8
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
10
N304032012001
NUT BRACKET TO FRAME
12
N000137012206
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
14
A6288200340
WIPER ASSEMBLY
17
A0008245749
CAP
18
A0008246049
CAP
20
A0008240323
BOOT
21
A0008243872
NUT SWITCH TO INSTRUMENT PANEL,213840
22
A0008246082
WASHER
23
A0008602747
NOZZLE
24
A0008693494
HOSE
25
A0079889678
CLIP
26
A0008240065
CLAMPING PIECE
27
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
28
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
32
A3579880011
BUFFER (STOP BUFFER), UP TO IDENT NO. 085164 EXCEPT FOR 080637,083620,083621,084073,084350,084353,084354,084355,084356,084635,084679,084951.
35
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
44
A6288200144
WIPER ARM LEFT
44
A6288200244
WIPER ARM RIGHT
47
A0018200745
WIPER BLADE
50
A0008240280
WASHER
53
A0008247782
WASHER
