TRAVEGO 17 SHD 3 - ACHSER
632.012
86 EMERGENCY EQUIPMENT
165 TOILET IL. 2

Mercedes A0008602560 - ZB WASSERBEHAELTER

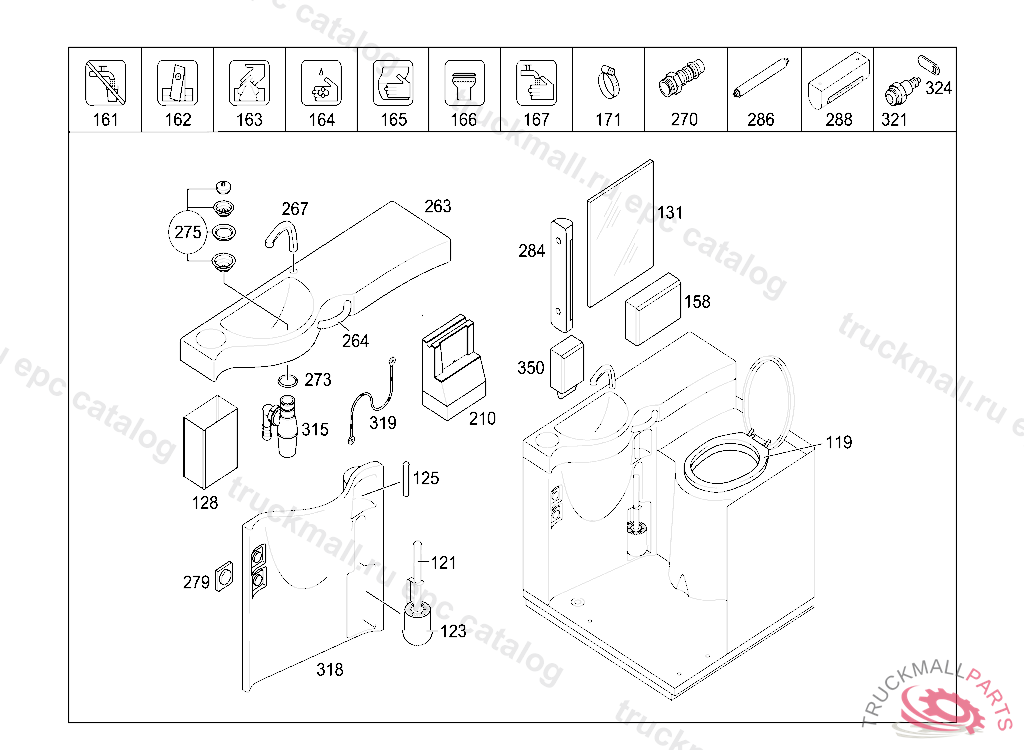

TRAVEGO 17 SHD 3 - ACHSER 632.012

86 EMERGENCY EQUIPMENT - 165 TOILET IL. 2

Поз.
Артикул
Описание
119
Q8753090000
SEAT
121
A0008990136
BRUSH , Replaced By: Q8753044000
123
A0008633214
BRACKET WITHOUT BRUSH
125
A3018662814
BRACKET TOILET PAPER
128
A0008661420
RECEPTACLE
131
A0008660975
MIRRORACRYLGLAS
158
A0008660972
SOAP DISTRIBUTOR INSIDE PART
161
A0018170021
GUIDE SIGN SYMBOL: NO DRINKING WATER
162
A0018170121
GUIDE SIGN SYMBOL: DISPOSAL OF SANITARY BAG
163
A0018170221
GUIDE SIGN SYMBOL: LITTER-BIN
164
A0018170321
GUIDE SIGN SYMBOL: LITTER-BIN
165
A0018170421
GUIDE SIGN SYMBOL: TOWEL DISTRIBUTOR
166
A0008179921
GUIDE SIGN SYMBOL: TOILET FLUSHING
167
A0008179821
GUIDE SIGN WASHER FLUID
171
A0008660491
CLAMP20-32
210
A0008602560
WATER CONTAINER
263
A0008601263
SINK
263
A0008601163
SINK
264
A0009880630
BOW-TYPE HANDLE
267
A0008603562
DRAINAGE COCKMODERN
270
A0009975371
FITTING SCREW-IN FITTING 6 R 3/8"
273
A0199978445
SEAL RING1 1/4"
275
A0008660852
VALVE1 1/4"
279
A6298200510
SWITCH ILLUMINATED
279
A0028216151
SWITCH
284
A0008257301
INTERIOR LIGHT COMPLETE 24 V8 W
286
A0008253795
FLUORESCENT TUBE
288
A0008250508
COVERING LENS
315
A0008661759
WASTE TRAP
318
A0008600963
WASH-BOWL FRONT COVER
319
A0009830815
CORD
321
A0028604969
FASTENER
324
A0009883243
EYE
350
A6298200897
HAND DRIER ELECTRIC
999
A0008661398
SEAL
999
A0009857945
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
A0028602269
LOCKKASTEN
999
A4104203630
COMPRESSED AIR LINE
999
A6298600060
RESERVOIR ASHTRAY
999
A6298660069
FASTENER
999
Q179751611102
SEALMOOSGUMMIRING
999
Q4343171000
SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
