Mercedes A0029872640 - ANSCHLAGPUFFER

TRAVEGO 17 SHD 3 - ACHSER 632.012

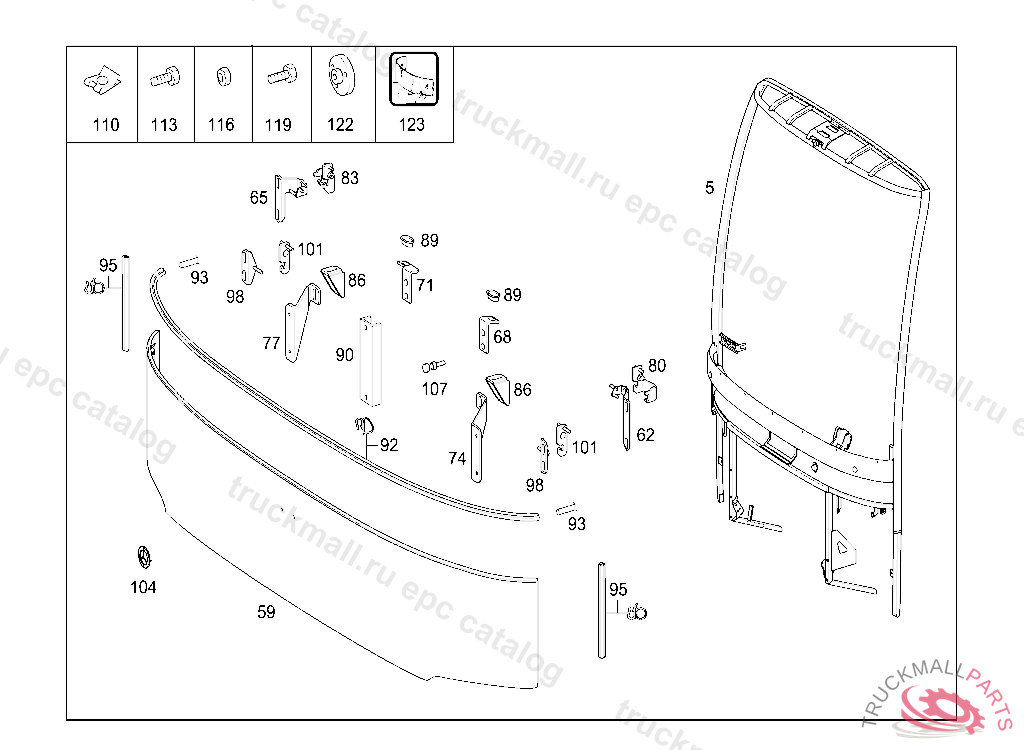

62 COWL,FRONT PANEL - 030 COWL IL. 1

Поз.
Артикул
Описание
5
A6326200302
FRONT PANEL
59
A6326270108
COVERING
62
A6326200015
CONSOLE LEFT
65
A6326200515
CONSOLE RIGHT
68
A6296270014
BRACKET97X30MM
71
A6296270614
BRACKET
74
A6326251514
BRACKET LEFT
77
A6326251614
BRACKET RIGHT
80
A6326200614
BRACKET LEFT
83
A6326200714
BRACKET RIGHT
86
A6326270014
BRACKET
86
A6296250914
BRACKET
89
A0009927905
BUSHING8,3X20MM
90
A6326270114
BRACKET
92
A0009872562
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
93
N040621010200
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
95
A0009871762
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
A6326200615
CONSOLE
101
A6326201014
BRACKET
104
A6738100018
BADGE COWL TOP FLAP
107
A0029872640
RUBBER BUFFER
110
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
113
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
116
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
119
N910105006002
HEXAGON HEAD BOLT
122
A0049883378
CLIP TYPE DESIGNATION TO CAB
123
A6296280100
GUMMED LABEL
