TRAVEGO 17 SHD 3 - ACHSER
›
632.012
›
52 SHEET METAL,AIR INTAKE
›

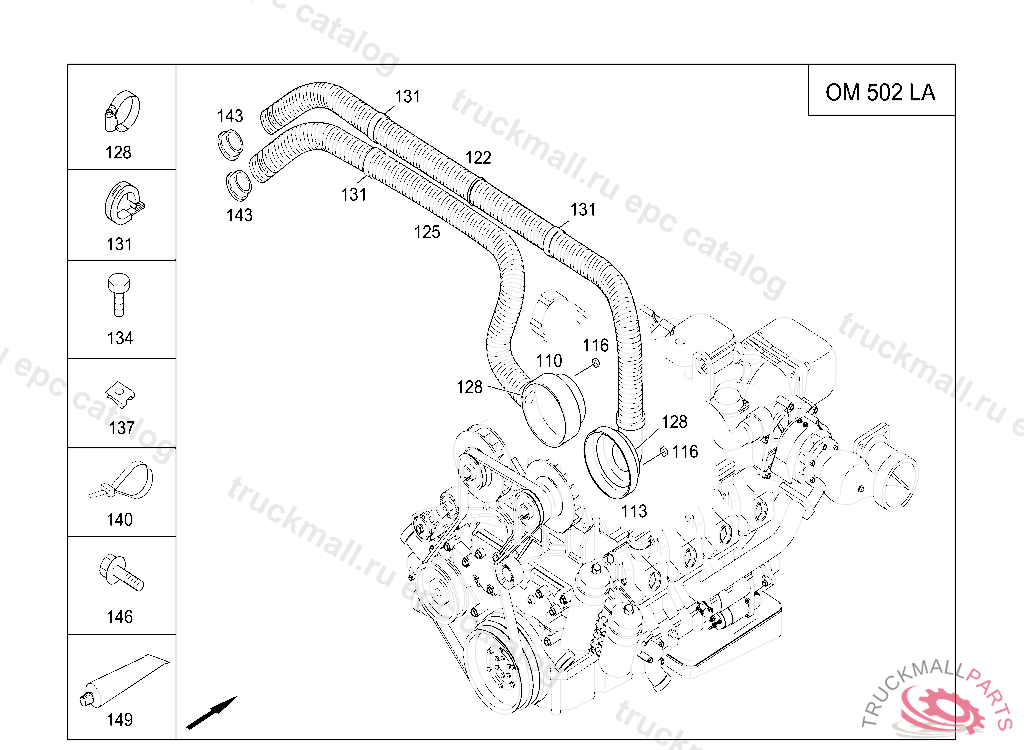

120 AIR INTAKE IL. 4
Mercedes A4071540165 - КРЫШКА
TRAVEGO 17 SHD 3 - ACHSER 632.012
52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 4
Поз.
Артикул
Описание
110
A4571540304
COVER
113
A4071540165
COVER
113
A4421540104
COVER WITH AIR INTAKE. COVER
116
N913023006002
NUT BRACKET TO FIRE WALL
116
N910112006001
NUT , Replaced By: N913023006001
122
A0069977352
SUCTION HOSE1650MM
122
A0029976552
HOSE1600MM, Replaced By: A0069977352
125
A0069976752
SUCTION HOSE1200MM
125
A0029973852
HOSE1420MM
125
A0069976652
SUCTION HOSE1420MM
125
A0029973752
HOSE1200MM
128
N000000003529
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
128
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
131
N000000003186
CLAMP76/25MM, Replaced By: N000000006128
131
N000000006128
CLAMP76/25MM
134
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
134
N000933006058
SCREW OIL TANK TO CLAMP
137
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
137
A0039941545
NUT
140
A0079973190
CABLE STRAP7.8X465
143
A0005280001
PROTECTIVE GRILLE ALTERNATOR AIR INTAKE
146
N910105008039
SCREW , Replaced By: N910143008002
149
A0079899071
SEALING CEMENT225G
