Главная
›
Mercedes
›
BUS
›
TRAVEGO 17 SHD 3 - ACHSER
›
632.012
›
49 EXHAUST SYSTEM
›

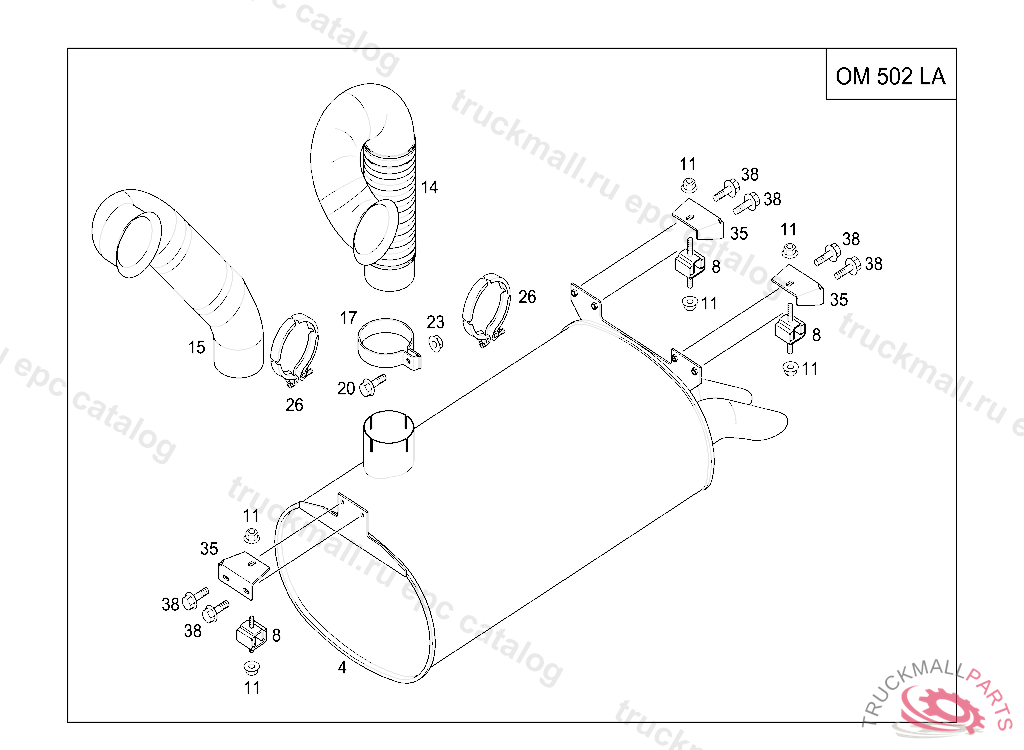

030 EXHAUST SYSTEM IL. 1
Mercedes A6294902310 - Труба выхлопная
TRAVEGO 17 SHD 3 - ACHSER 632.012
49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 1
Поз.
Артикул
Описание
4
A6294910700
MUFFLER
8
A0004910285
RUBBER MOUNTING
11
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
14
A6294901910
EXHAUST PIPE , Replaced By: A6294902310
14
A6294900810
EXHAUST PIPED120, Replaced By: A6294901910
15
A6294902310
EXHAUST PIPE
17
A6294910040
CLAMP
17
A0004921240
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
17
A6554920140
CLAMP , Replaced By: N071555124501
20
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
20
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
23
N910113012002
NUT SUPPORT TO SIDE MEMBER
23
N910112010001
NUT , Replaced By: N913023010002
26
A0009958602
CLAMPD148
26
A0009956302
CLAMPD162
35
A6294910041
BRACKET
38
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
