Mercedes A6296870214 - HALTER O 580 RHD
TRAVEGO 17 SHD 3 - ACHSER 632.012

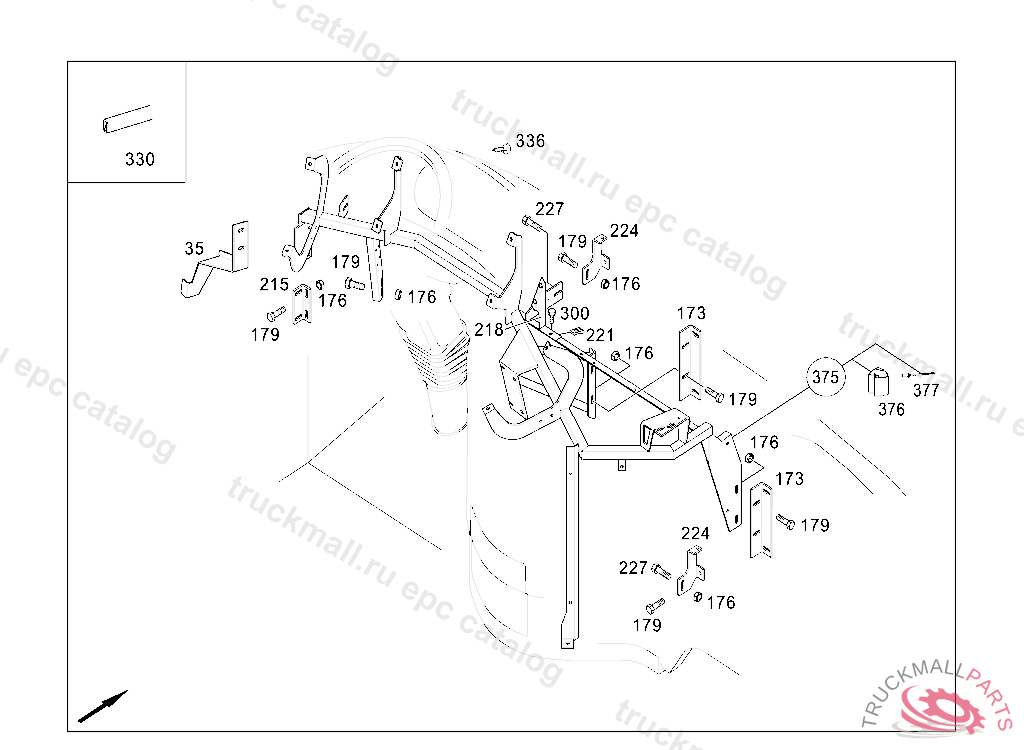

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 9
Поз.
Артикул
Описание
35
A6296871512
ANGLE
173
A6296870712
ATTACHMENT ANGLE BRACKET RIGHT BULKHEAD
176
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
179
N910105006004
SCREW , Replaced By: N914146006102
179
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
215
A6296871312
ATTACHMENT ANGLE BRACKET
218
A6296870214
BRACKET
221
A0019907291
CLIP FASTENERM5
224
A6296870319
REST FRONT
227
N910105006002
HEXAGON HEAD BOLT
300
N910105005010
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
330
A0009870772
EDGE GUARD SECTION , ORDER BY THE METER
336
N000000003498
TAPPING SCREW4.2X19
375
A6326801314
MOUNT SUPPORT STRUCTURE
375
A6296800155
BEAM SUPPORT STRUCTURE
375
A6326800214
MOUNT SUPPORT STRUCTURE
376
A3568840353
SPRING BRACKET MOUNTING
377
A0039903497
BLIND RIVET MOUNTING OF CARRIER 4X8
