TRAVEGO 17 SHD 3 - ACHSER
›
632.012
›

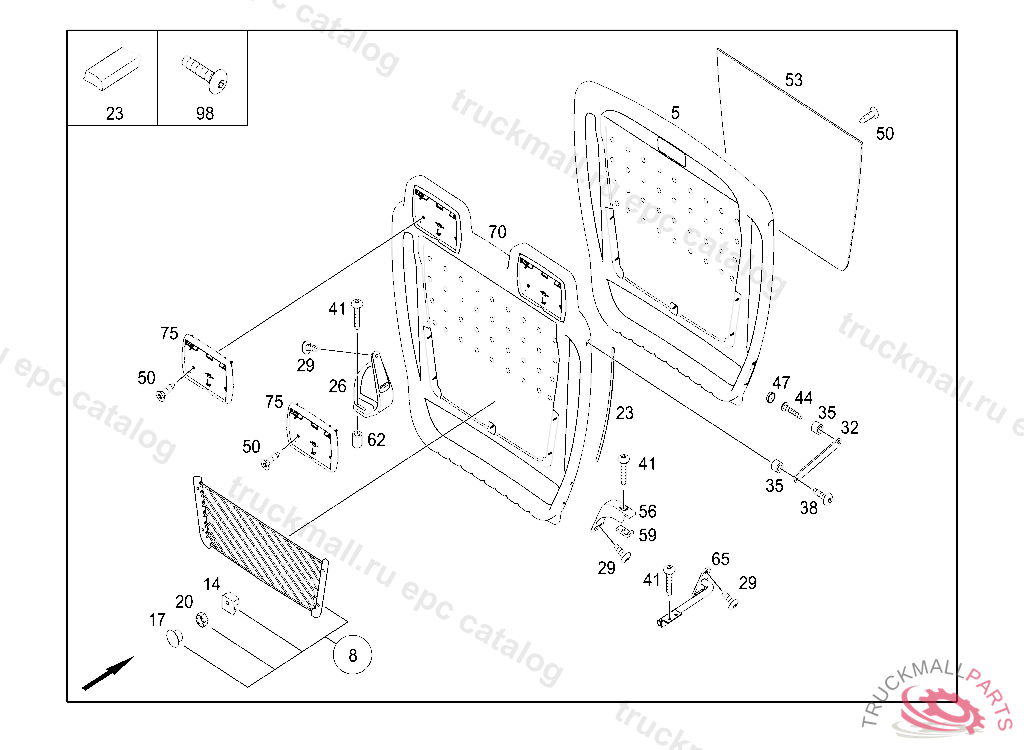

71 PARTITION PANEL
›
180 GRIP RAILS AND PARTITION PANELS
Mercedes N304032003001 - Гайка
TRAVEGO 17 SHD 3 - ACHSER 632.012
71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS
Поз.
Артикул
Описание
5
A6327110301
PARTITION PANEL
8
A6328100149
LUGGAGE NET TOTAL RANGE OF DELIVERY
8
A6298100549
LUGGAGE NET TOTAL RANGE OF DELIVERY, Replaced By: A6328100149
14
A6298110307
COVERING
17
A6299870145
LOCKING CAP
20
N304032003001
NUT BRACKET MOUNTING
23
A6299870175
GARNISH STRIP AT PARTITION PANEL, TO BE ADAPTED DURING ASSEMBLY
23
A6299870075
GARNISH STRIP AT PARTITION PANEL, TO BE ADAPTED DURING ASSEMBLY
26
A6297110045
STAY
29
A0009901129
SCREWM 8X22, T40
32
A6297110612
ANGLE
35
A0009912740
SPACER BUSH15X9X11LG.
38
A0009901629
SCREW, SPECIAL SHAPEM8X28
41
A0009901729
SCREWM8X40
44
A0009901429
SCREWM 6X35
47
A6297110090
CAPD18 MM
50
Q0011032202
SHEET METAL SCREW3,9X16MM
53
A6297100018
PANELLING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
56
A6297110145
STAY
59
A6297110012
ANGLE
62
A0003280053
SPACER TUBE
98
A0039902312
SCREW
