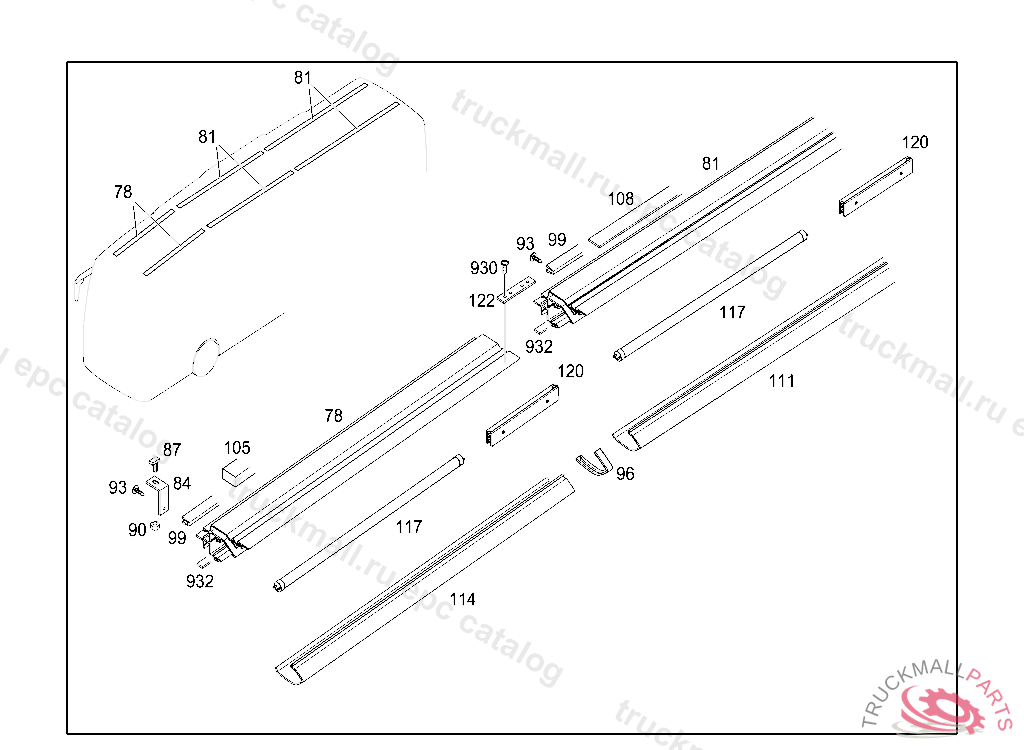

Поз.
Артикул
Описание
78
PANELLING FRONT RIGHT 1583,4MM
78
PANELLING FRONT LEFT 1583,4MM
81
PANELLING LEFT REAR 5815MM
81
PANELLING CENTRAL LEFT L4335MM
81
PANELLING FRONT RIGHT 4335MM
81
PANELLING REAR RIGHT L5815MM
84
ANGLE
87
SCREW F CRANKCASEM8X30
90
NUT HORN TO BRACKET M8
93
HEXALOBULAR BOLT SPLASH GUARD M6X16,V 207570
96
COVERING
99
RAIL
105
INSULATION FRONT
108
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
111
LIGHT STRIP REAR RIGHT
111
COVER LEFT REAR
114
LIGHT STRIP. COVERING FRONT RIGHT
114
LIGHT STRIP. COVERING FRONT LEFT
117
FLUORESCENT TUBE YELLOW 28W,1149MM,WARM-WHITE
117
FLUORESCENT TUBE YELLOW 35W,1449MM,WARM-WHITE
117
FLUORESCENT TUBE WHITE 35W,1449MM,COOL-WHITE
117
FLUORESCENT TUBE WHITE 28W,1149MM,COOL-WHITE
120
SERIES REACTOR35W
120
SERIES REACTOR28W
122
PAD15X70MM
930
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
932
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
