Mercedes A0009108438 - VARSTS

TRAVEGO 17 SHD 3 - ACHSER 632.012

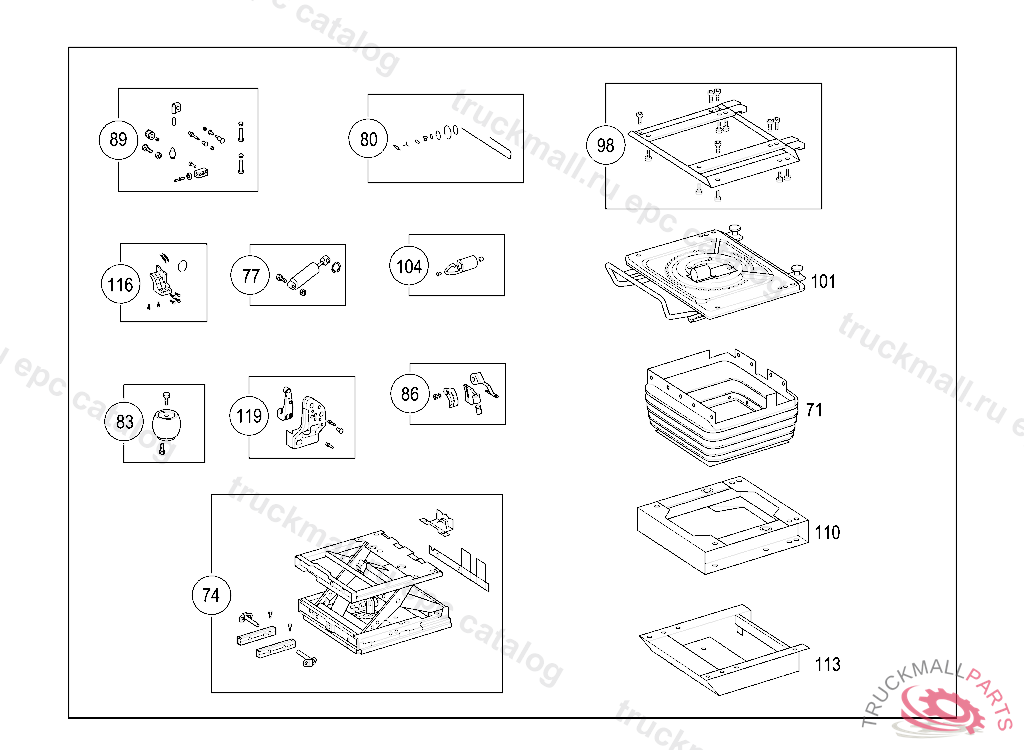

91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT IL. 3

Поз.
Артикул
Описание
71
A0009111594
BELLOWS
71
A0009110194
BELLOWS SWITCH FOR SEAT ADJUSTMENT,LEFT
74
A0019141401
SWINGING FRAMEWORK
74
A0019141501
SPRING CORE
74
A0009140737
SEAT SUSPENSION ELEMENT
74
A0009100253
SWINGING FRAMEWORK
74
A0009140837
SEAT SUSPENSION ELEMENT
77
A0029804664
SHOCK ABSORBER VERTICAL,ADJUSTABLE
80
A0005501259
HOSE ASSEMBLY
80
A0039975352
HOSE REPAIR KIT
83
A0008001136
SPRING AIR SPRING
86
A0009105336
SEAT ADJUSTER , Replaced By: A0009108736
86
A0009108736
HEIGHT ADJUSTMENT. SEAT ADJUSTER SELF-LEVELLING DEVICE
89
A0009100699
REPAIR KIT (WEARING PARTS KIT)
98
A0009101357
CONSOLE
101
A0009101457
ROTATING ADAPTER ROTATING DEVICE
104
A0008004572
CYLINDER PNEUMATIC CYLINDER
110
A6289110431
CONSOLE
110
A6289110331
CONSOLE FOR DRIVER SEAT,ROTATING
113
A6279110031
CONSOLE
113
A6279110431
CONSOLE
116
A0009108838
VALVE
116
A0009109438
VALVE
116
A0009108438
VALVE , Replaced By: A0009108838
119
A0009903099
REPAIR KIT. ATTACHMENT REPAIR KIT: ADJUSTMENT OF SEAT SQUAB INCLINATION
999
A0009830615
CORD
999
A6299190082
WASHER
999
A6299190092
CLIP
999
N000000002862
EYELET
