Mercedes A0006830006 - MONTAGERAHMEN

TRAVEGO 17 SHD 3 - ACHSER 632.012

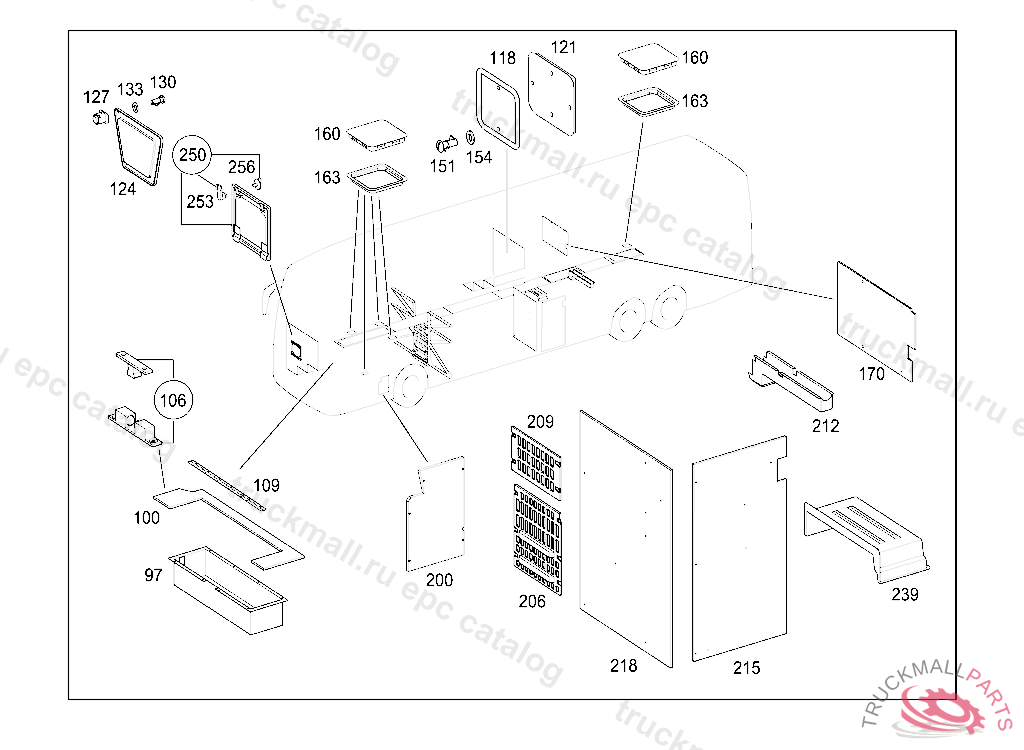

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
97
A6326800258
SHEET-METAL PAN
100
A6326841664
FLOOR FLAP
106
A0009883063
SNAP LOCK
109
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
109
A0006840052
HINGE PLATE
118
A0006840018
COVER ABS
121
A6326802607
COVER PROTECTIVE PLATE
124
A6296860010
PANELLING PANE WIPER
127
A0019886142
FASTENER
130
A0009915807
PIVOT PIN
133
A0039908740
WASHER6 MM
133
A0009911195
FASTENING CLIP
151
A0006830212
FASTENER SUPERFIX
154
N000125008445
WASHER PUMP TO CONSOLE
160
A0006800323
SERVICING COVER
163
A0006830006
FRAME
170
A6326840126
COVER UREA PUMP
200
A6326820216
COVERING
206
A6296860407
COVERING CROSS MEMBER 4
209
A6296860707
COVERING AT CROSS MEMBER 4
212
A6326840777
COVER WATER PIPES
212
A6326840277
PANELLING WATER PIPES, UNTIL PRODUCTION BREAKPOINT DATE 03.08.2005
215
A6326843218
COVER LUGGAGE COMPARTMENT, AS OF PRODUCTION BREAKPOINT DATE 30.11.2006
215
A6326840018
COVERING LUGGAGE COMPARTMENT, UNTIL PRODUCTION BREAKPOINT DATE 29.11.2006
218
A6326840118
COVERING LUGGAGE COMPARTMENT, UNTIL PRODUCTION BREAKPOINT DATE 29.11.2006
218
A6326843818
COVER LUGGAGE COMPARTMENT, AS OF PRODUCTION BREAKPOINT DATE 30.11.2006
218
A6326843318
COVER LUGGAGE COMPARTMENT, AS OF PRODUCTION BREAKPOINT DATE 30.11.2006
239
A6298661630
COVERING
