TRAVEGO 17 SHD 3 - ACHSER
›
632.012
›

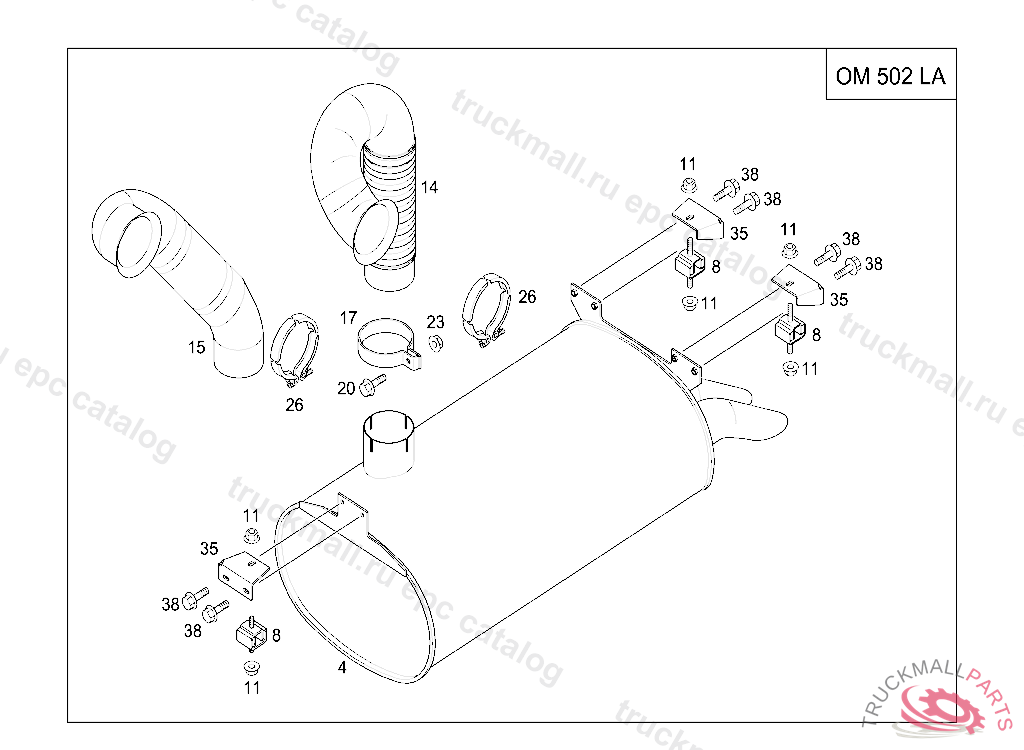

49 EXHAUST SYSTEM
›
030 EXHAUST SYSTEM IL. 1
Mercedes A0009956302 - ROHRSCHELLE / D162 1
TRAVEGO 17 SHD 3 - ACHSER 632.012
49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 1
Поз.
Артикул
Описание
4
A6294910700
MUFFLER
8
A0004910285
RUBBER MOUNTING
11
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
14
A6294900810
EXHAUST PIPED120, Replaced By: A6294901910
14
A6294901910
EXHAUST PIPE , Replaced By: A6294902310
15
A6294902310
EXHAUST PIPE
17
A6554920140
CLAMP , Replaced By: N071555124501
17
A0004921240
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
17
A6294910040
CLAMP
20
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
20
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
23
N910113012002
NUT SUPPORT TO SIDE MEMBER
23
N910112010001
NUT , Replaced By: N913023010002
26
A0009958602
CLAMPD148
26
A0009956302
CLAMPD162
35
A6294910041
BRACKET
38
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
