Поз.
Артикул
Описание

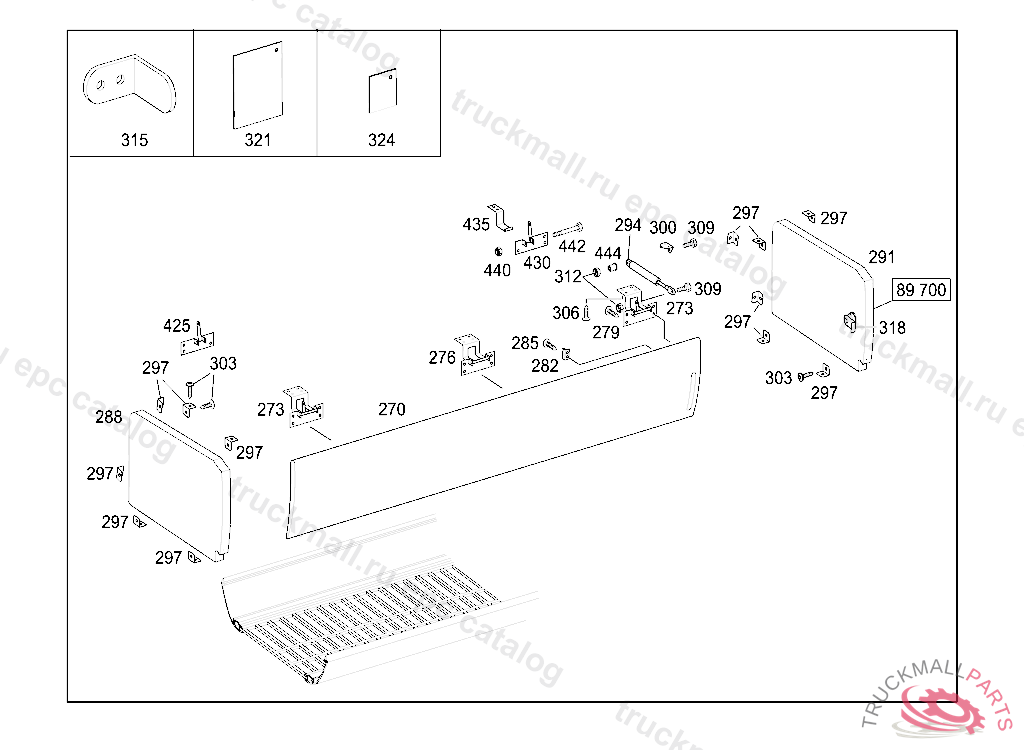

270
FLAP
273
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.12.2007
276
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.12.2007
279
HEXALOBULAR BOLT. SCREW
282
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.02.2008
282
BRACKET AT FLAP
285
TAPPING SCREW2,9X9,5
288
COVERING LEFT
291
COVERING RIGHT
294
GAS SPRING. SPRING
294
SPRING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.12.2007
297
ANGLE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.12.2010
297
ANGLE
300
BRACKET PNEUMATIC SPRING TO BODY
303
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
306
SHEET METAL SCREW BRACKET TO FIRE WALL
309
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
309
HEXALOBULAR BOLTM5X12
312
NUT BRACKET TO FIRE WALL
312
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
315
BRACKET , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.12.2010
318
LATCH PLATE. FASTENER
318
LATCH TONEUE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.02.2008
321
PLATE90X100MM
324
PLATE50X50MM
425
BRACKET RIGHT
430
BRACKET LEFT
435
BRACKET , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.11.2007
440
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
442
HEXALOBULAR BOLT. SCREW DECLUTCHING START SWITCH TO BRACKET
444
BLIND RIVET FLAP TO BODY
999
COVER , AS OF PRODUCTION BREAKPOINT DATE 16.02.04
