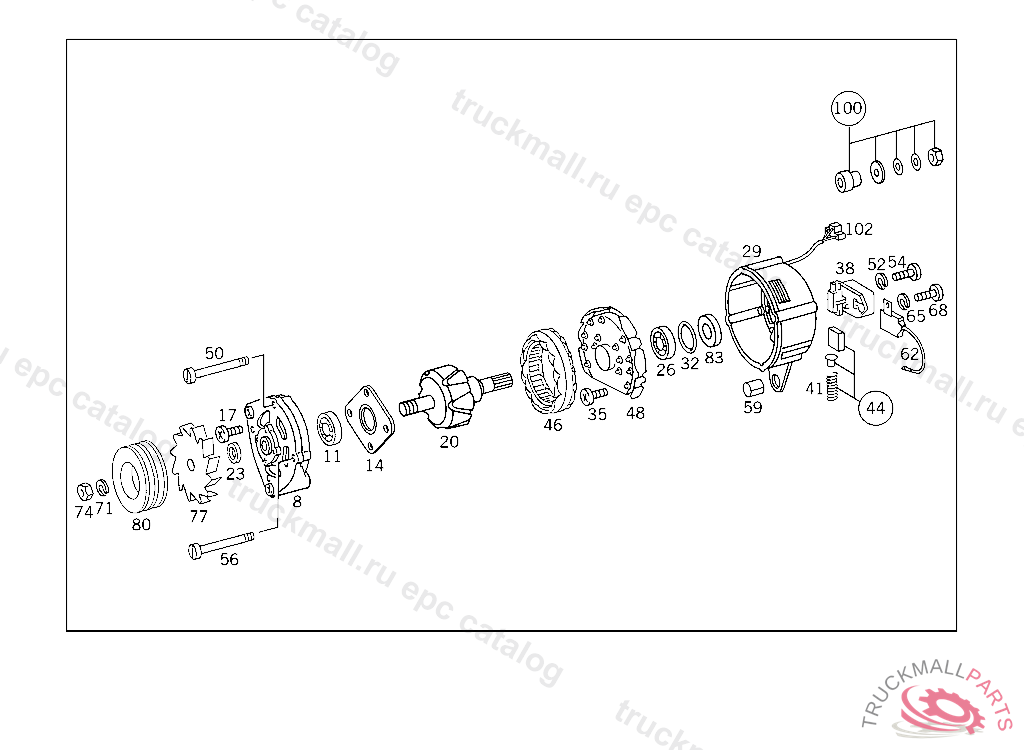

Поз.
Артикул
Описание
8
BEARING COVER
11
TAPERED ROLLER BEARING
11
TAPERED ROLLER BEARING , Replaced By: A0149817705
14
COVER
17
SCREW , Replaced By: A0009908330
20
ROTORTO 001 154 01 01
20
ROTORTO 001 154 00 01
23
GASKET , Replaced By: A0001540062
23
THRUST WASHERTO 001 154 01 01
26
BALL BEARINGTO 004 154 75 02
29
COVERTO 001 154 00 01
29
COVERTO 001 154 01 01
32
SEAL RING
35
SCREW
38
REGULATOR AND CUT-OUT
41
SPRING
44
CARBON BRUSH SETTO 001 154 00 01
44
CARBON BRUSH SETTO 001 154 01 01
44
CARBON BRUSH SET , Replaced By: A0001549914
46
COIL , Replaced By: A0001548825
46
COILTO 001 154 00 01
46
COILTO 345 154 71 01
48
RECTIFIERTO 001 154 00 01
48
RECTIFIERTO 001 154 01 01
50
SCREWTO 007 154 06 02,007 154 07 02
50
SCREW
52
LOCK WASHER
54
SCREWTO 001 154 01 01
54
SCREWTO 376 150 80 50
56
SCREW
59
BUSHING ,502817
59
BUSHING ,502818
62
PIN
65
LOCK WASHERTO 376 150 74 50
68
SCREW CONDENSER TO ALTERNATOR
71
LOCK WASHER ,530895
74
NUT
74
NUT , Replaced By: A0049909851
74
NUT BELT PULLEY TO GENERATOR TO A 011 154 35 02
77
FAN
77
FAN ,822957
80
PULLEY ,530896
80
PULLEY ,530895
83
SEAL RING
100
INSULATOR PARTS KIT
102
ELECTRIC CABLETO 001 154 01 01
999
PARTS KIT SCREW
999
CLAMPING BOLT SCREW,530896
