Главная
›
Mercedes
›
VAN
›
VITO 108 CDI, 110 CDI 112 CDI, 113, 114
›
638.094 TO IDENT-NR. 246705
›
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›

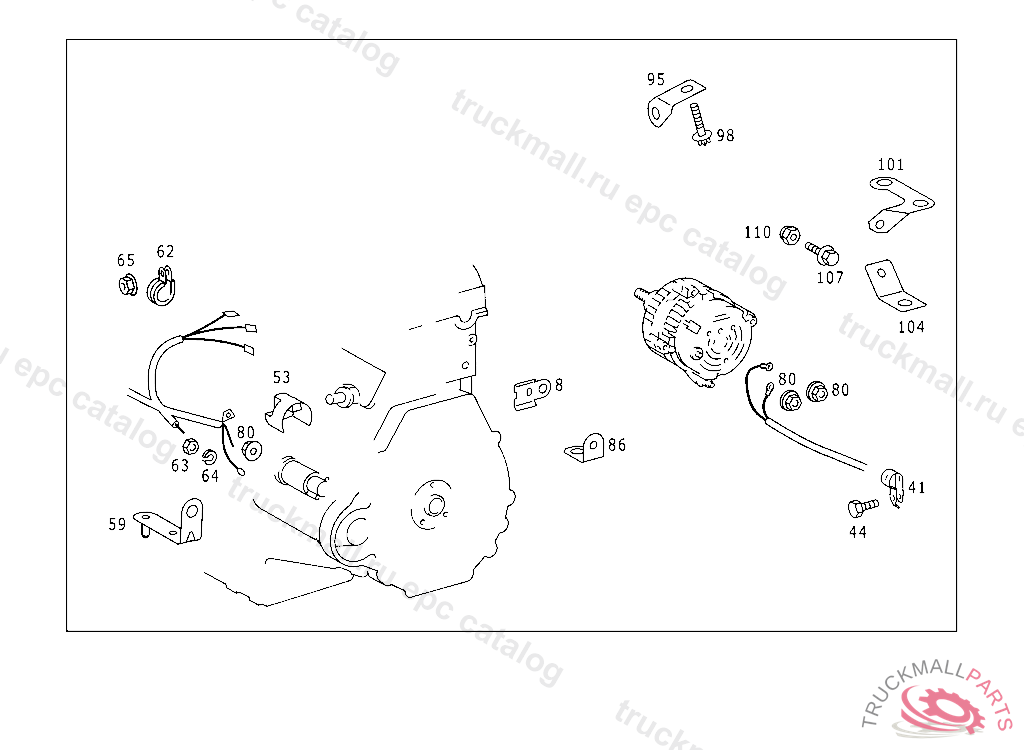

070 BATTERY,MOUNTING,AND BATTERY CABLES IL. 2
Mercedes N912004008102 - Кольцо стопорное
VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 TO IDENT-NR. 246705
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 070 BATTERY,MOUNTING,AND BATTERY CABLES IL. 2
Поз.
Артикул
Описание
8
A0005469843
41
A0019954301
CLAMP
44
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
44
N910143006012
SCREW BRACKET MOUNTING M6X10
53
A6015420081
GROMMET STARTING CABLE TO STARTING MOTOR
59
A6385400740
BRACKET BATTERY CABLE TO CLUTCH BELL
62
N916016028204
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
63
N304032008006
NUT
64
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
80
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
80
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
80
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
80
N913023008003
NUT HORN TO BRACKET M8
86
A9015460243
BRACKET AT CLUTCH BELL, P 503835 R 000001
95
A1031591140
BRACKET MICRO-SWITCH CABLE TO FUEL THERMOSTAT
98
A0019907922
SCREW STARTING CABLE TO ENGINE
