Mercedes A6383120366 - НАКЛЕЙКА

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 TO IDENT-NR. 246705

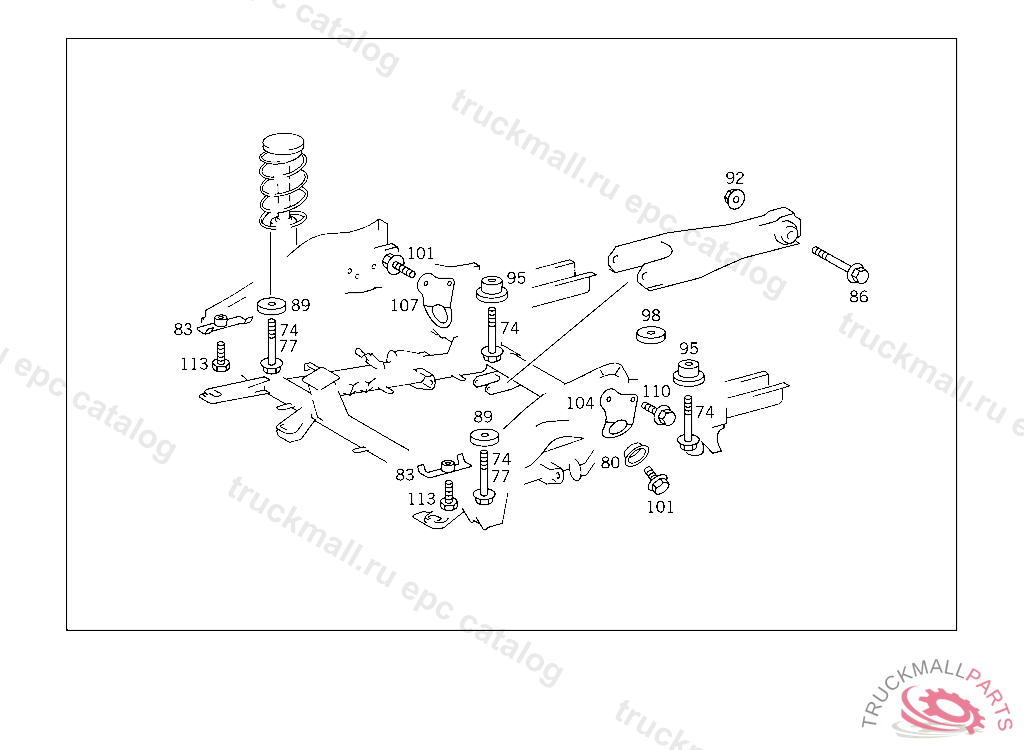

31 FRAME - 150 FRONT FRAME AREA IL. 3

Поз.
Артикул
Описание
74
N910105014014
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 140
74
N910105014019
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
77
N910105014004
SCREW SUPPORT TO FRAME M 14X1.5X160
77
N910105014033
80
A6383170035
BUFFER PLATE
83
A6383101609
BRACKET
86
N910105012017
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
89
A6383170036
STOP FRONT
92
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
95
A6383170136
STOP REAR
98
A6383170436
101
N910105014007
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
104
A6383120266
SHACKLE LEFT
107
A6383120366
SHACKLE RIGHT
110
N910105012003
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
113
N308676014008
SCREW MOUNTING TO CONSOLE M 14X35
113
N000961014050
SCREW , Replaced By: N308676014020
