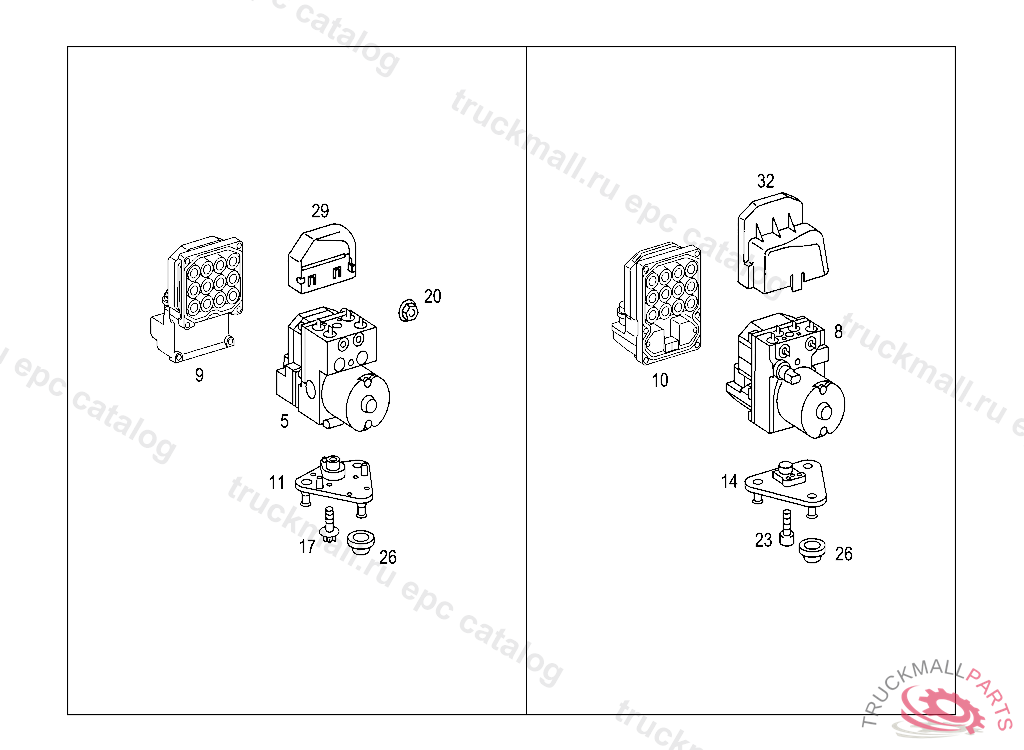

Mercedes A6385450183 - КРЫШКА

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 TO IDENT-NR. 246705
42 BRAKES - 570 ABS AND ASR
  • Поз.
    Артикул
    Описание
  • 5
  • 8
  • 8
  • 9
  • 10
  • 10
  • 11
    BRACKET HYDRAULIC UNIT BOSCH, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808 A 809594 F 894083 EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM A 809595, F 894084 WITH CODE 809
  • 14
  • 17
    SCREWBOSCH ( M10X1X30 ), A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
  • 20
    HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
  • 23
    SCREW , Replaced By: A0009847929
  • 26
    ELASTOMER BEARING. RUBBER BUFFER HYDRAULIC UNIT TO BRACKET, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
  • 29
  • 32
    CAP
