Mercedes A6389930401 - Пружина

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 TO IDENT-NR. 246705

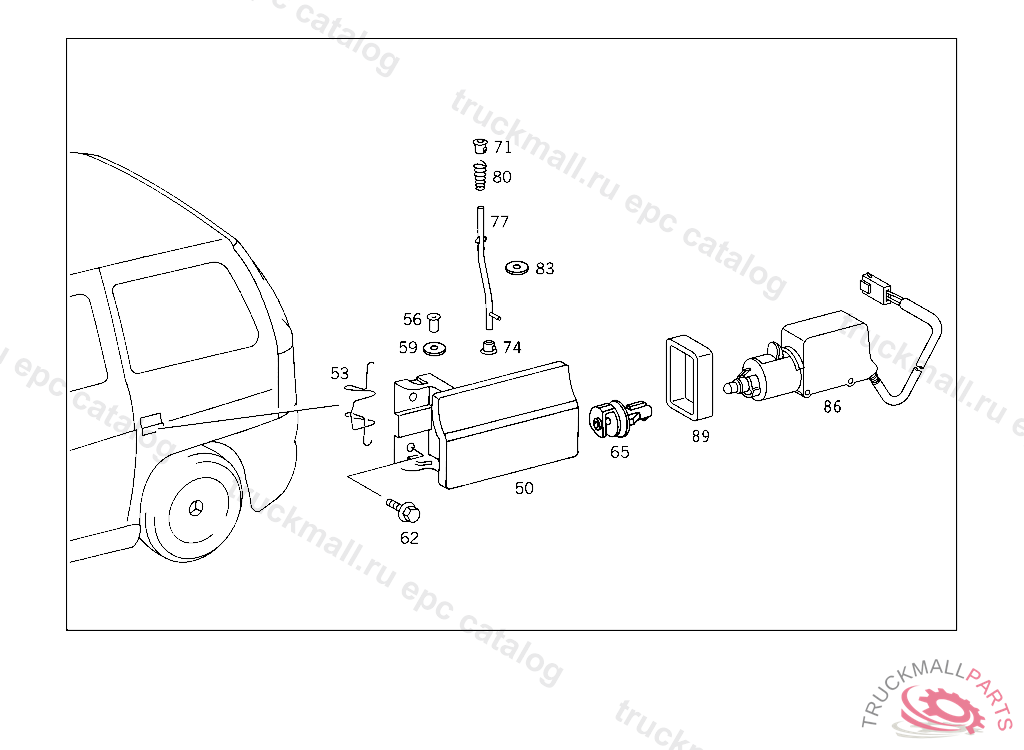

63 SIDE PANELS - 420 LEFT SIDE PANELLING IL. 3

Поз.
Артикул
Описание
50
A6387500303
FLAP FUEL FILLING,157353
53
A6387580036
SPRING
56
A1239910007
PIN TANK FLAP
59
A0009949645
LOCK. CLIP LICENSE PLATE FLAP
62
N000000000470
SCREW-AND-WASHER ASSEMBLY FLAP TO SIDE PANEL M5X16
65
A6388200029
STAY
65
A2108000079
GUIDE FILLER NECK RECESS, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
71
A6389971781
GROMMET
74
A6389972281
GROMMET
77
A6387520120
THRUST ROD WITH LOAD COMPARTMENT SLIDING DOOR, LH,157353
80
A6389930401
SPRING
83
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
86
A6388200072
LOCKING MECHANISM TANK FLAP
89
A6389870643
