Mercedes N910105008005 - БОЛТ М8

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 TO IDENT-NR. 246705

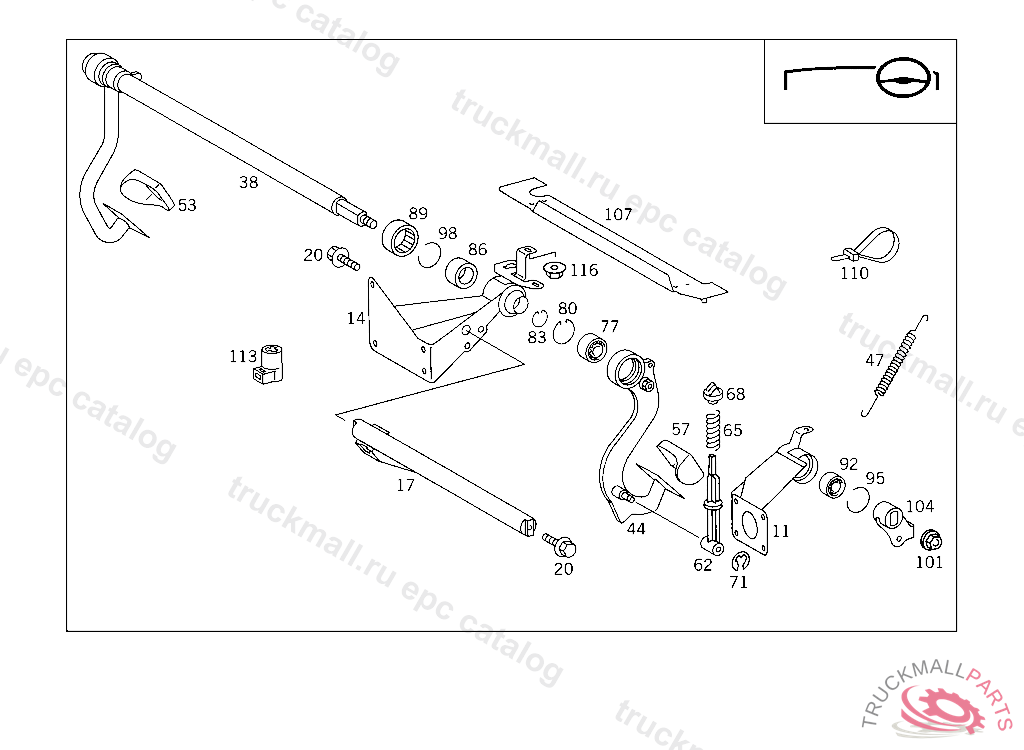

29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 2

Поз.
Артикул
Описание
11
A6382900819
14
A6382901119
14
A6382901319
17
A6382900153
20
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
38
A6382900218
44
A6382900016
47
A6389930410
SPRING PEDAL RETURN SPRING TO 638 290 02 18,03 18,901 290 05 18
53
A2012920082
PAD BRAKE PEDAL
53
A3192920082
COVERING. PAD CLUTCH AND BRAKE
57
A3192920082
COVERING. PAD CLUTCH AND BRAKE
62
A2012910633
ROD
65
A1249932401
SPRING OVER-CENTER ACTING SPRING TO 1242900419, 201.022,023,024,12610/20A 216887 201.12210/20A 218857 201.023,024, 12/22A 216472 201.122,12612/22A 216472 10/20 F 135528 12/22 F 133742
68
A1232910491
SPRING RETAINER OVER-CENTER ACTING SPRING
71
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
77
A6389810325
80
N912009047200
SNAP RING
83
N912009035100
SNAP RING RELEASE LEVER TO SHAFT
86
A0029813881
89
A0189813310
92
N000625406305
GROOVED BALL BEARING
95
N000472062000
LOCK RING
98
N912009035100
SNAP RING RELEASE LEVER TO SHAFT
101
N913023014005
NUT REINFORCEMENT ANGLE AND GUSSET PLATE TO FRAME
104
A6382900225
107
A6385400640
110
A0019978390
LOOM TIE LINE MOUNTING 280 MM
113
A6389971890
CABLE STRAP HOLDER. LOOM TIE
116
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
