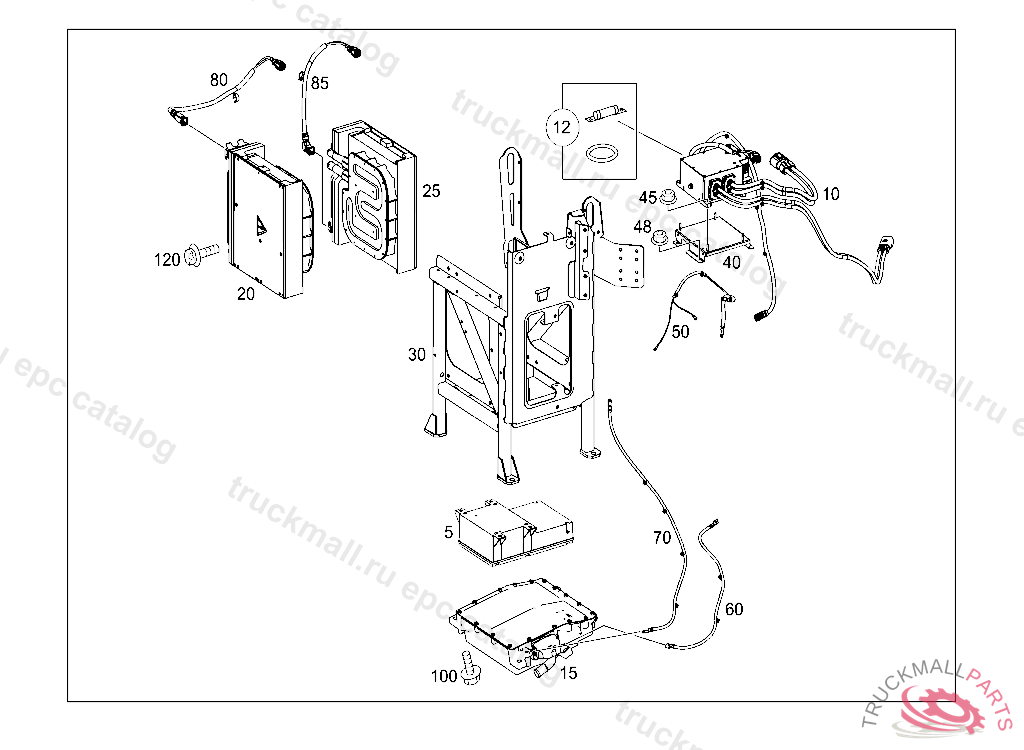

Поз.
Артикул
Описание
5
CONTROL UNIT LOAD COMMUNICATION
10
ELECT. DISTRIBUTOR PANEL HIGH-VOLTAGE,365569120110427
10
ELECT. DISTRIBUTOR PANEL ,365569020110427
12
RS DISTRIBUTOR PANEL
15
VOLTAGE CONVERTER
20
BATTERY CHARGERNO.1,371733320120217
20
BATTERY CHARGERNO.1,375407520120217
20
BATTERY CHARGERNO.1,375407520120217, Replaced By: A6399820321
25
BATTERY CHARGERNO.2,375407520120217, Replaced By: A6399820421
25
BATTERY CHARGERNO.2,375407520120217
25
BATTERY CHARGERNO.2,375407620120217
30
BRACKET IMPLEMENT FIXTURE
40
BRACKET FASTENING, VOLTAGE DISTRIBUTOR
45
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
48
NUT BRACKET TO BODY SHELL M6
50
GROUND LINE
60
GROUND LINE VOLTAGE TRANSFORMER
70
CHARGING CABLE12V
80
CHARGING CABLE CHARGER NO.1
85
CHARGING CABLE CHARGER NO.2
100
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
120
HEXALOBULAR BOLT. SCREW
