Поз.
Артикул
Описание
5

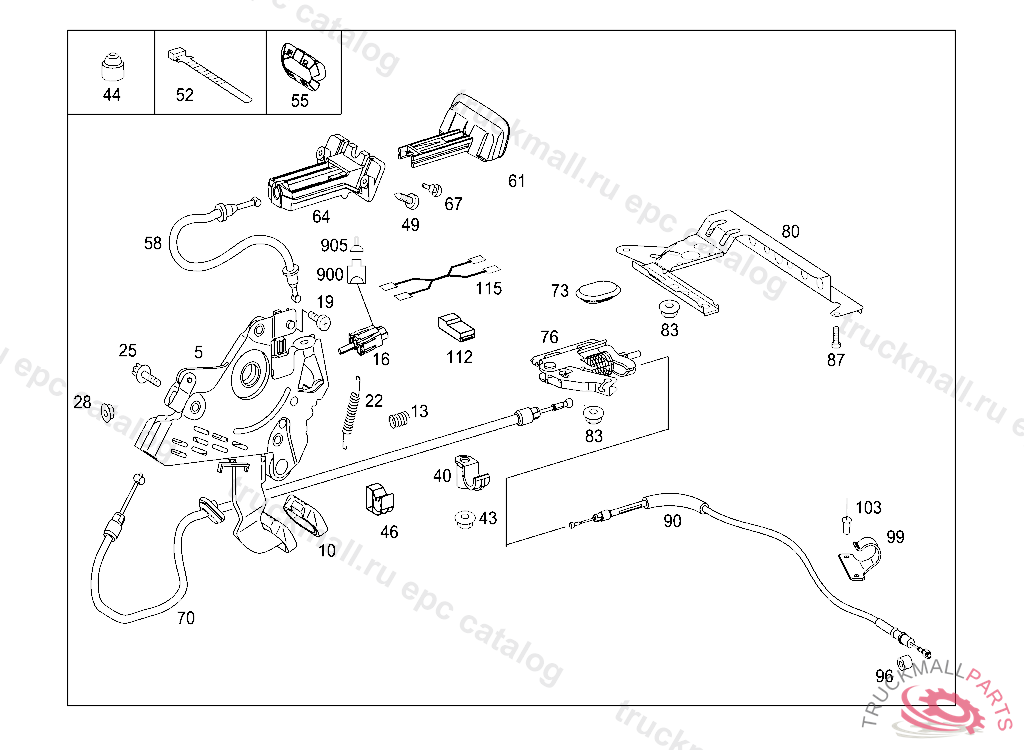

PARKING BRAKE PEDAL ASSEMBLY, 08873520040907, Replaced By: A6394201384, +001A6394400808
5
PARKING BRAKE PEDAL ASSEMBLY, 08873520040907, Replaced By: A6394201484, +001A6394400808
5
PARKING BRAKE PEDAL ASSEMBLY, 08873620040907
5
PARKING BRAKE PEDAL ASSEMBLY, 08873620040907
10
PAD PEDAL
13
PUSH SPRING
16
SWITCH HAND BRAKE CONTROL
16
SWITCH PARKING BRAKE CONTROL
19
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
22
SPRING
25
HEXALOBULAR BOLT PLATE CENTER MOUNTING M8X25
28
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
40
CLAMP LINE MOUNTING SA 088202/01
40
CLAMP
43
NUT SPRING-LOADED PUSH ROD
44
FASTENER BUTTON GROUND CABLE CONNECTION M6-SW,132407
46
END PIECE (EXPANSION VALVE) 5 MM
49
BOLT. SCREW TAKE-UP DEVICE, F 136790(COUPE) T 000731(COUPE), T 054272(CABRIO) EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE TO T 000730(COUPE), T 054271(CABRIO), F 136789(COUPE) WITH CODE 801
52
CABLE TIE310X5MM
55
EDGE PROTECTION AT CROSS MEMBER
58
BRAKE CABLE
58
BRAKE CABLE460 MM, Replaced By: A6394202585
58
BRAKE CABLE970 MM, Replaced By: A6394202685
58
BRAKE CABLE
61
HANDLE RELEASE HANDLE FOOT-OPERATED PARKING BRAKE, 7C45QFT639A1007 DEEP GREY
64
GUIDE
67
STOP ARMREST
70
BRAKE CABLE ,371607420111223
70
BRAKE CABLE
70
BRAKE CABLE ,360347120100906
70
BRAKE CABLE
70
BRAKE CABLE ,360347120100906
70
BRAKE CABLE ,371607420111223
70
BRAKE CABLE
70
BRAKE CABLE ,360347120100906, Replaced By: A6394202785
70
BRAKE CABLE ,360347120100906, Replaced By: A6394202985
73
STOP PLUG27X41MM
76
ADJUSTER
80
BRACKET ADJUSTMENT
83
NUT ENGINE MOUNTING M8
87
HEXALOBULAR BOLTM8X16
90
BRAKE CABLE LEFT
90
BRAKE CABLE LEFT
90
BRAKE CABLE RIGHT,360347120100831
90
BRAKE CABLE RIGHT
90
BRAKE CABLE LEFT, Replaced By: A6394203585
90
BRAKE CABLE RIGHT,360347120100831, Replaced By: A6394203685
96
CYLINDER PIN. PIN
99
BRACKET BRAKE CABLE
103
RIVET REFLECTOR TO BRACKET
112
INSULATING SLEEVETO 000 546 43 40
115
WIRING HARNESS PARKING BRAKE ADAPTER LINE, 08873520040908
900
PLUG HOUSING UNIPOLAR
905
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.5 MM2
905
FLAT PLUG. FLAT PIN BUSHING WITH DETENT 1.5-2.5 MM2
905
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
905
FLAT PLUG. FLAT PIN BUSHING PARKING BRAKE SWITCH
905
FLAT PLUG TERMINAL. PLUG SOCKET4.00 MM2
905
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 1.0-2.5 MM2
905
FLAT PIN BUSHING6 MM2
