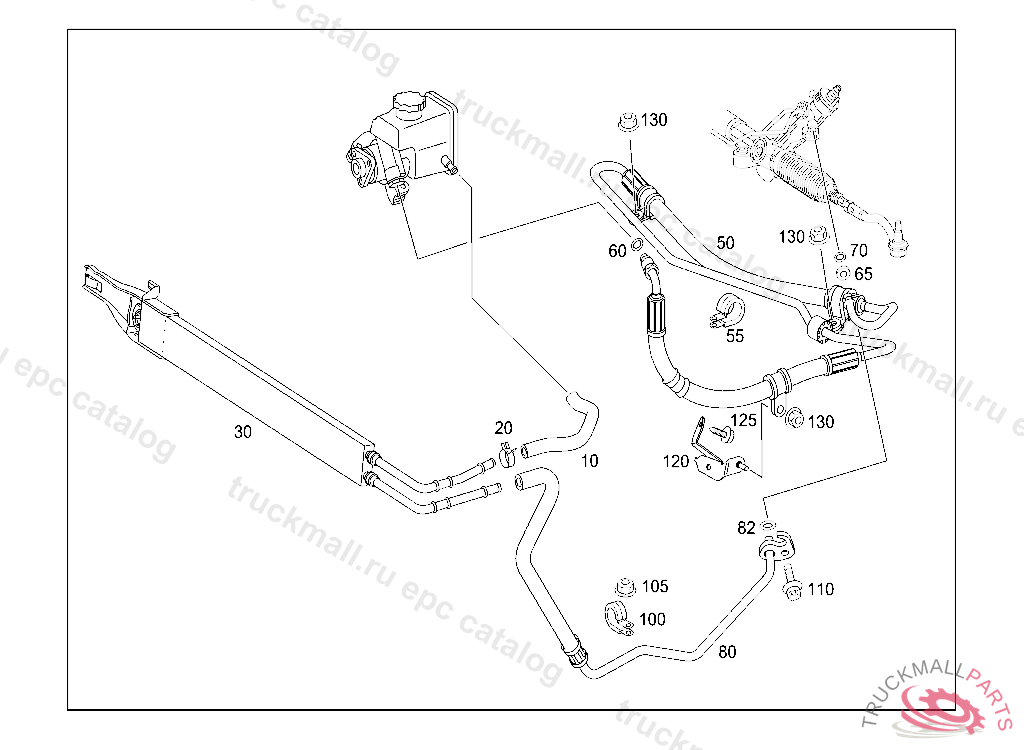

Поз.
Артикул
Описание
10
HOSE FROM COOLING PIPE TO PUMP
10
HOSE FROM COOLING PIPE TO PUMP
10
MOLDED HOSE FROM COOLING PIPE TO PUMP
20
CLAMP ENGINE RETURN LINE 12-18X9 MM
30
COOLING PIPE TO COOLING MODULE
30
COOLING PIPE TO COOLING MODULE
30
COOLING PIPE TO COOLING MODULE
30
COOLING PIPE TO COOLING MODULE
50
LINE FROM PUMP TO STEERING
50
HIGH-PRESSURE OIL LINE FROM PUMP TO STEERING
50
LINE FROM PUMP TO STEERING
50
HIGH-PRESSURE OIL LINE FROM PUMP TO STEERING
50
LINE FROM PUMP TO STEERING
50
LINE FROM PUMP TO STEERING
50
HIGH-PRESSURE OIL LINE FROM PUMP TO STEERING
50
LINE FROM PUMP TO STEERING
55
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
60
SEAL RING HIGH-PRESSURE HOSE ON STEERING 7.65 X 1.63 MM
65
SUPPORT RING HIGH PRESSURE LINE TO STEERING, A 83219320050630 E 02000020070101
70
O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
80
LOW-PRESSURE OIL LINE CONNECTOR STEERING COOLING PIPE
80
LINE CONNECTOR STEERING COOLING PIPE
80
LINE CONNECTOR STEERING COOLING PIPE
80
LINE CONNECTOR STEERING COOLING PIPE
82
O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
100
CLAMP CABLE HARNESS MOUNTING
105
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
110
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
120
BRACKET AT CONSOLE LEFT, 32141320070427
120
BRACKET AT CONSOLE LEFT
120
BRACKET AT CONSOLE LEFT,376978720120627
125
SCREW BRACKET TO FIRE WALL
130
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
