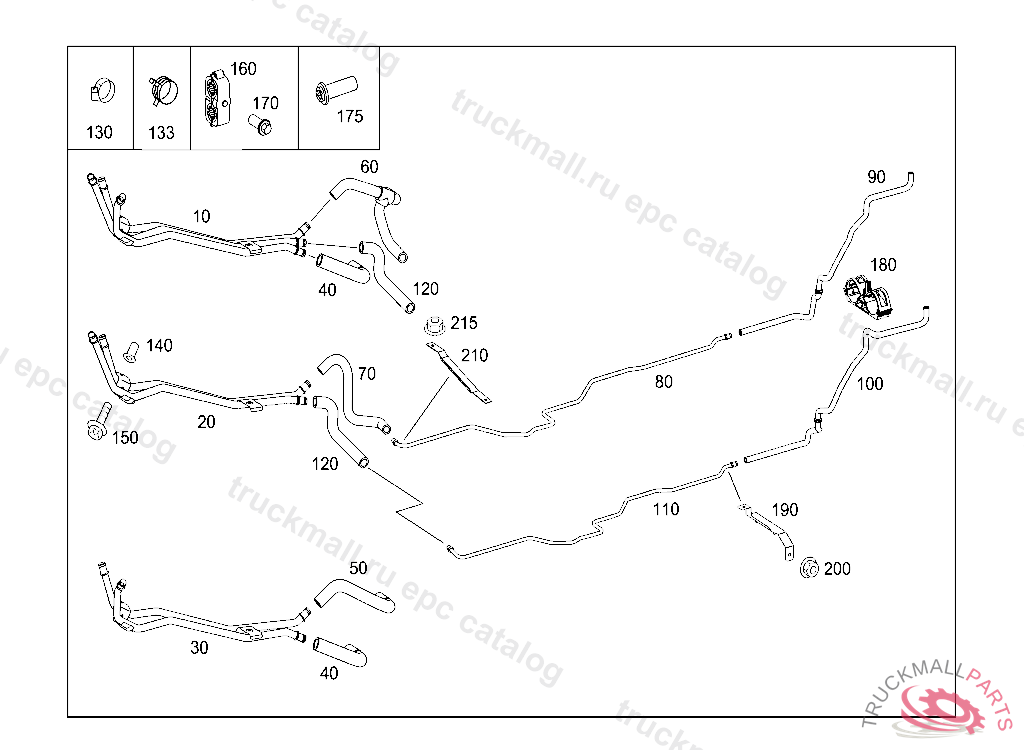

Поз.
Артикул
Описание
20
PIPELINE FRONT PIPE SYSTEM
30
PIPELINE FRONT PIPE SYSTEM
30
PIPELINE FRONT PIPE SYSTEM, Replaced By: A6398305615
40
HOSE HEATER, WATER PENETRATION
50
HOSE HEATER, WATER OUTLET
60
HOSE HEATER, WATER OUTLET
60
MOLDED HOSE HEATER, WATER OUTLET
60
MOLDED HOSE HEATER, WATER OUTLET
70
HOSE FRONT
80
PIPELINE CENTRAL
90
HOSE REAR
100
HOSE REAR
110
PIPELINE CENTRAL
120
HOSE FRONT
130
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
130
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
130
HOSE CLAMP HOSE ATTACHMENT 27 MM
130
CLAMP HOSE TO HEAT EXCHANGER 16-27 MM
133
HOSE CLAMP HOSE ATTACHMENT 27 MM
133
CLAMP25 MM
140
RIVETED NUT
150
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
160
CLAMP2X 16-19 MM
175
THREADED BUSHING CABLE HOLDER
180
CLAMP2X 23-28 MM
210
BRACKET PIPE LINE TO SIDE MEMBER
215
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
